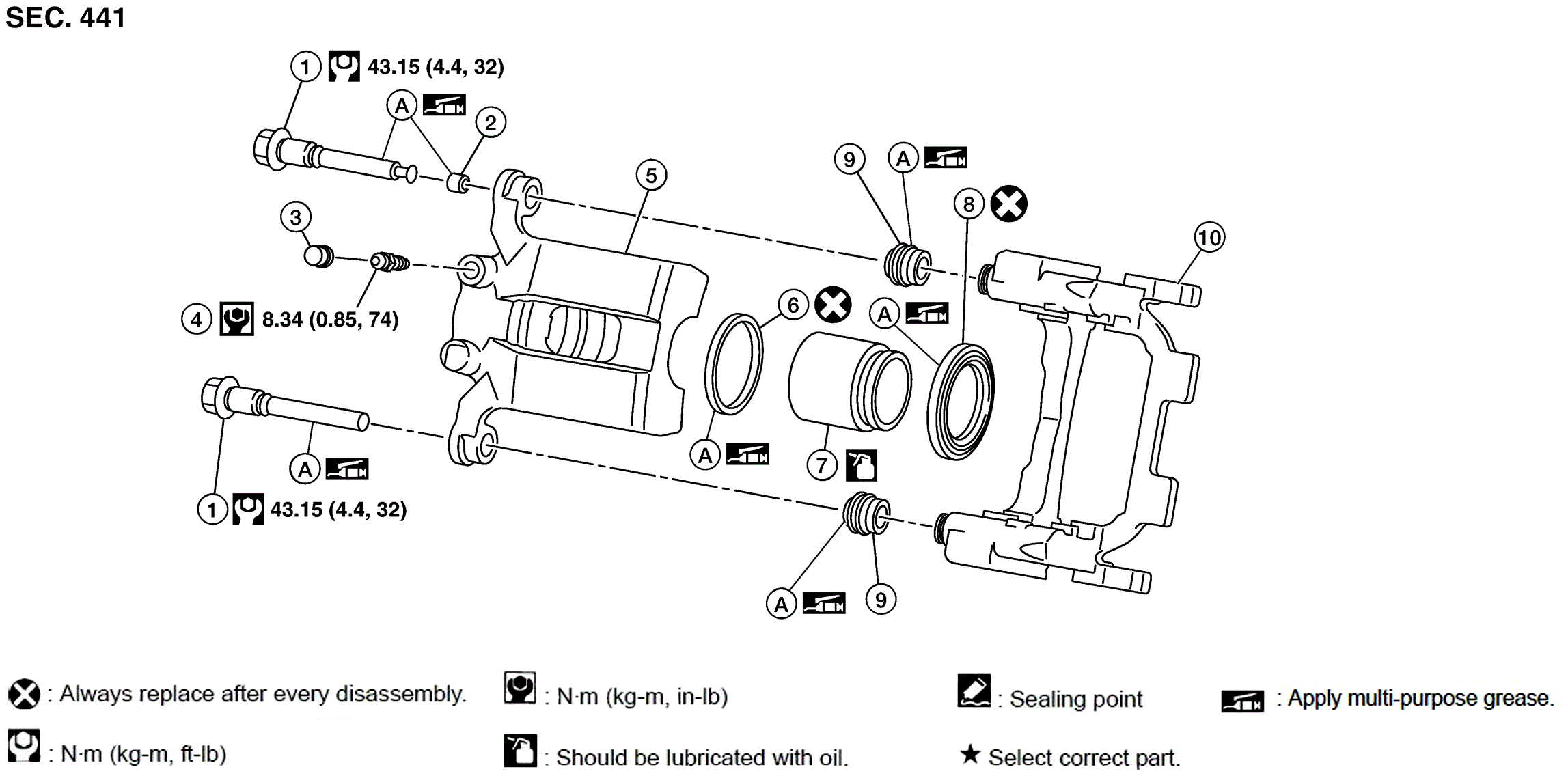

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Sliding pin bolt |
2. |
Sliding pin bolt bushing |
3. |
Cap |
| 4. |
Bleeder valve |
5. |
Brake caliper body |
6. |
Piston seal |
| 7. |
Piston |
8. |
Piston boot |
9. |
Sliding pin boot |
| 10. |
Torque member |
|
|
|
|
| A. |
Rubber grease |
|
|
|
|
 |
Apply brake fluid |
|
|
|
|
