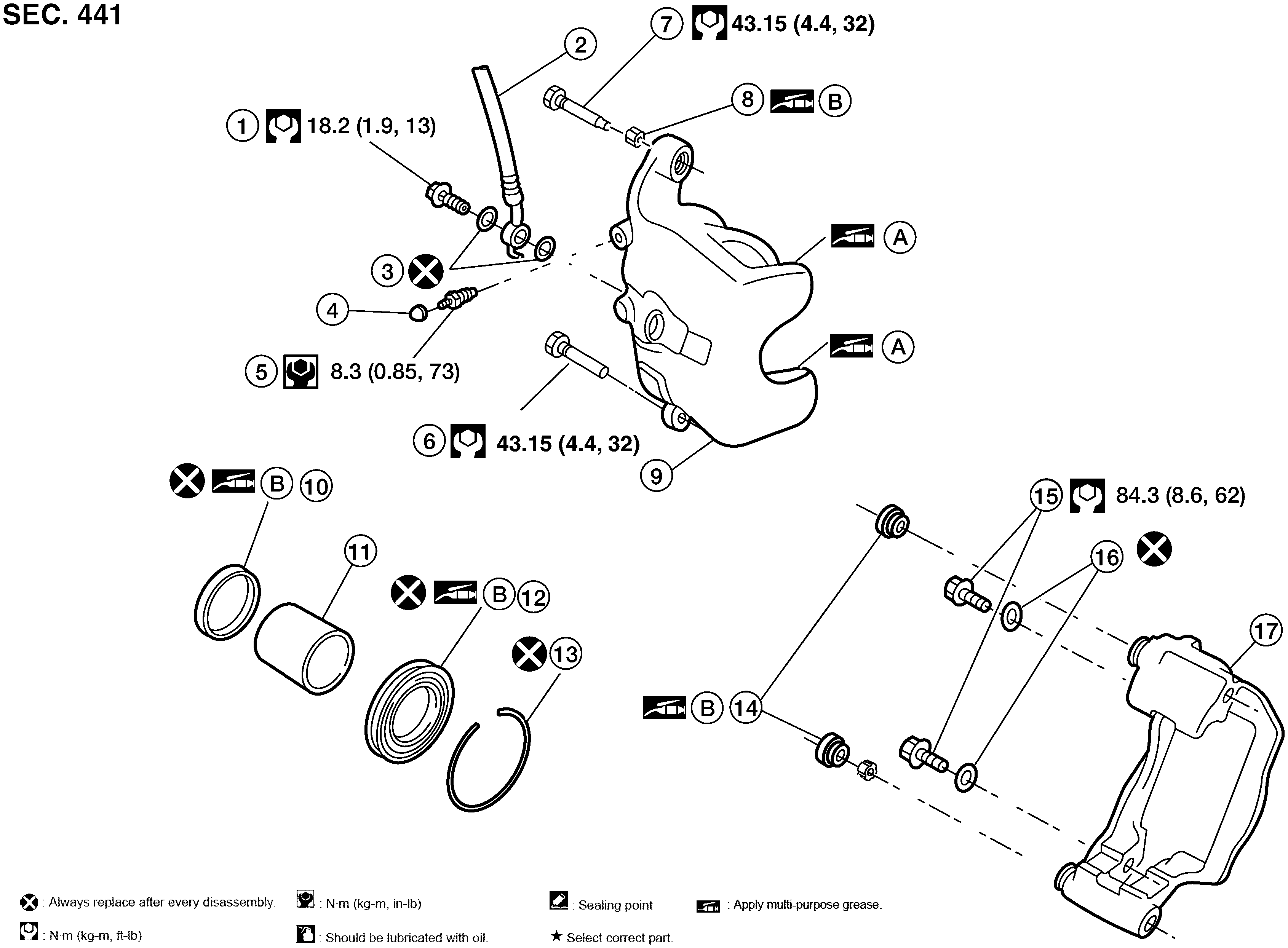

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Union bolt | 2. | Brake hose | 3. | Copper sealing washers |
| 4. | Cap | 5. | Bleeder valve | 6. | Lower sliding pin bolt |
| 7. | Upper sliding pin bolt | 8. | Upper sliding pin bushing | 9. | Brake caliper |
| 10. | Piston seal | 11. | Piston | 12. | Piston boot |
| 13. | Retaining ring | 14. | Sliding pin boot | 15. | Torque member bolt |
| 16. | Washers | 17 | Torque member | A. | Molykote AS-880N grease |
| B. | Rubber grease |
