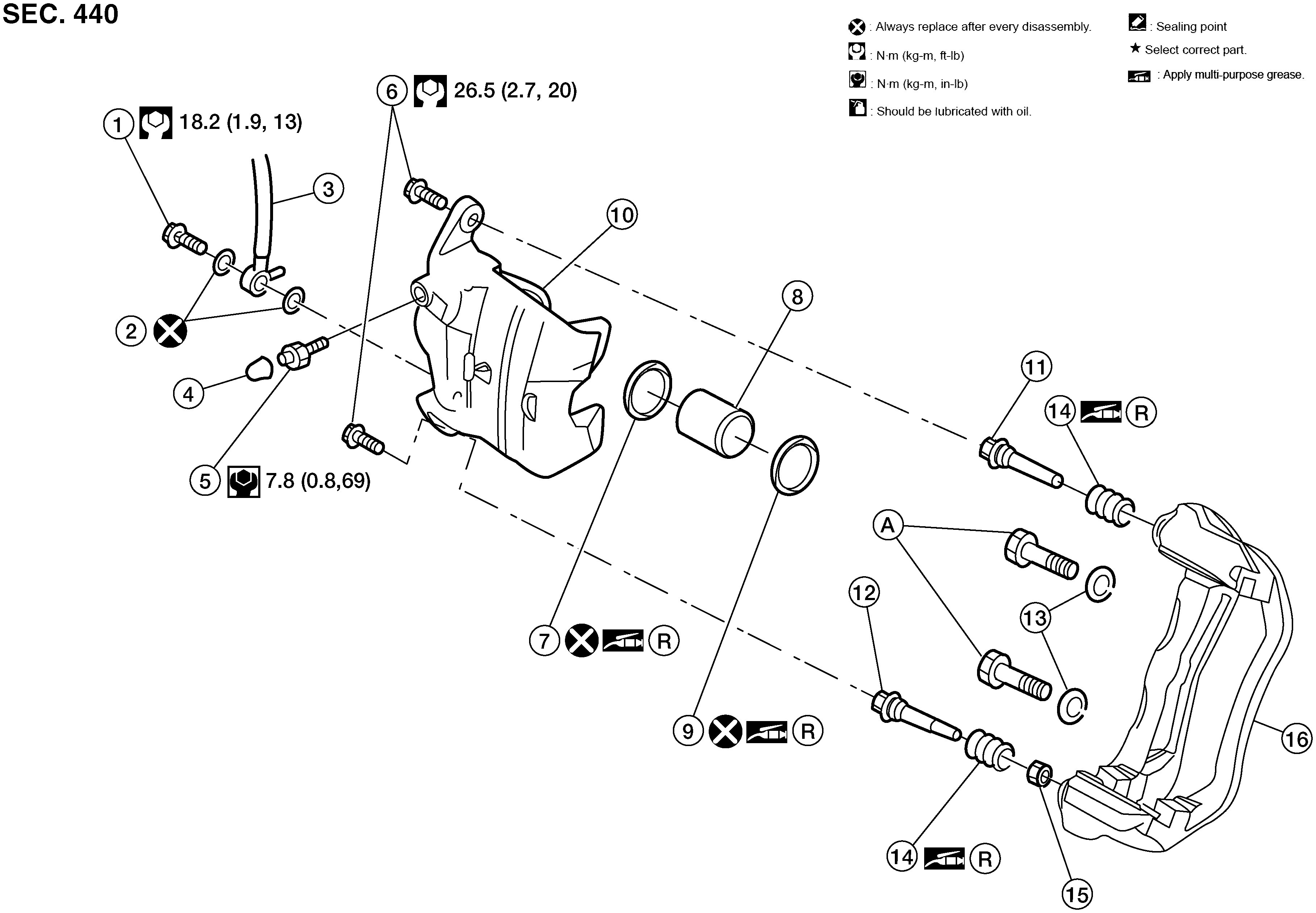

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Union bolt | 2. | Copper sealing washers | 3. | Brake hose |
| 4. | Cap | 5. | Bleeder valve | 6. | Sliding pin bolt |
| 7. | Piston seal | 8. | Piston | 9. | Piston boot |
| 10. | Brake caliper | 11. | Upper sliding pin | 12. | Lower sliding pin |
| 13. | Washers (without flange bolt) | 14. | Sliding pin boot | 15. | Lower sliding pin bushing |
| 16. | Torque member | A. | Refer to Installation | R. | Rubber grease |
