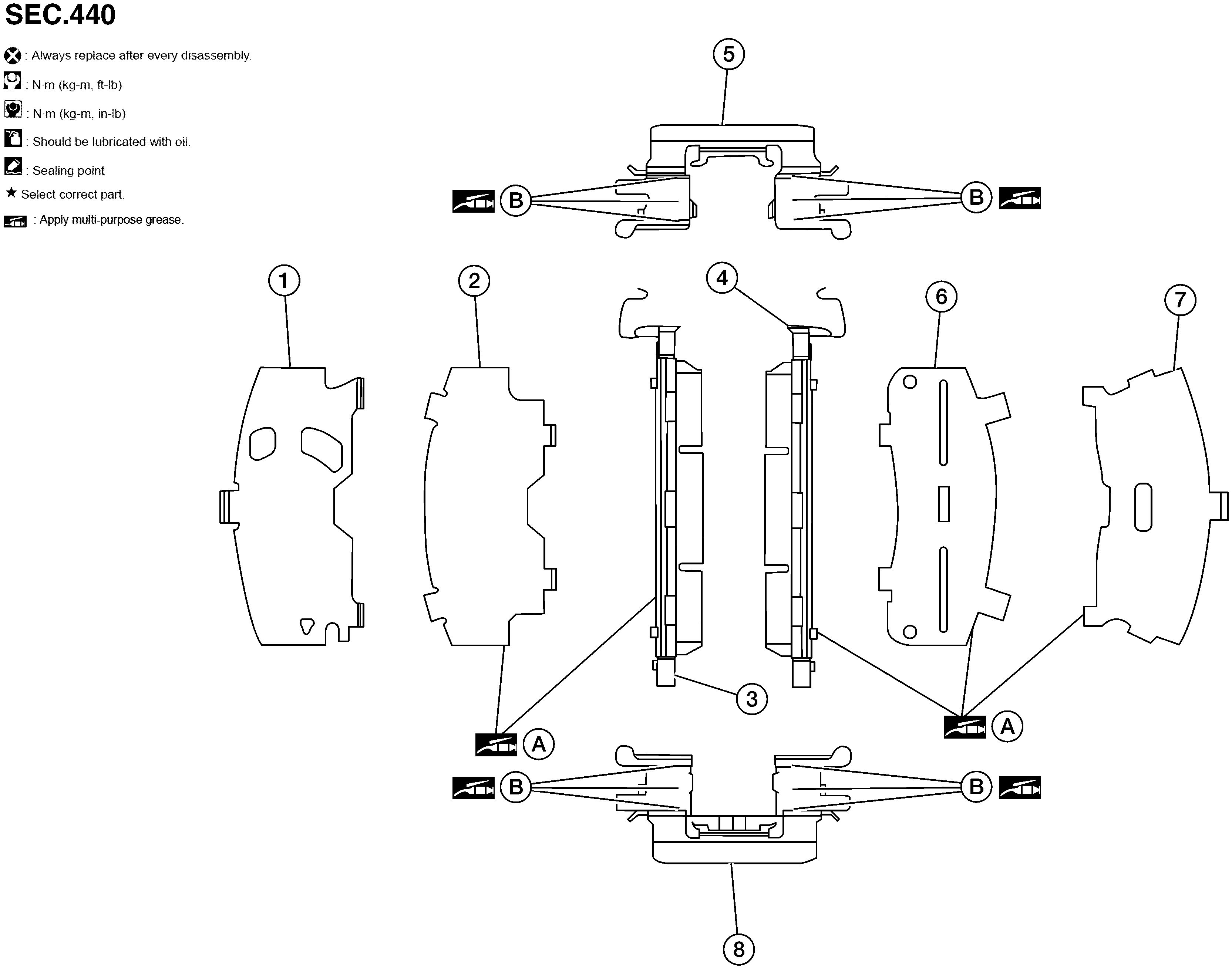

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Inner shim cover |
2. |
Inner shim |
3. |
Inner pad |
| 4. |
Outer pad |
5. |
Pad retainer upper |
6. |
Outer shim |
| 7. |
Outer shim cover |
8. |
Pad retainer lower |
A. |
Molykote AS-880N grease |
| B. |
Molykote 7439 grease |
|
|
|
|
