Exploded View With Torque Specifications: RH

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

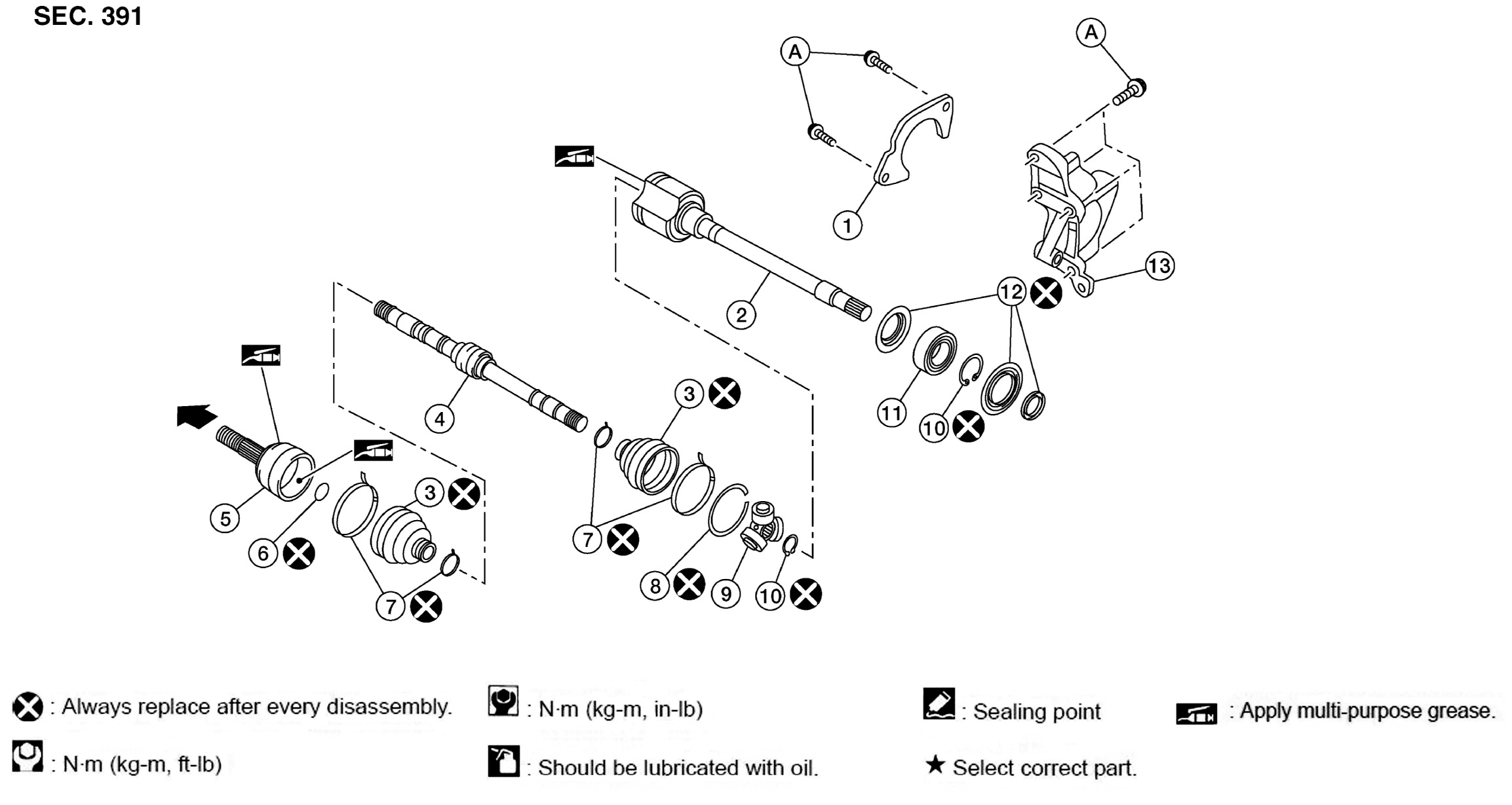

Fig 1: Front Drive Shaft Joints And Boots - RH

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Support Bearing Retainer	2.	Housing	3.	Boot
4.	Shaft With Damper	5.	Joint Sub-Assembly	6.	Circular Clip
7.	Boot Band	8.	Stopper Ring	9.	Spider Assembly
10.	Snap Ring	11.	Support Bearing	12.	Dust Shield
13.	Support Bearing Bracket	A.	Refer to FRONT DRIVE SHAFT INSTALLATION .		Wheel Side
	Fill with Genuine NISSAN grease.
