Engine Compartment

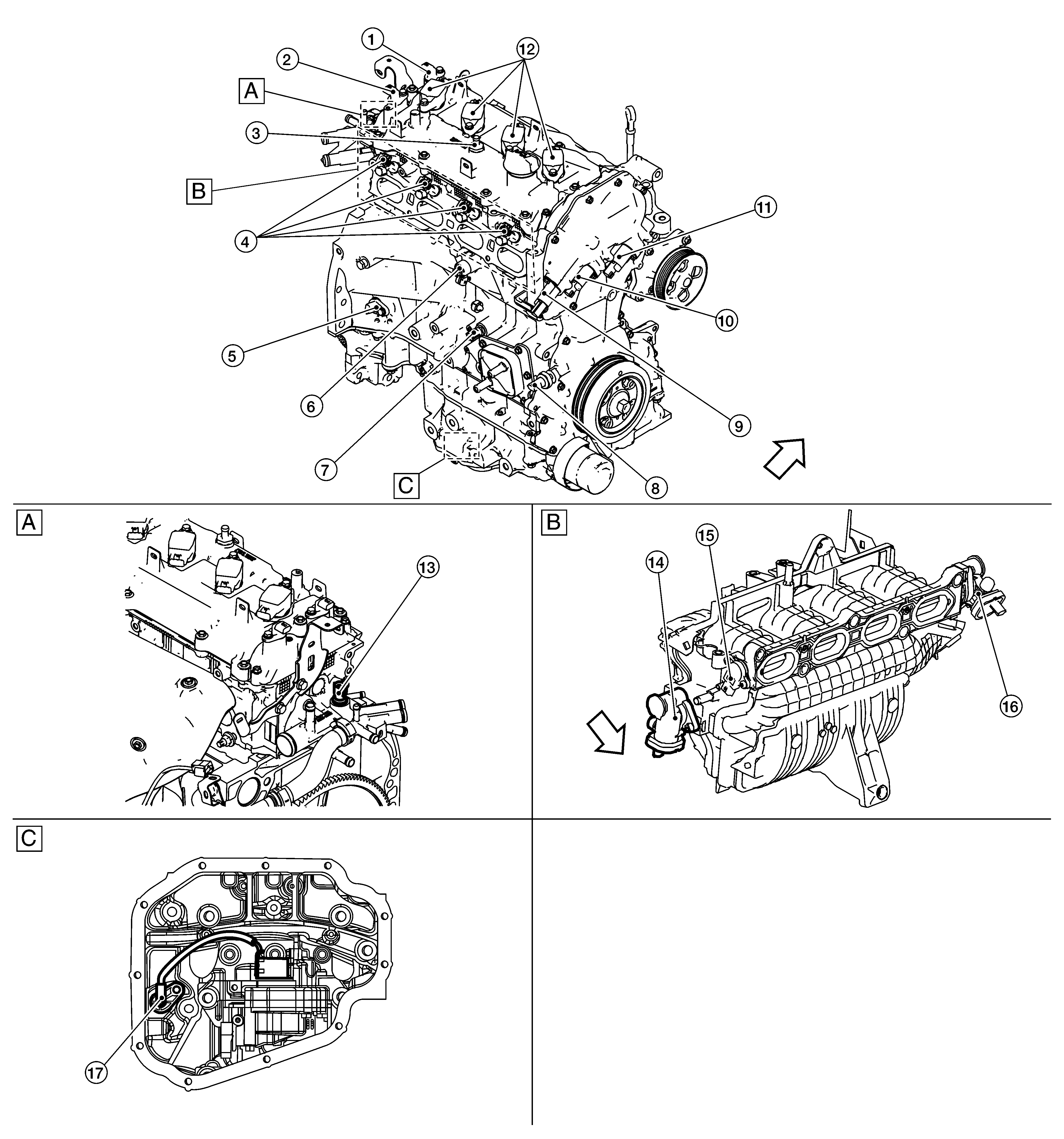

Fig 1: Engine Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

	Engine rear side		Intake side		Engine under side
	: Vehicle front

No.	Component	Function
	Exhaust valve timing control position sensor	EXHAUST VALVE TIMING CONTROL POSITION SENSOR
	Camshaft position sensor (PHASE)	CAMSHAFT POSITION SENSOR (PHASE)
	PCV valve	The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake manifold.
	Fuel injector	FUEL INJECTOR
	Crankshaft position sensor (POS)	CRANKSHAFT POSITION SENSOR (POS)
	Knock sensor	KNOCK SENSOR
	Engine oil temperature sensor	ENGINE OIL TEMPERATURE SENSOR
	Engine oil pressure sensor	ENGINE OIL PRESSURE SENSOR
	Intake valve timing intermediate lock control solenoid valve	INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE
	Intake valve timing control solenoid valve	INTAKE VALVE TIMING CONTROL SOLENOID VALVE
	Exhaust valve timing control solenoid valve	EXHAUST VALVE TIMING CONTROL SOLENOID VALVE
	Ignition coil (with power transistor)	IGNITION COIL WITH POWER TRANSISTOR
	Engine coolant temperature sensor	ENGINE COOLANT TEMPERATURE SENSOR
	Intake manifold tuning valve	INTAKE MANIFOLD TUNING VALVE
	Intake manifold runner control valve position sensor	INTAKE MANIFOLD RUNNER CONTROL VALVE
	Intake manifold runner control valve actuator	INTAKE MANIFOLD RUNNER CONTROL VALVE
	Engine oil pressure control solenoid valve	ENGINE OIL PRESSURE CONTROL SOLENOID VALVE
