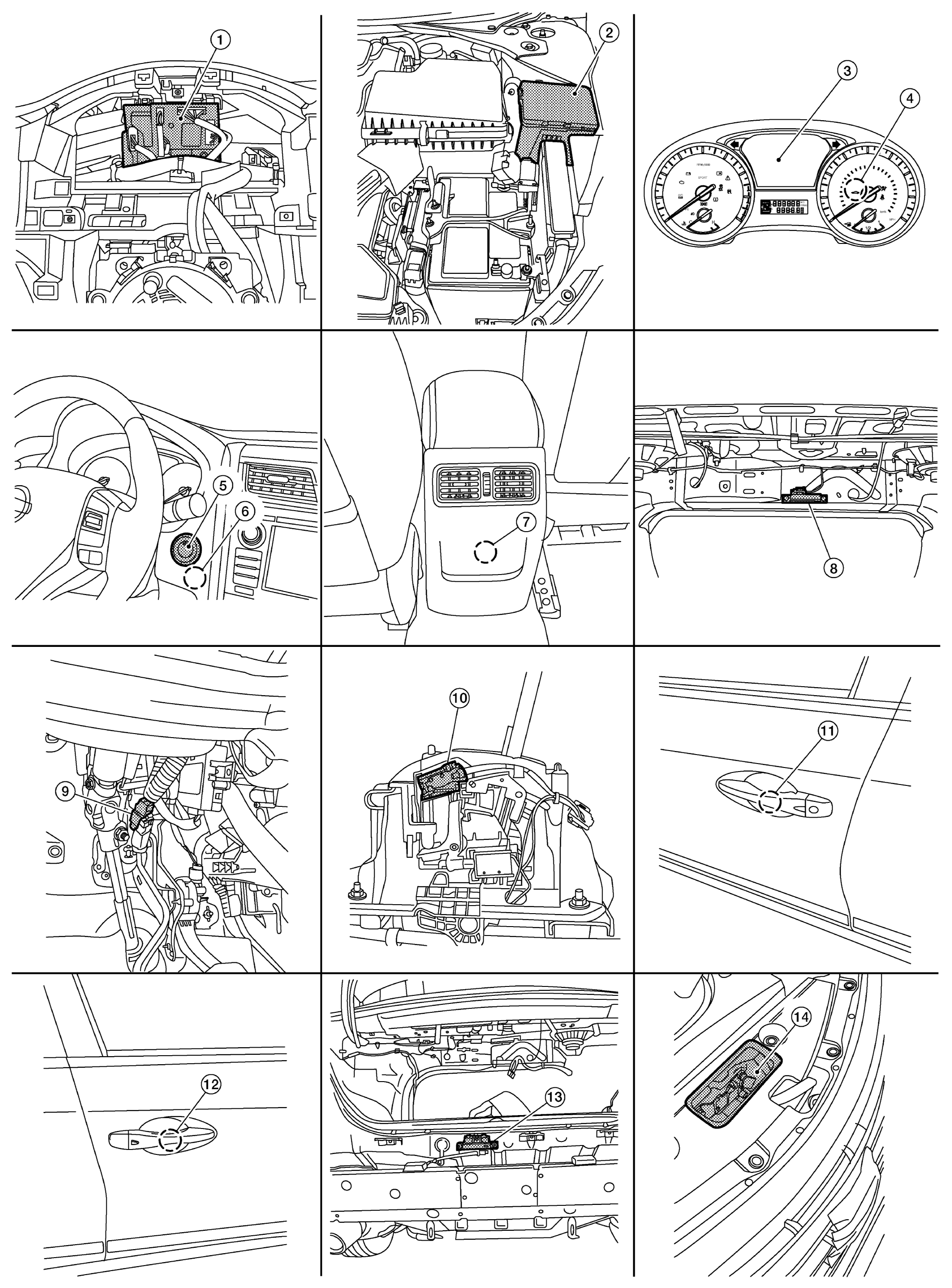

| 1. |
BCM (view with combination meter removed) |
2. |
IPDM E/R |
3. |
Combination meter |
| 4. |
Security indicator lamp |
5. |
Push-button ignition switch |
6. |
NATS antenna amp. |
| 7. |
Inside key antenna (front console) |
8. |
Inside key antenna (rear parcel shelf) (view with rear parcel shelf trim removed) |
9. |
Stop lamp switch |
| 10. |
CVT shift selector (park position switch) |
11. |
Outside key antenna (drivers side) |
12. |
Outside key antenna (passenger side) |
| 13. |
Outside key antenna (rear bumper) (view with rear bumper cover removed) |
14. |
Hood switch |

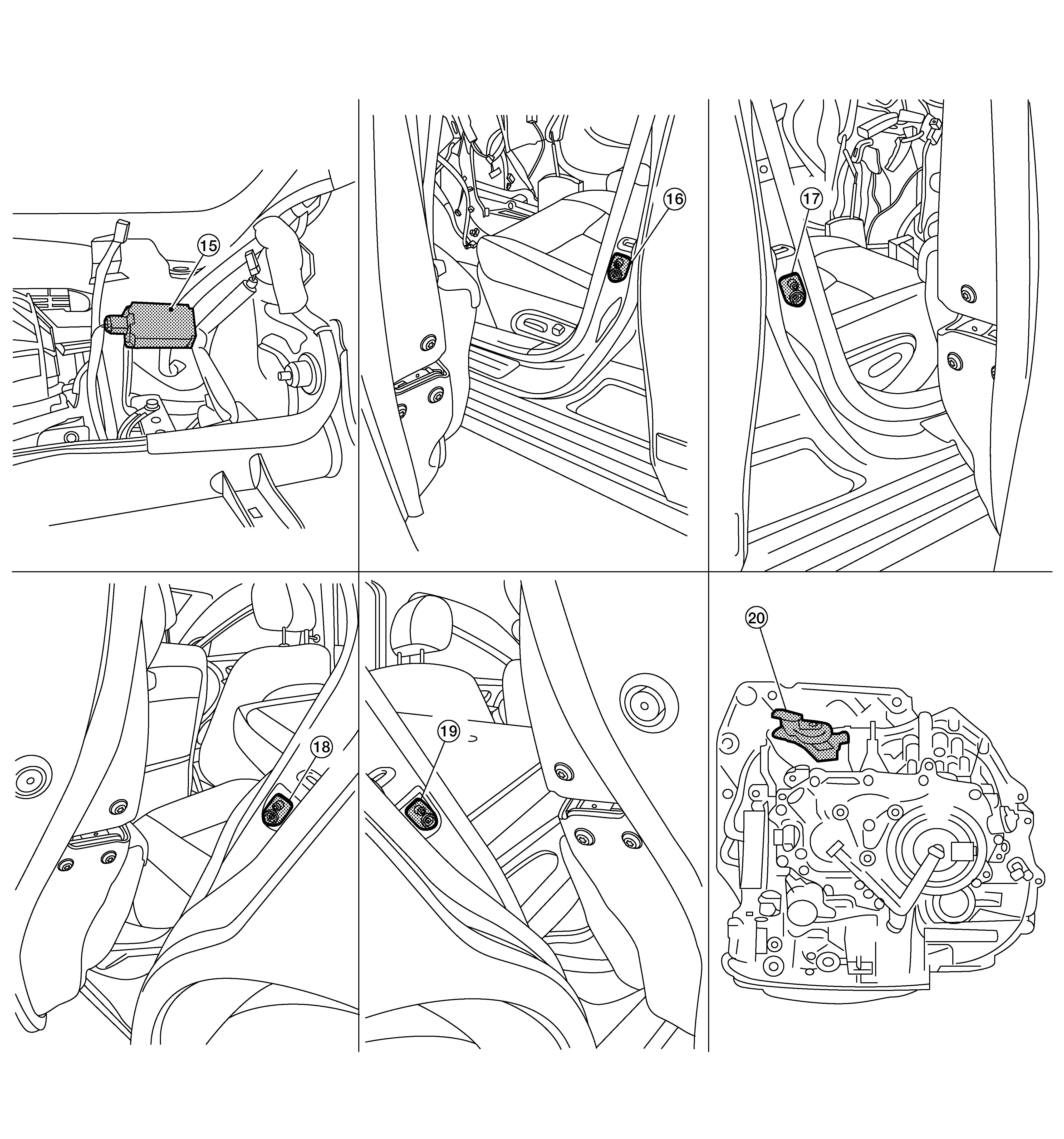

15. |
Remote keyless entry receiver (view with upper dash pad removed) |
| 16. |
Front door switch (LH) |
17. |
Front door switch (RH) |
18. |
Rear door switch (LH) |
| 19. |
Rear door switch (RH) |
20. |
Transmission range switch |
|
|
