Removal And Installation: Removal

Remove main power window and door lock/unlock switch finisher assembly using a suitable tool (A).

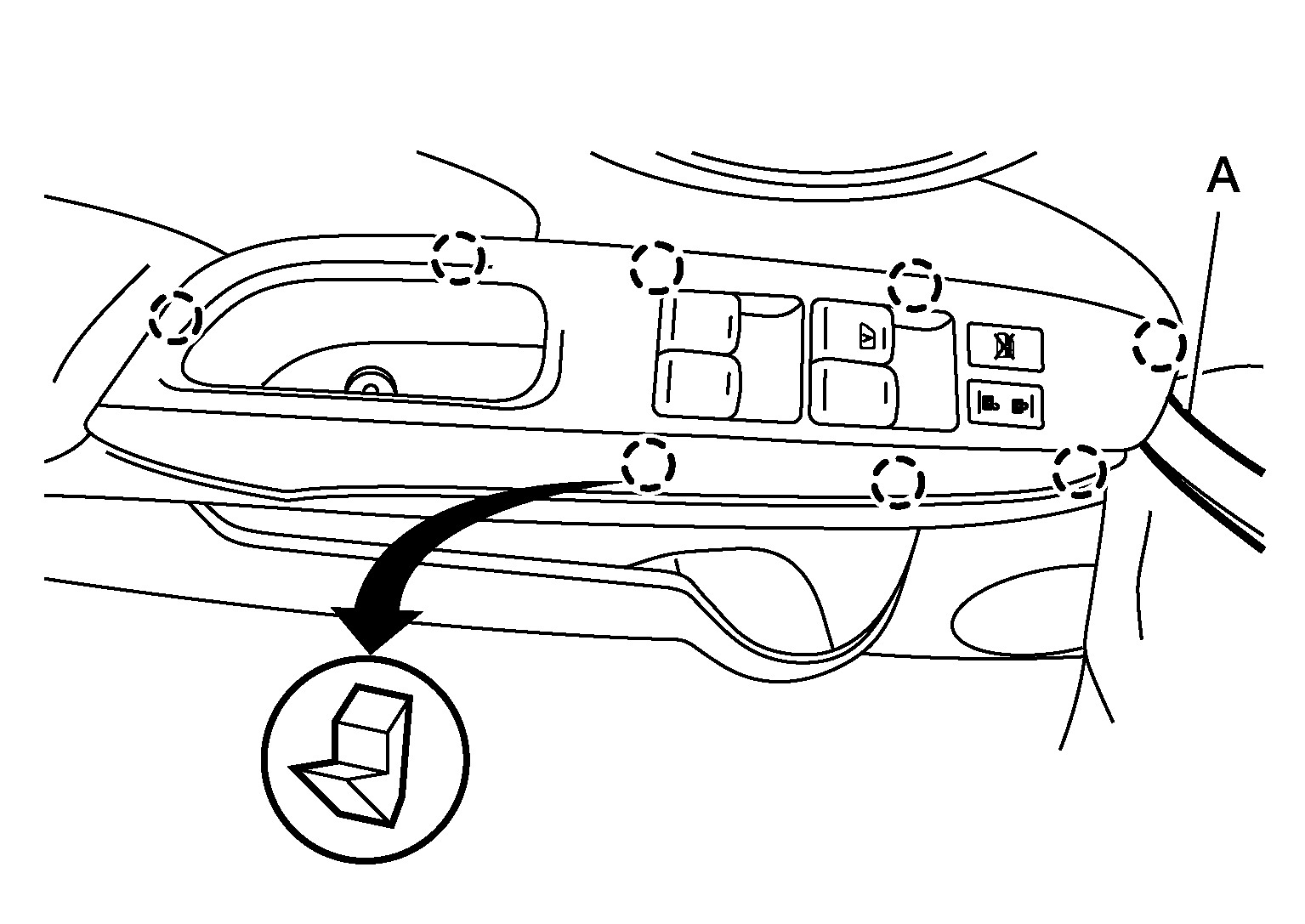

Fig 1: Locating Main Power Window And Door Lock/Unlock Switch Finisher Assembly Pawls
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Disconnect the harness connector from the main power window and door lock/unlock switch.
Separate main power window and door lock/unlock switch (1) from main power window and door lock/unlock switch finisher using a suitable tool.

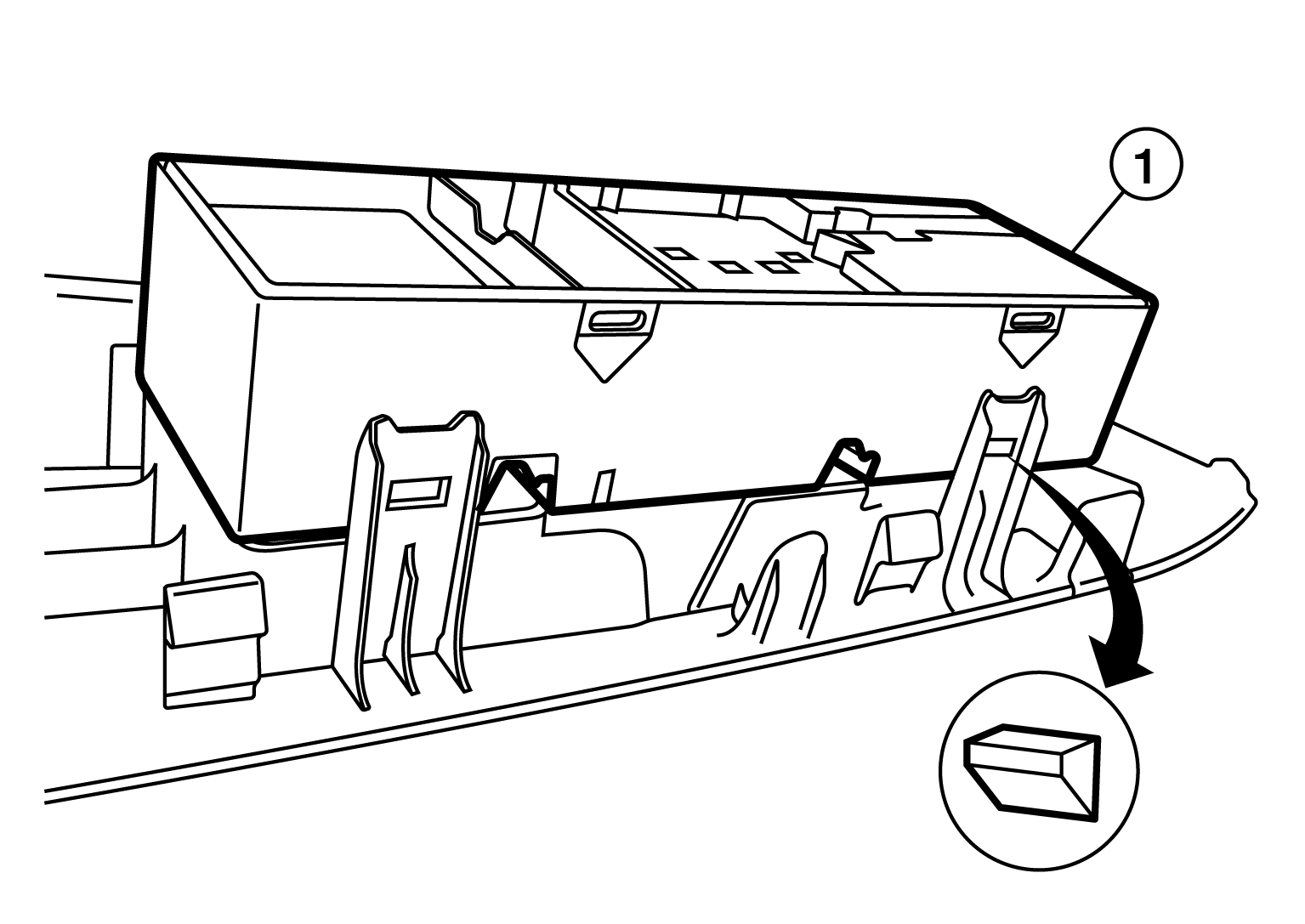

Fig 2: Removing Main Power Window And Door Lock/Unlock Switch
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not bend back the pawls on the switch finisher too far or breakage may occur.
