Exploded View With Torque Specifications

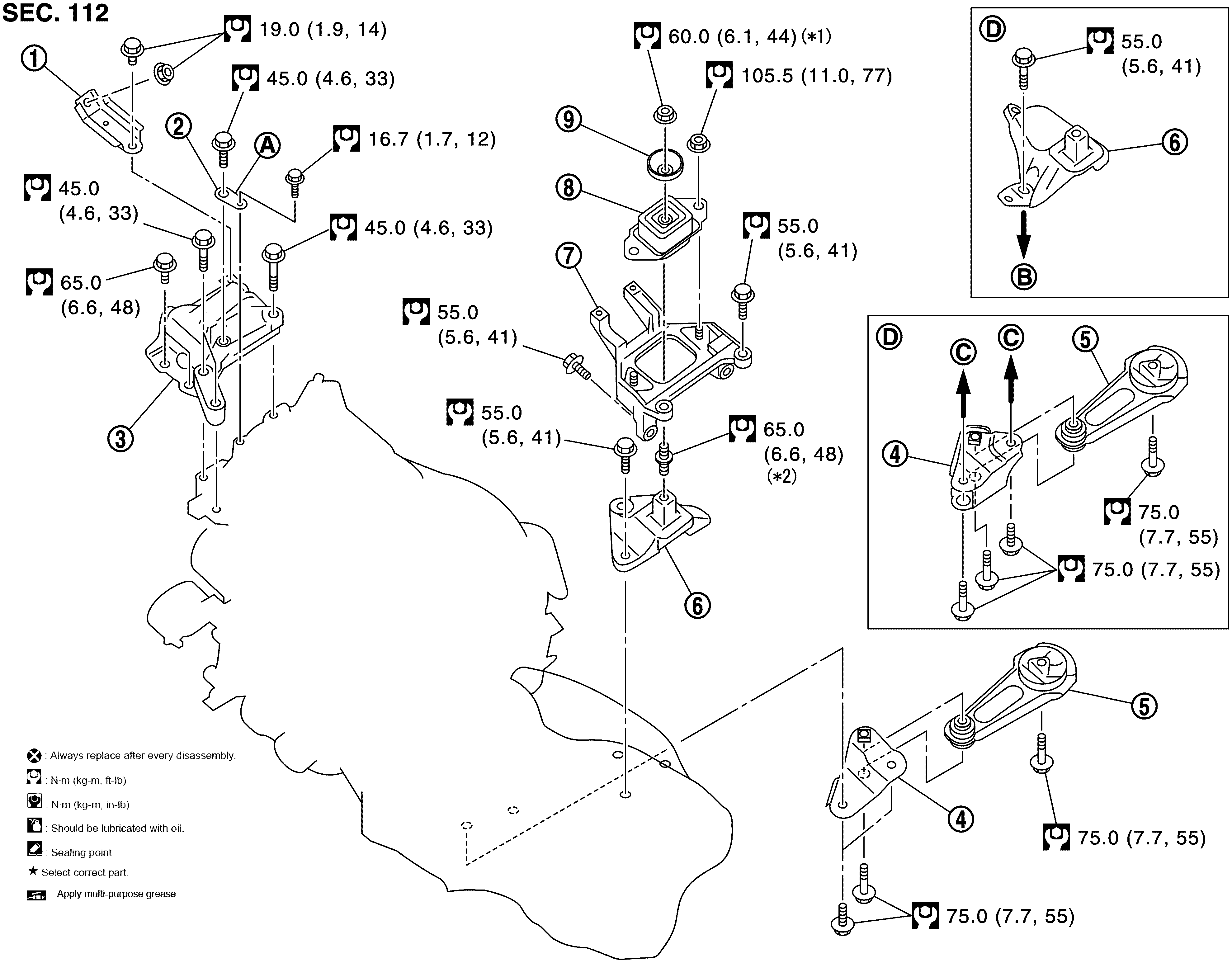

Fig 1: Exploded View Of Engine Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting insulator (RH) stay	2.	Engine mount bracket link	3.	Engine mounting insulator (RH)
4.	Rear engine mounting bracket	5.	Rear torque rod	6.	Engine mounting bracket (LH)
7.	Engine mounting bracket (LH)	8.	Engine mounting insulator (LH)	9.	Mass damper (M/T models)
A.	Front mark	B.	Transaxle (upper)	C.	Transaxle (lower)
D.	M/T models

CAUTION:

Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]
