Exploded View With Torque Specifications

WITH REMOVABLE HEADREST

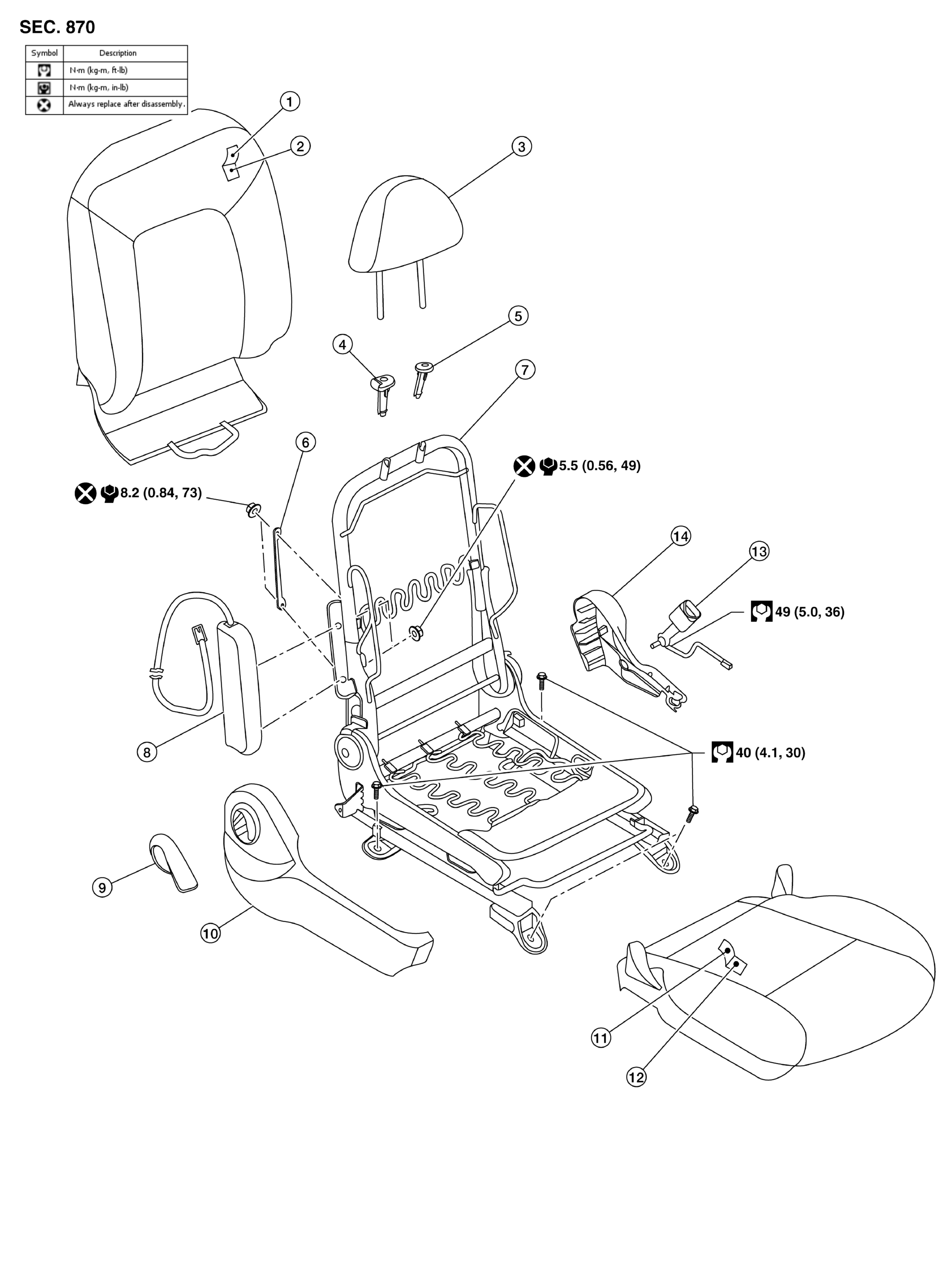

Fig 1: Exploded View Of Passenger Side With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback trim	2.	Seatback pad	3.	Headrest
4.	Headrest holder (free)	5.	Headrest holder (locked)	6.	Chute rod
7.	Seat frame assembly	8.	Side air bag module	9.	Recline lever
10.	Seat cushion outer finisher (RH)	11.	Seat cushion trim	12.	Seat cushion pad
13.	Seat belt buckle	14.	Seat cushion outer finisher (LH)

WITHOUT REMOVABLE HEADREST

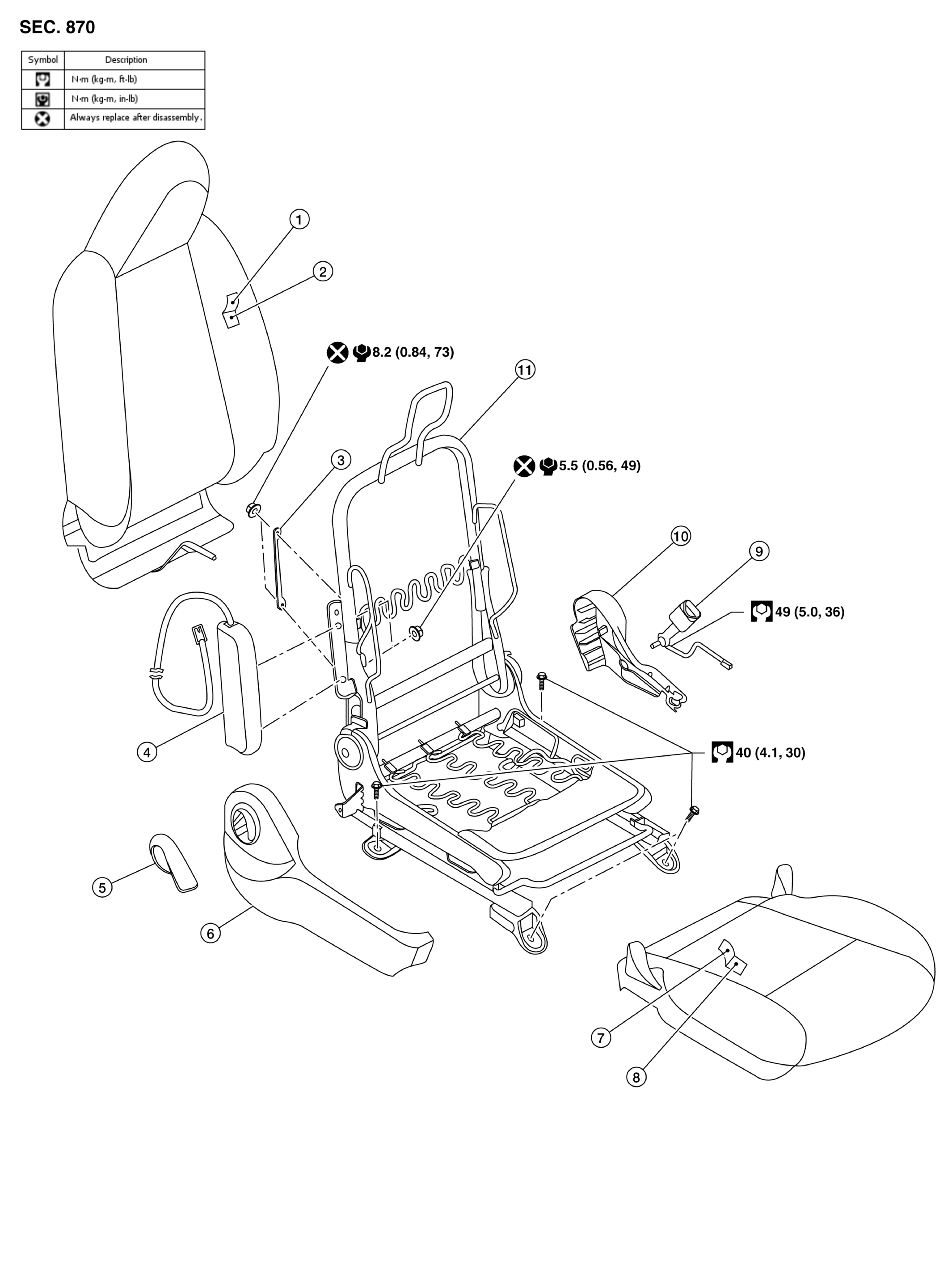

Fig 2: Exploded View Of Passenger Side With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback trim	2.	Seatback pad	3.	Chute rod
4.	Side air bag module	5.	Recline lever	6.	Seat cushion outer finisher (RH)
7.	Seat cushion trim	8.	Seat cushion pad	9.	Seat belt buckle
10.	Seat cushion outer finisher (LH)	11.	Seat frame assembly
