Exploded View With Torque Specifications

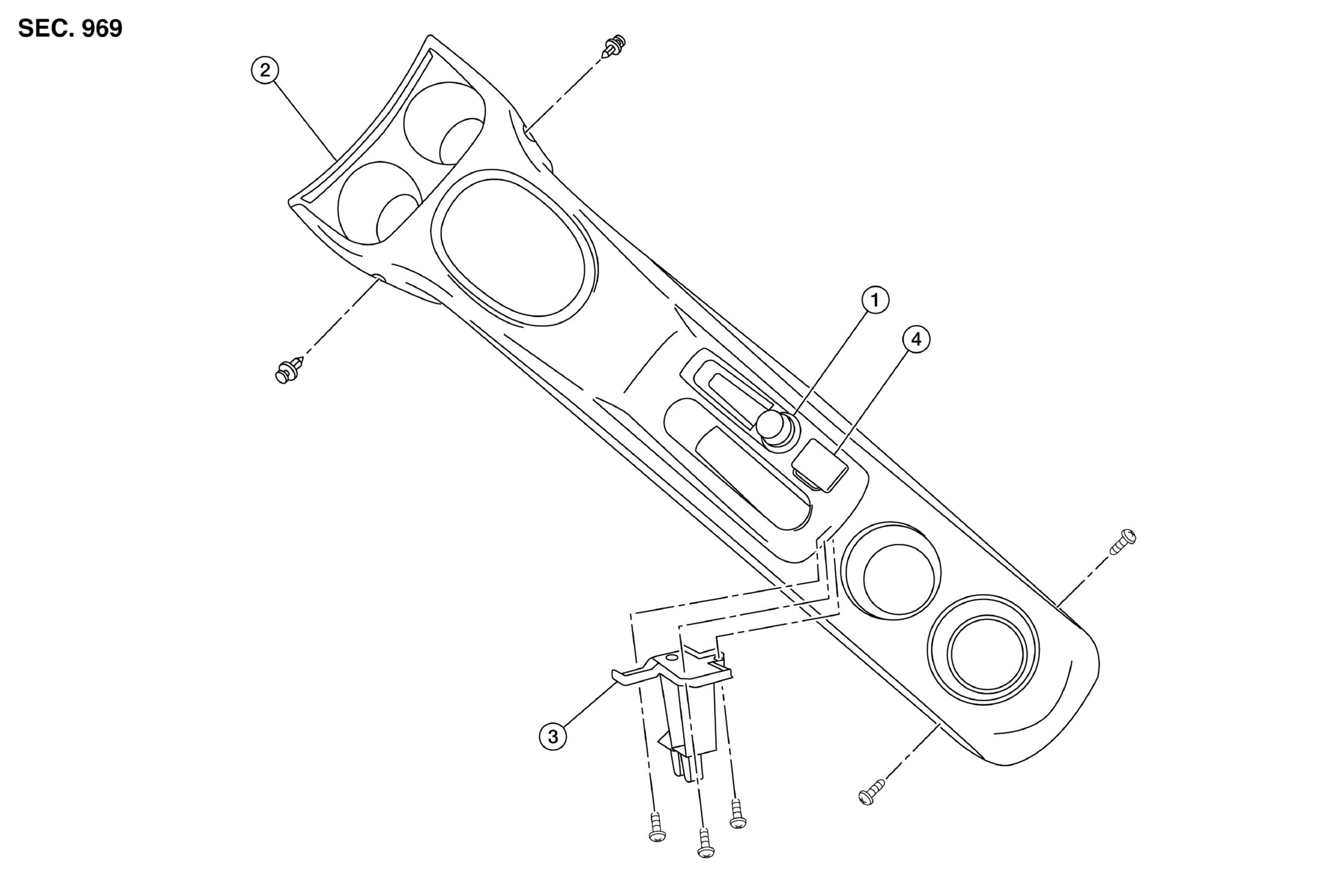

Fig 1: Exploded View Of Center Console Assembly
GNSAWJIA0708ZZ-708Courtesy of NISSAN NORTH AMERICA, INC.
1. Power socket 2. Center console assembly 3. Center console support
4. USB connector
