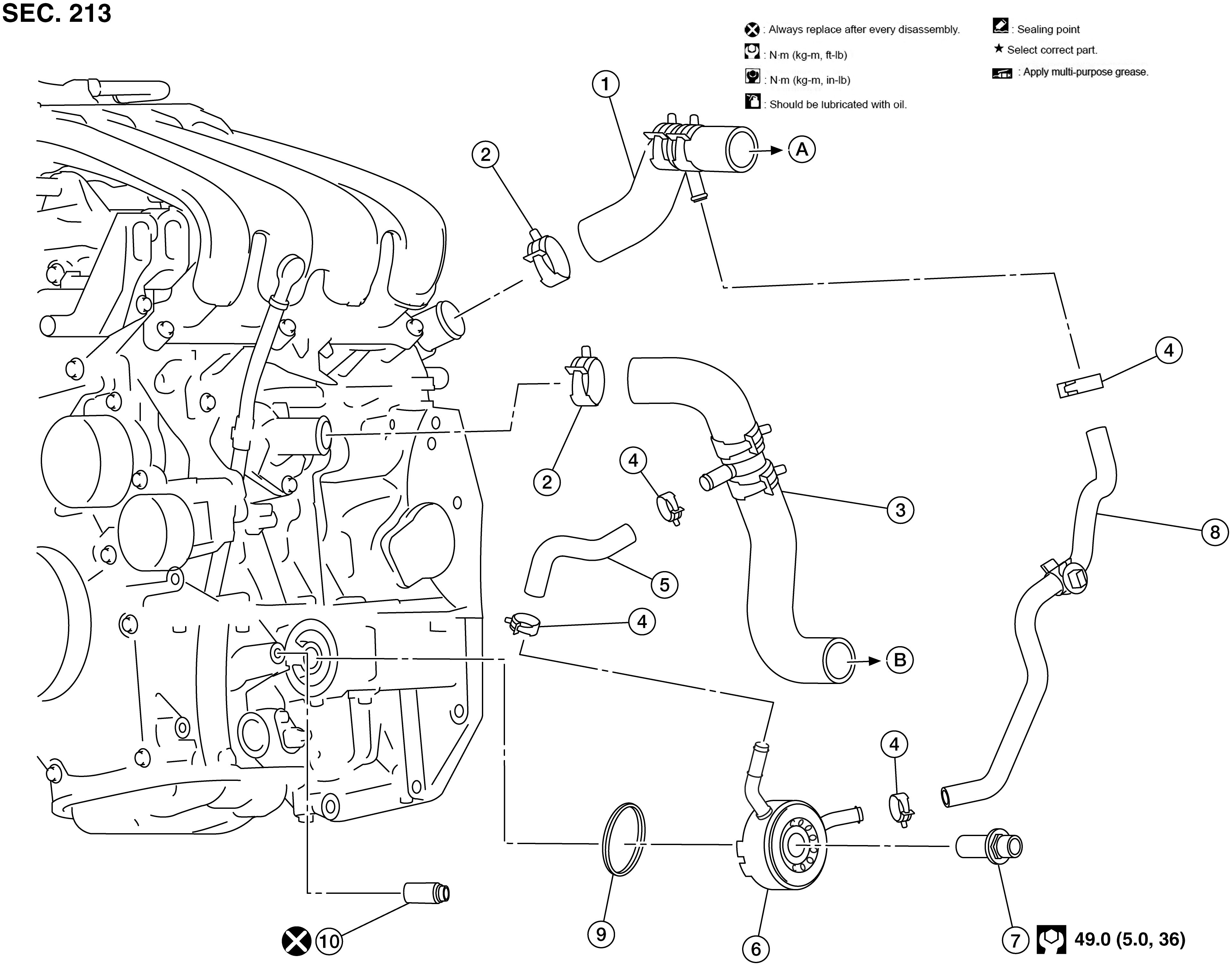

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Radiator hose (upper) |
2. |
Hose clamp |
3. |
Radiator hose (lower) |
| 4. |
Hose clamp |
5. |
Water hose |
6. |
Oil cooler |
| 7. |
Connector bolt |
8. |
Water hose |
9. |
O-ring |
| A. |
To radiator (upper side) |
B. |
To radiator (lower side) |
10. |
Relief valve |
