Exploded View With Torque Specifications

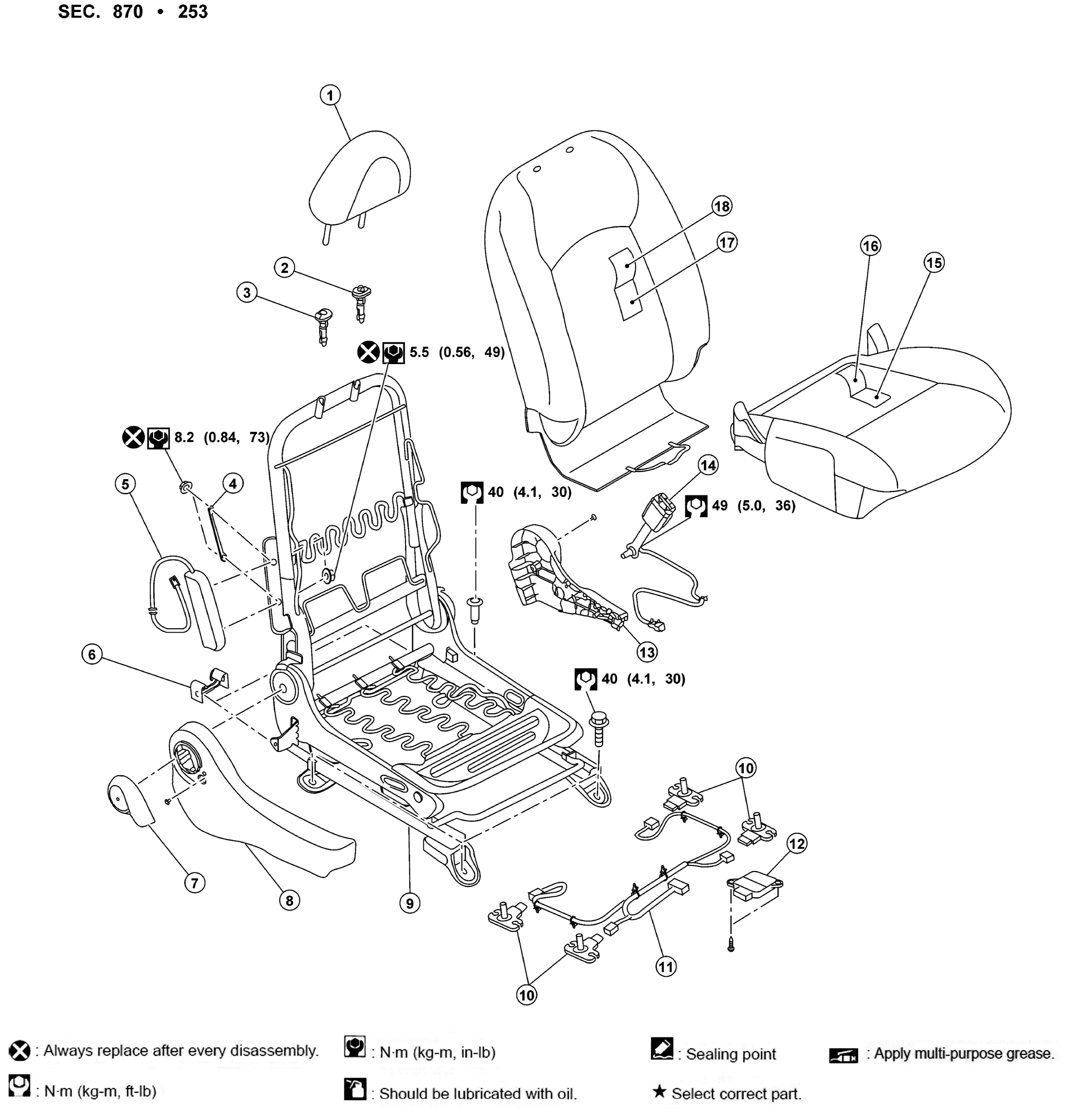

Fig 1: Exploded View Of Passenger Side With Torque Specifications
GNSAWJIA1438ZZ-438Courtesy of NISSAN NORTH AMERICA, INC.
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Chute rod 5. Side air bag module 6. Slide finisher rear (LH/RH)
7. Recline lever 8. Seat cushion outer finisher (RH) 9. Seat frame
10. Occupant classification system sensors 11. Occupant classification system harness 12. Occupant classification system control unit
13. Seat cushion outer finisher (LH) 14. Seat belt buckle 15. Seat cushion pad
16. Seat cushion trim 17. Seatback pad 18. Seatback trim
