Exploded View With Torque Specifications

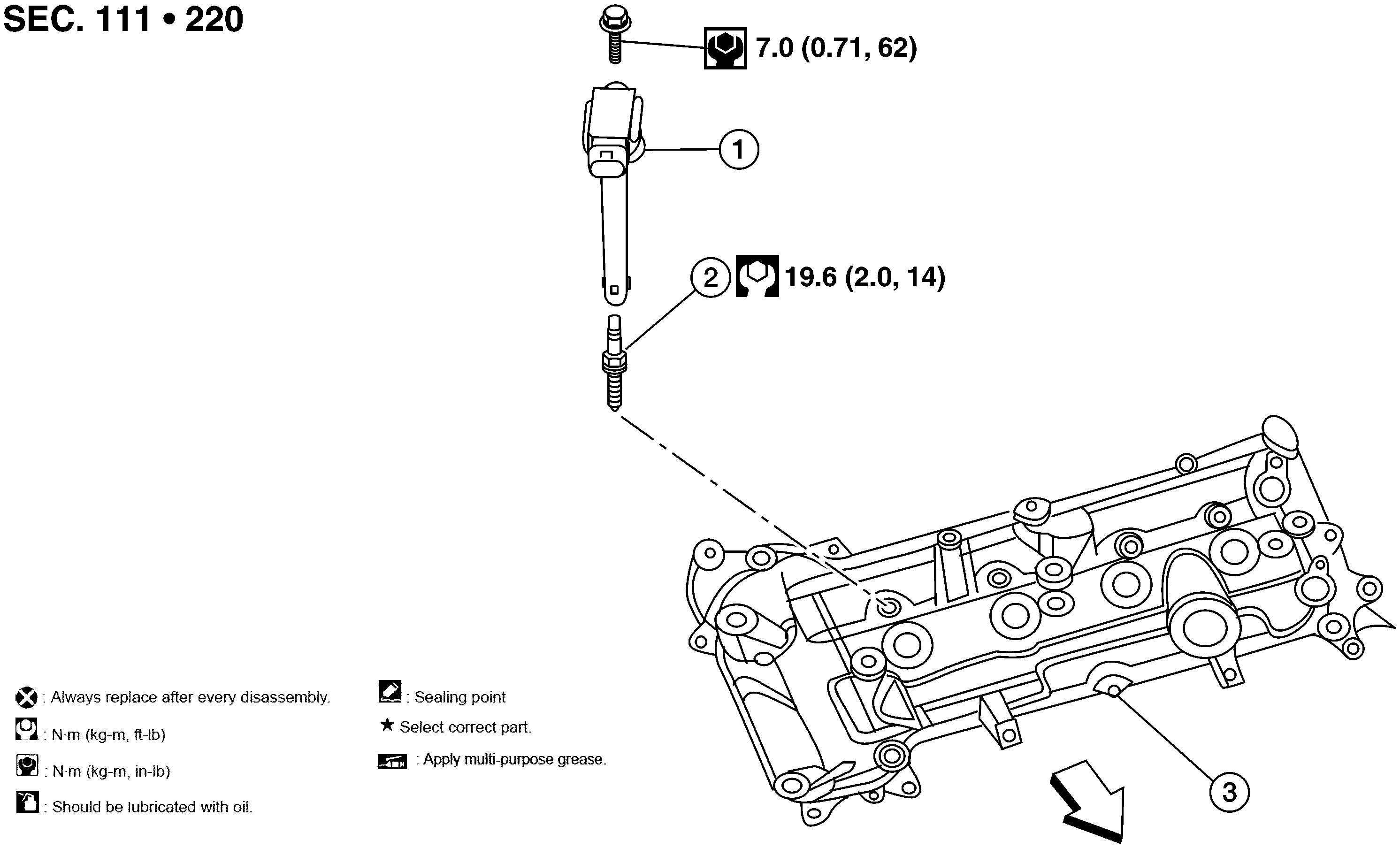

Fig 1: Exploded View Of Spark Plug With Torque Specifications
GNSAWBIA1599ZZ-599Courtesy of NISSAN NORTH AMERICA, INC.
1. Ignition coil 2. Spark plug 3. Rocker cover
ARROW Front
