Removal And Installation: Removal

NOTE:

If unable to use the tool because of power socket location or access to the harness connector, then further removal of interior components may be required. Refer to REMOVAL AND INSTALLATION .

Insert one side of Tool (A) into one of the square holes inside the power socket.

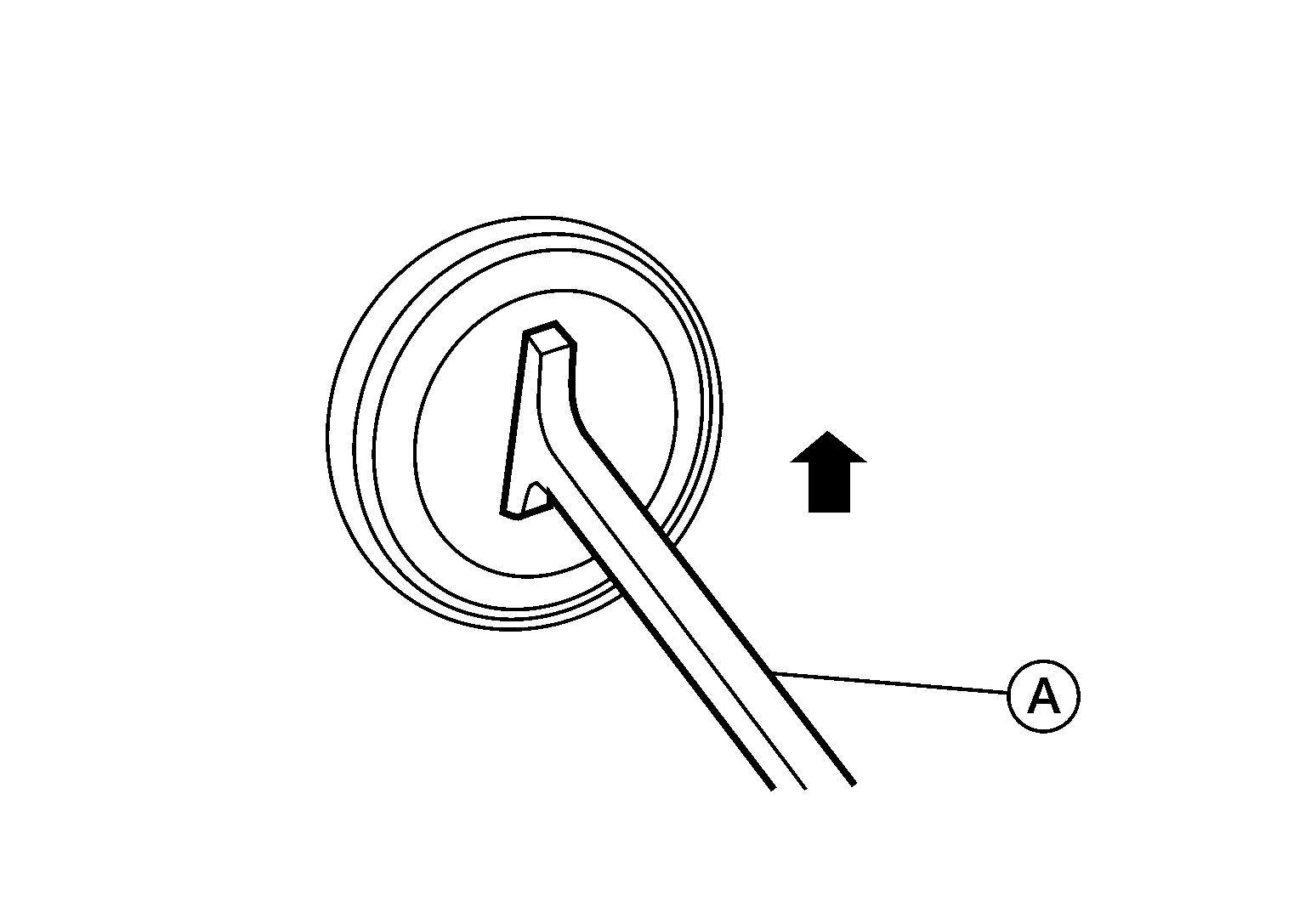

Fig 1: Inserting One End Of Tool Into One Of Square Holes Inside Power Socket
Courtesy of NISSAN NORTH AMERICA, INC.

Tool number: - (J-42059)
Lift up the handle of the Tool as shown ( ) until the other side snaps into the other square hole in the power socket.
Pull the power socket straight out with the Tool.
Disconnect the harness connector from the power socket.

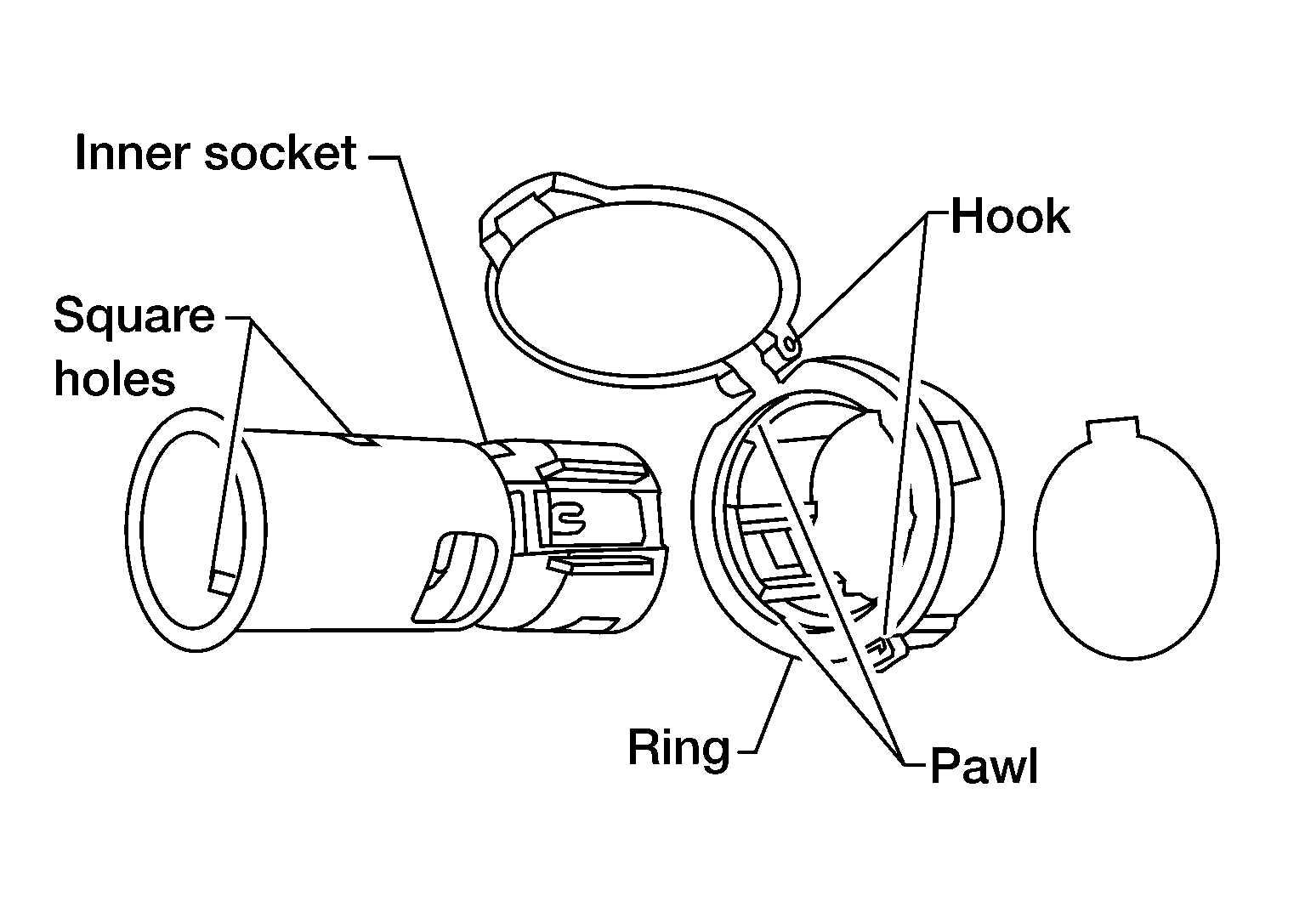

Fig 2: Identifying Inner Socket, Hook, Ring, Pawl And Square Holes
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the ring from the power socket while pressing the pawls with a suitable tool.
