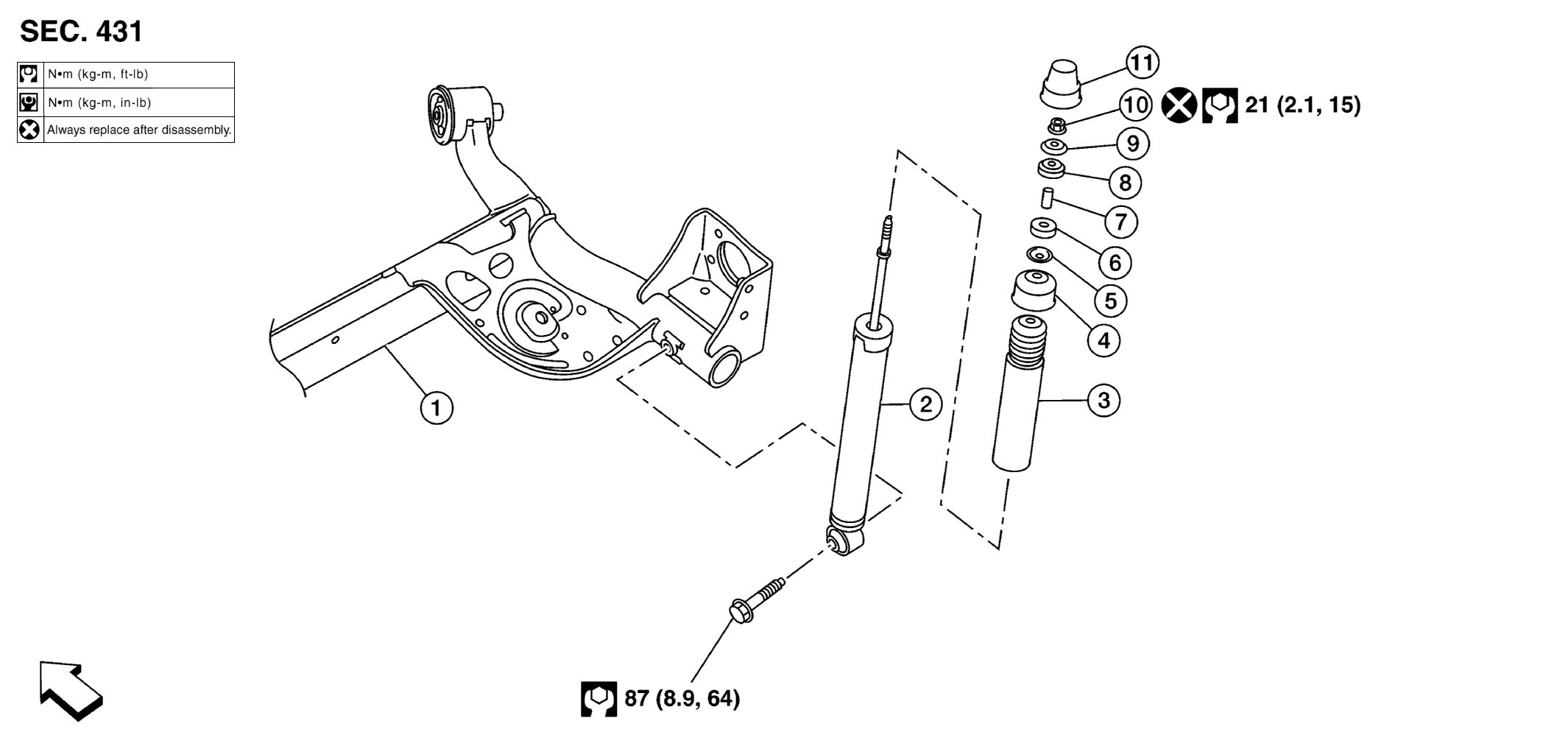

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear suspension beam |
2. |
Shock absorber |
3. |
Bound bumper |
| 4. |
Bound bumper cover |
5. |
Washer |
6. |
Bushing |
| 7. |
Distance tube |
8. |
Bushing |
9. |
Washer |
| 10. |
Piston rod lock nut |
11. |
Cap |
 |
Front |
