Power Distribution System: Wiring Diagram

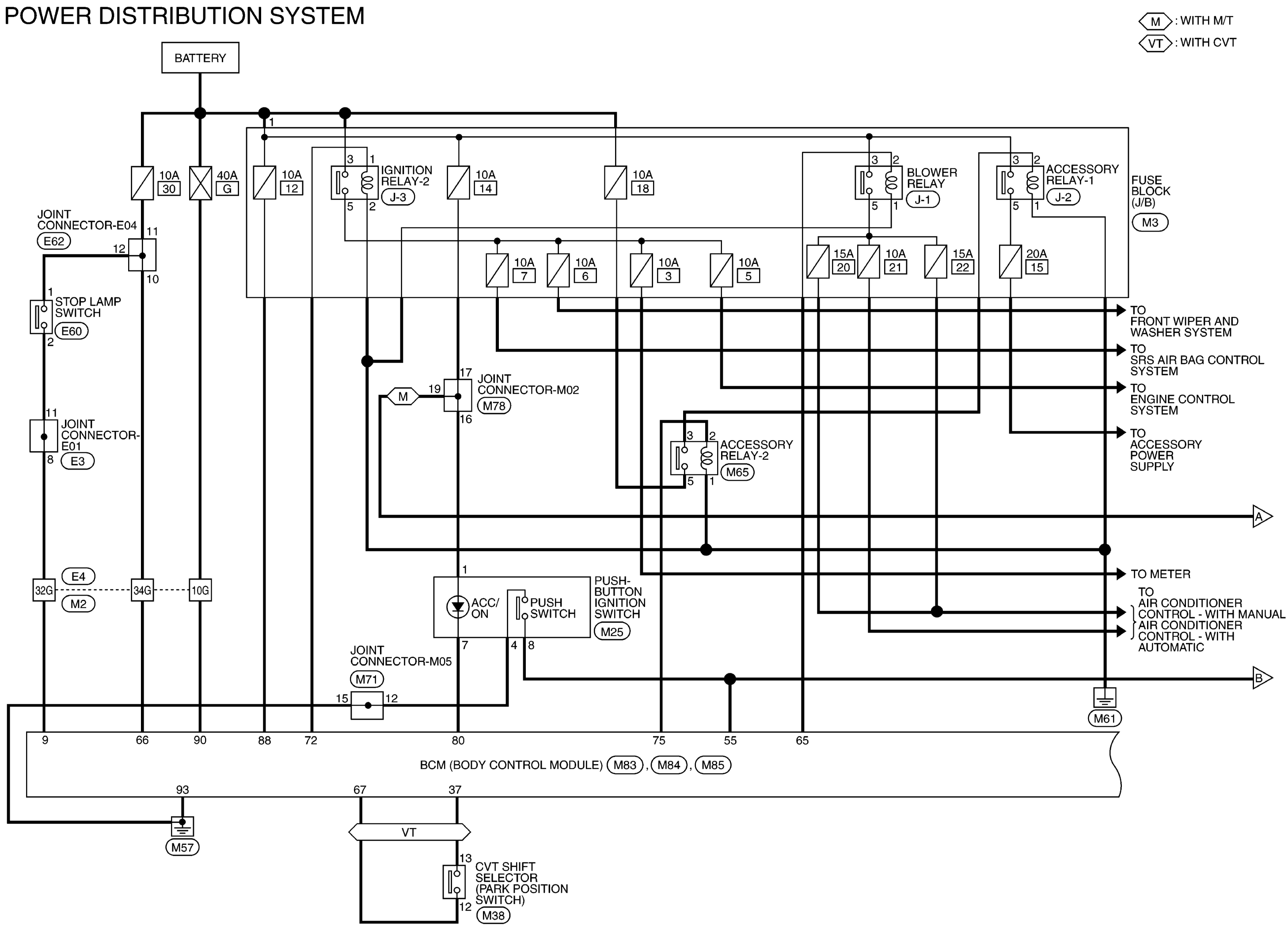

Fig 1: Power Distribution System Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

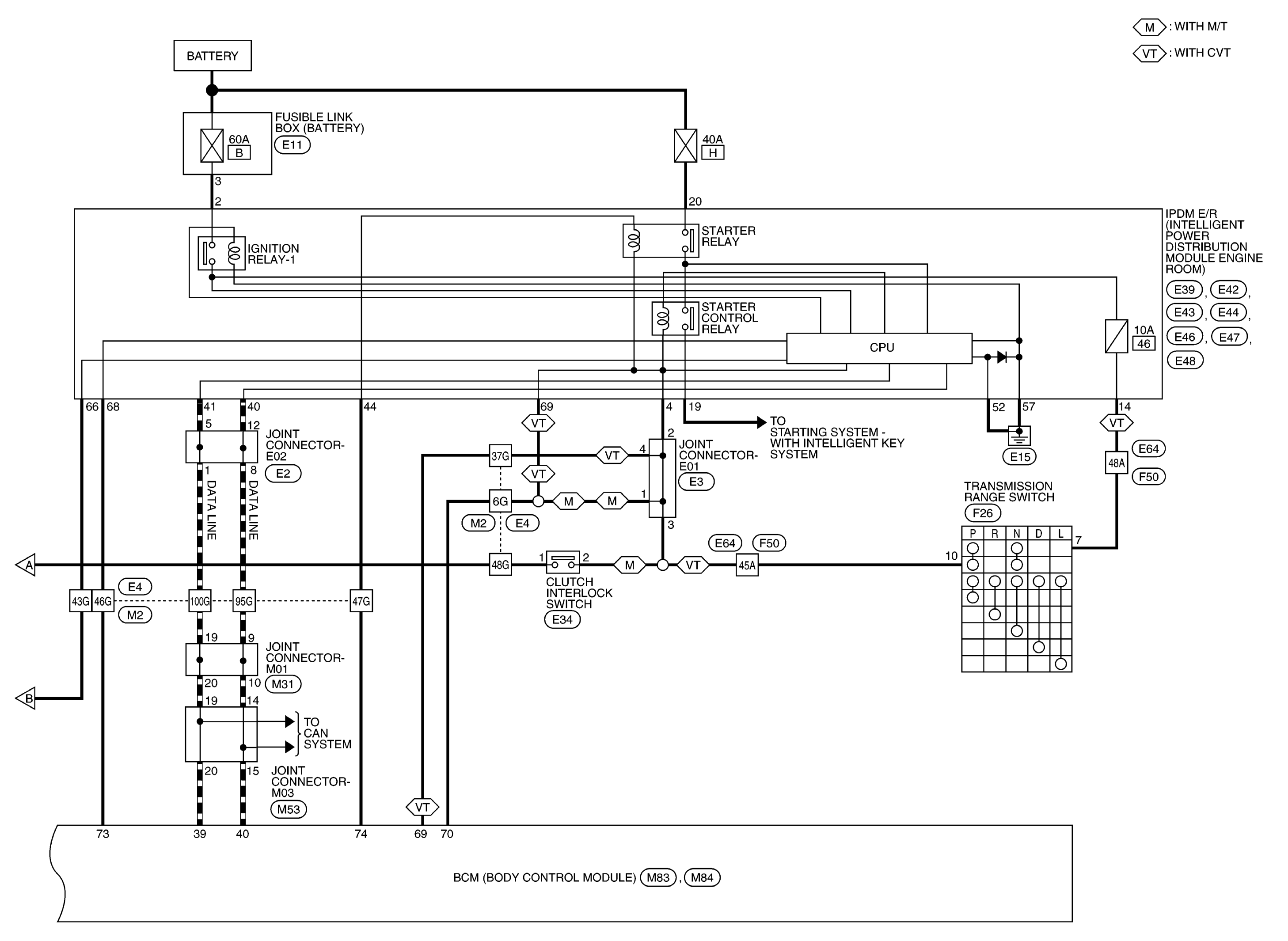

Fig 2: Power Distribution System Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

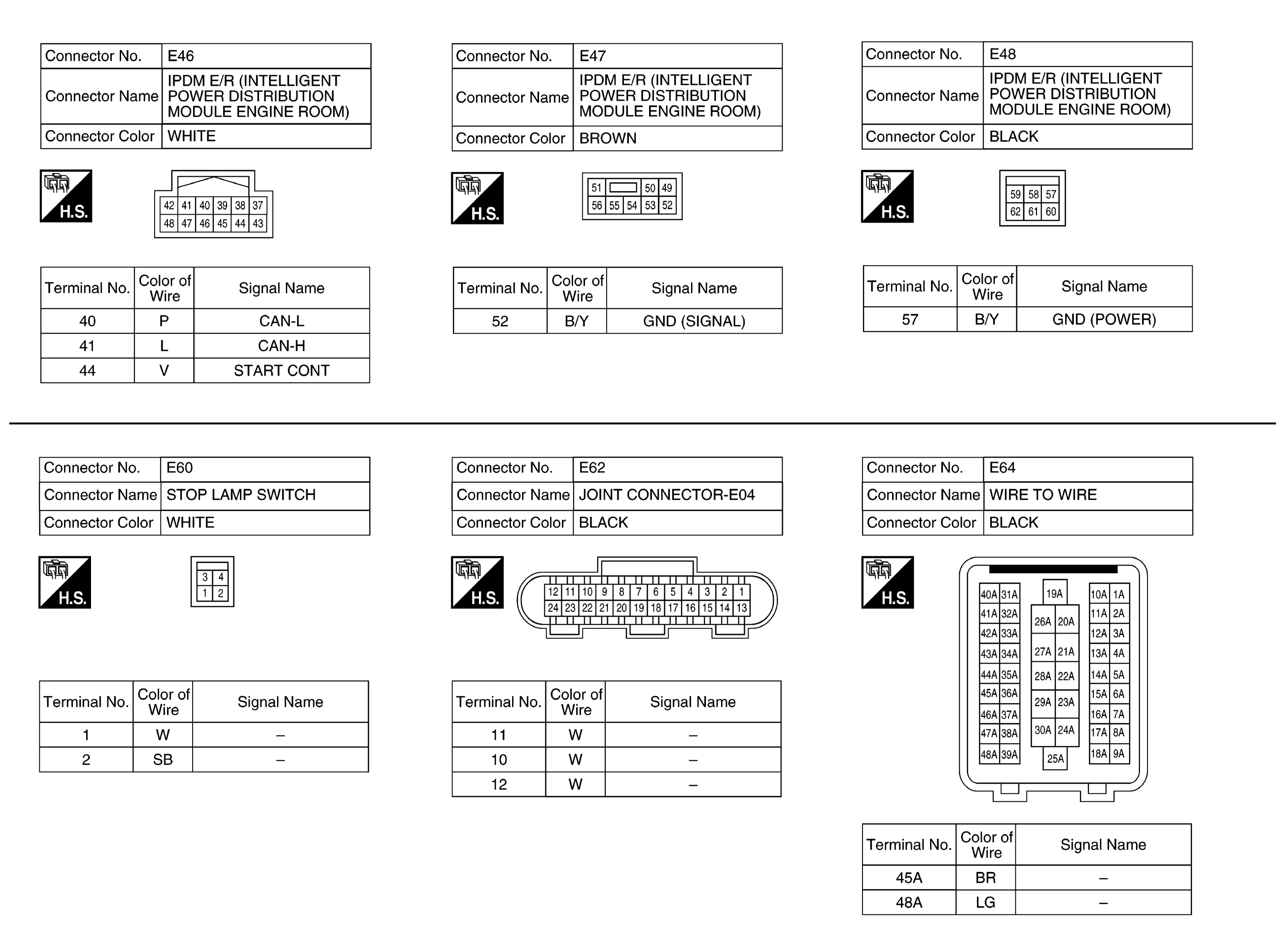

Fig 3: Power Distribution System Connector End View (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

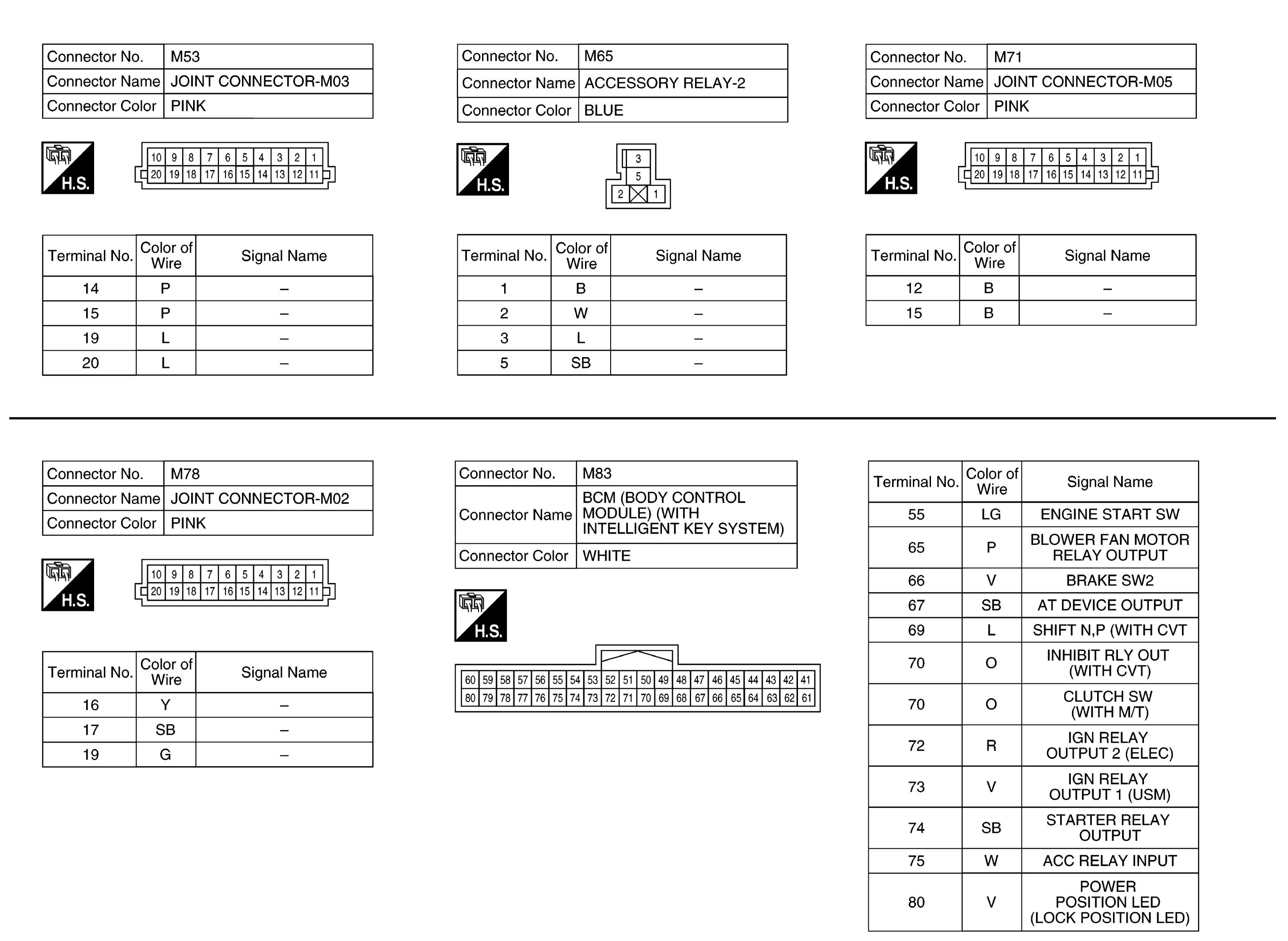

Fig 4: Power Distribution System Connector End View (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

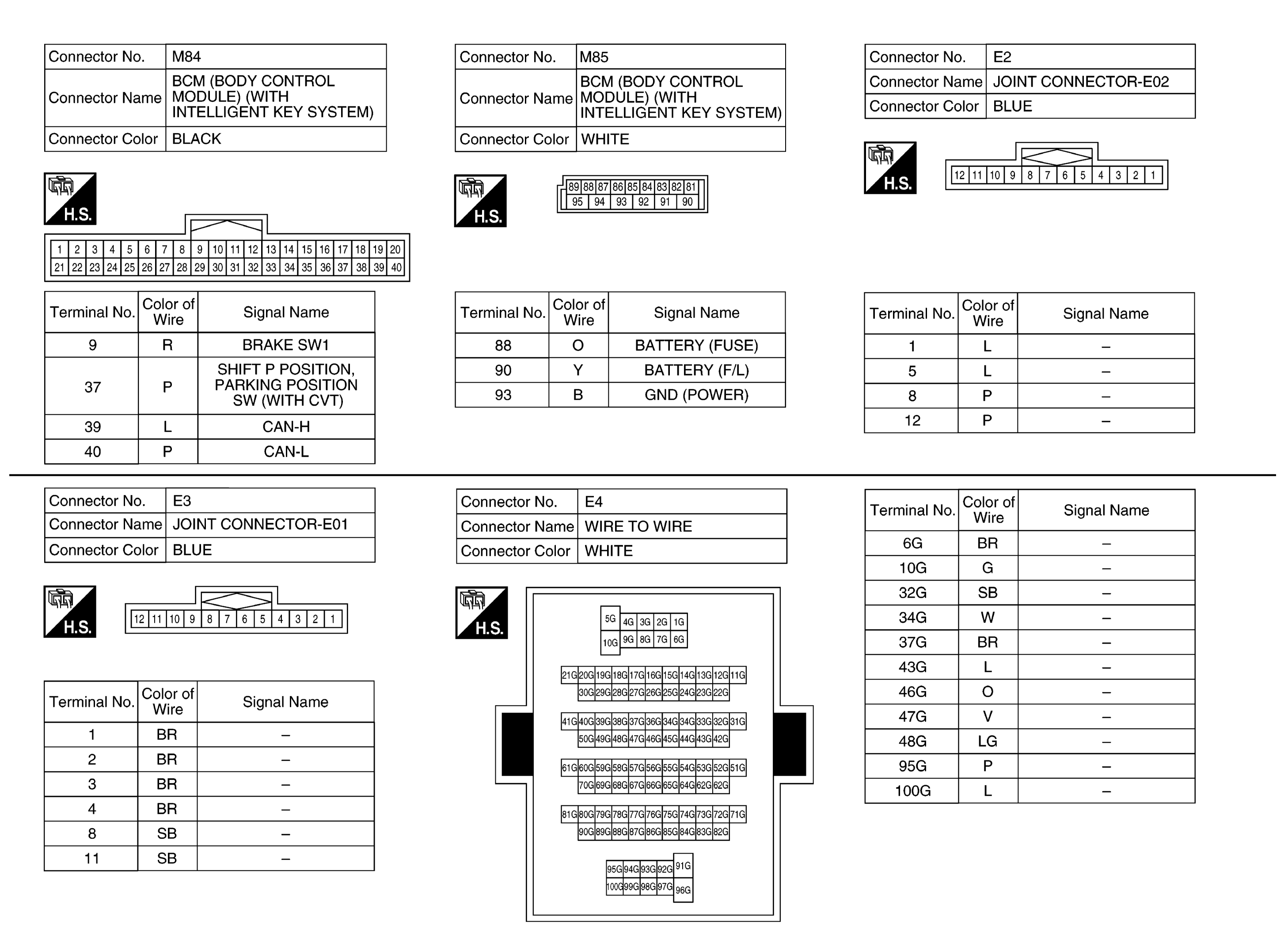

Fig 5: Power Distribution System Connector End View (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

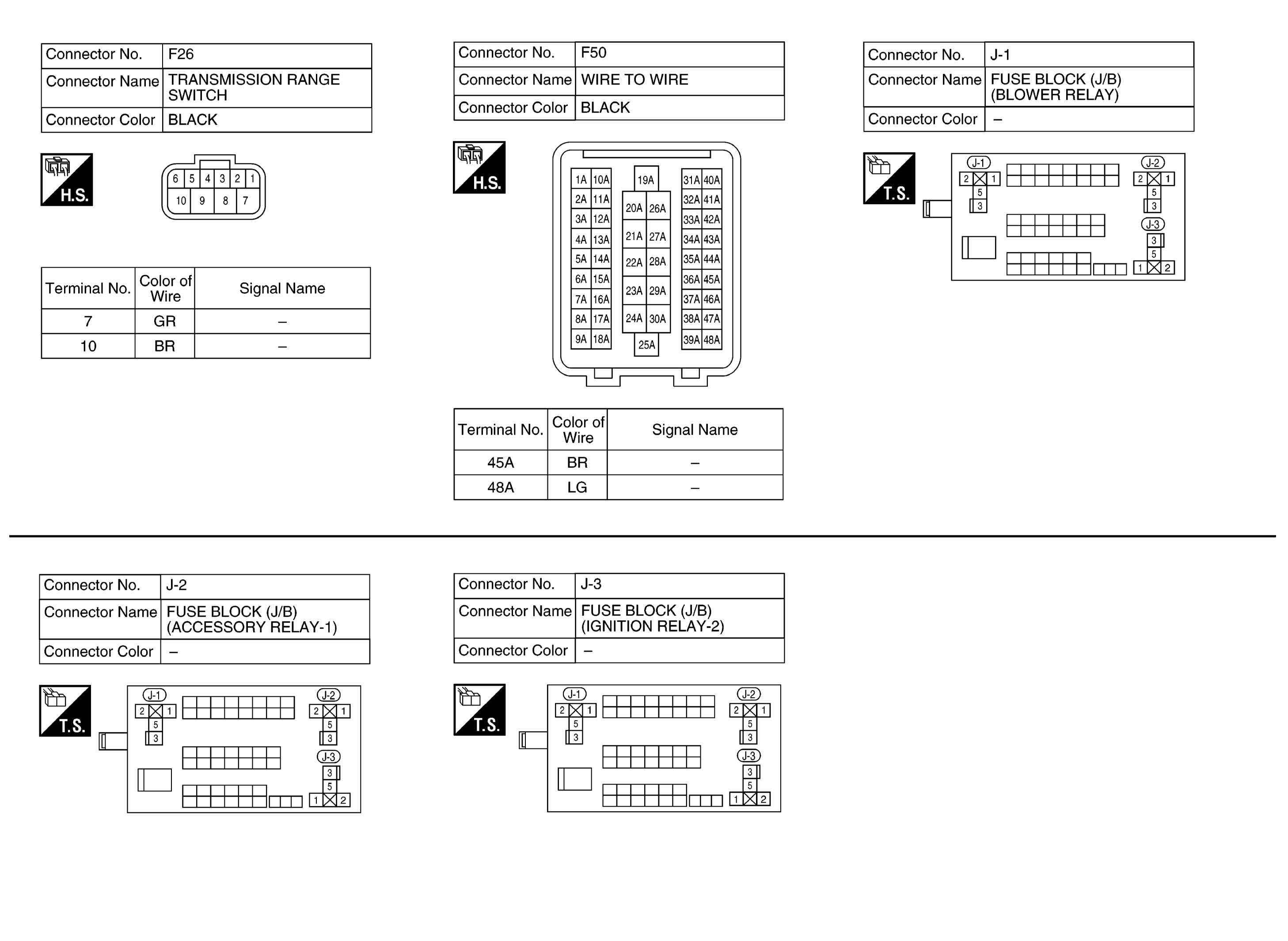

Fig 6: Power Distribution System Connector End View (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

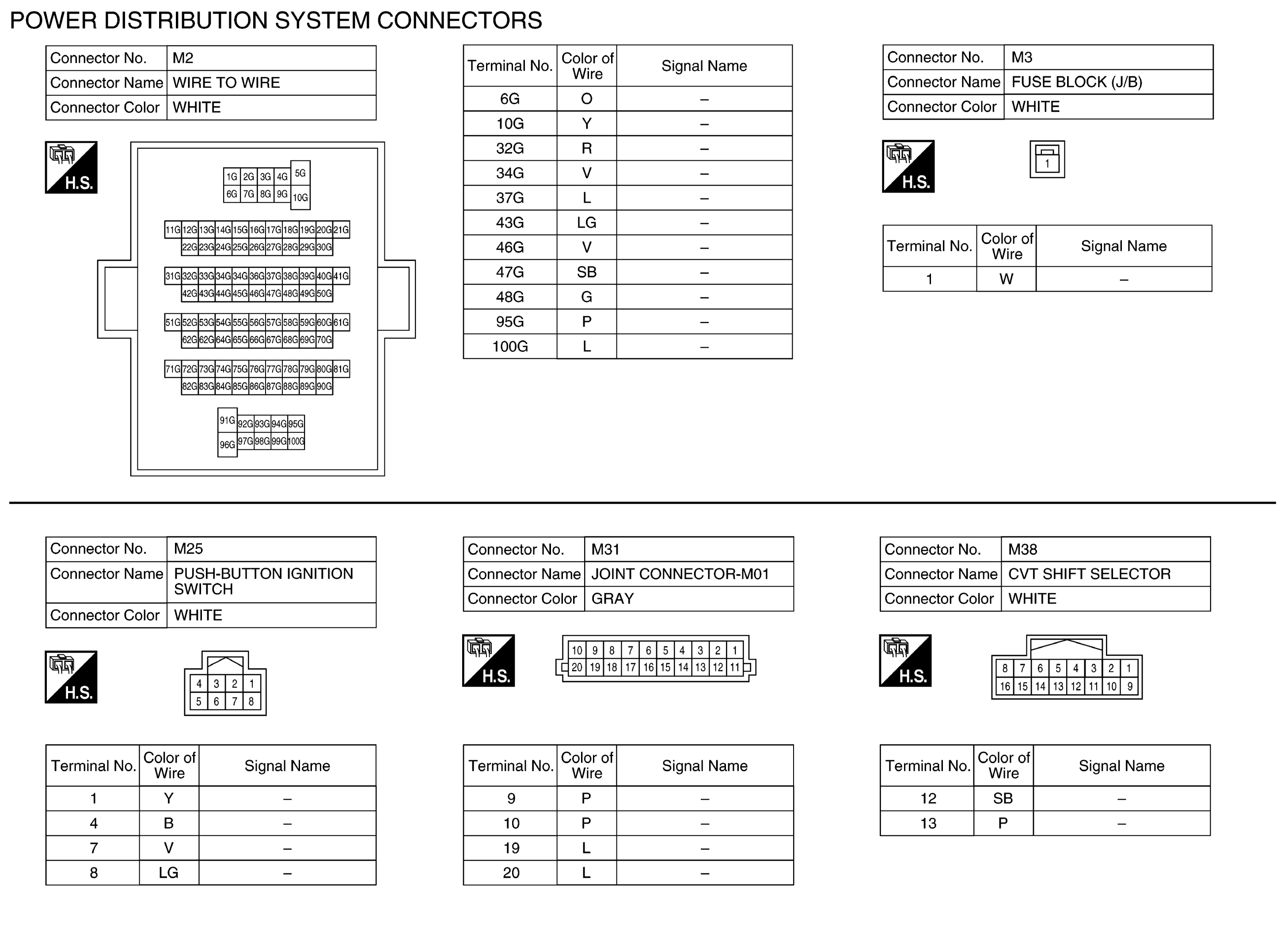

Fig 7: Power Distribution System Connector End View (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

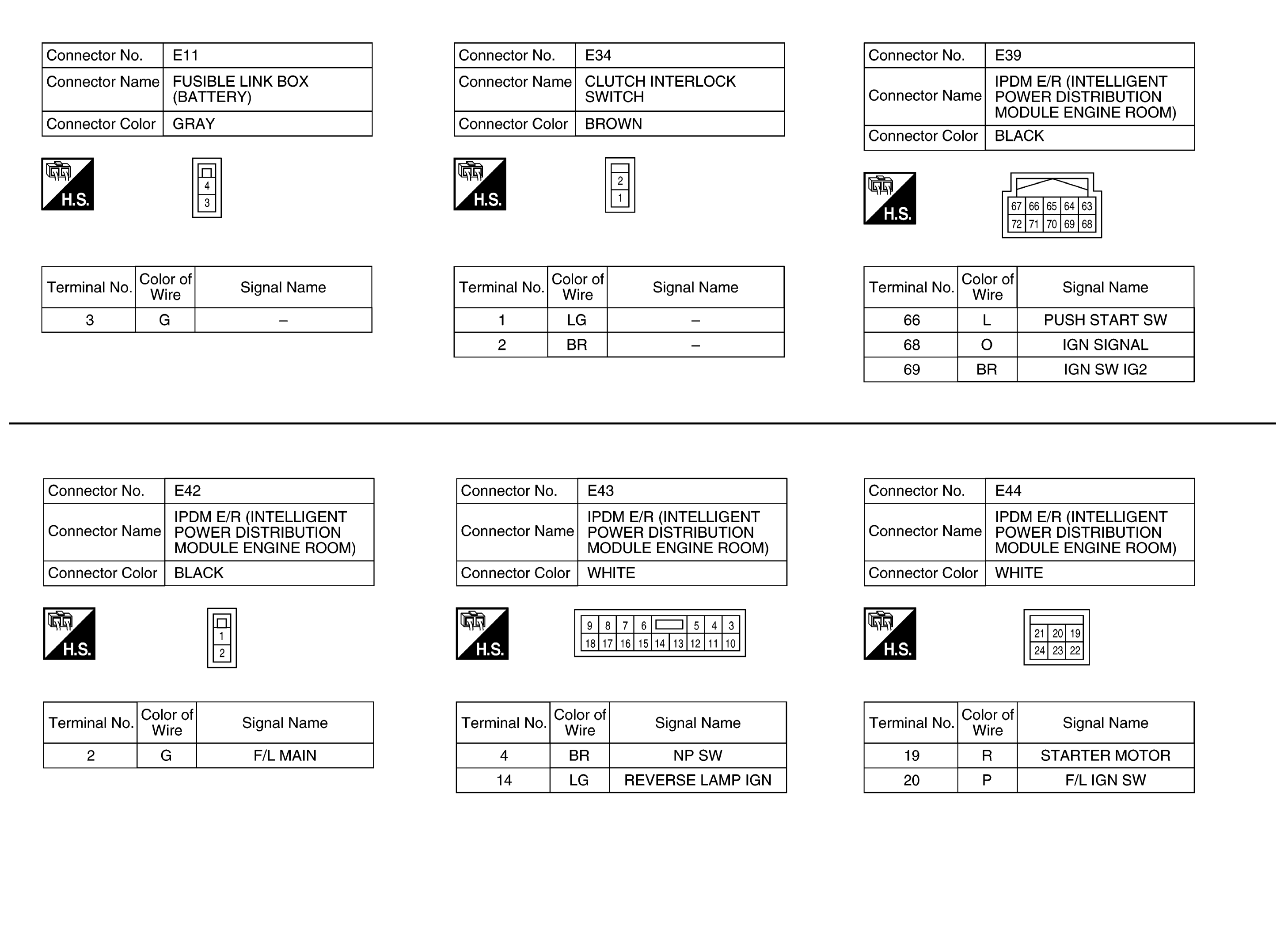

Fig 8: Power Distribution System Connector End View (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
