Exploded View With Torque Specifications

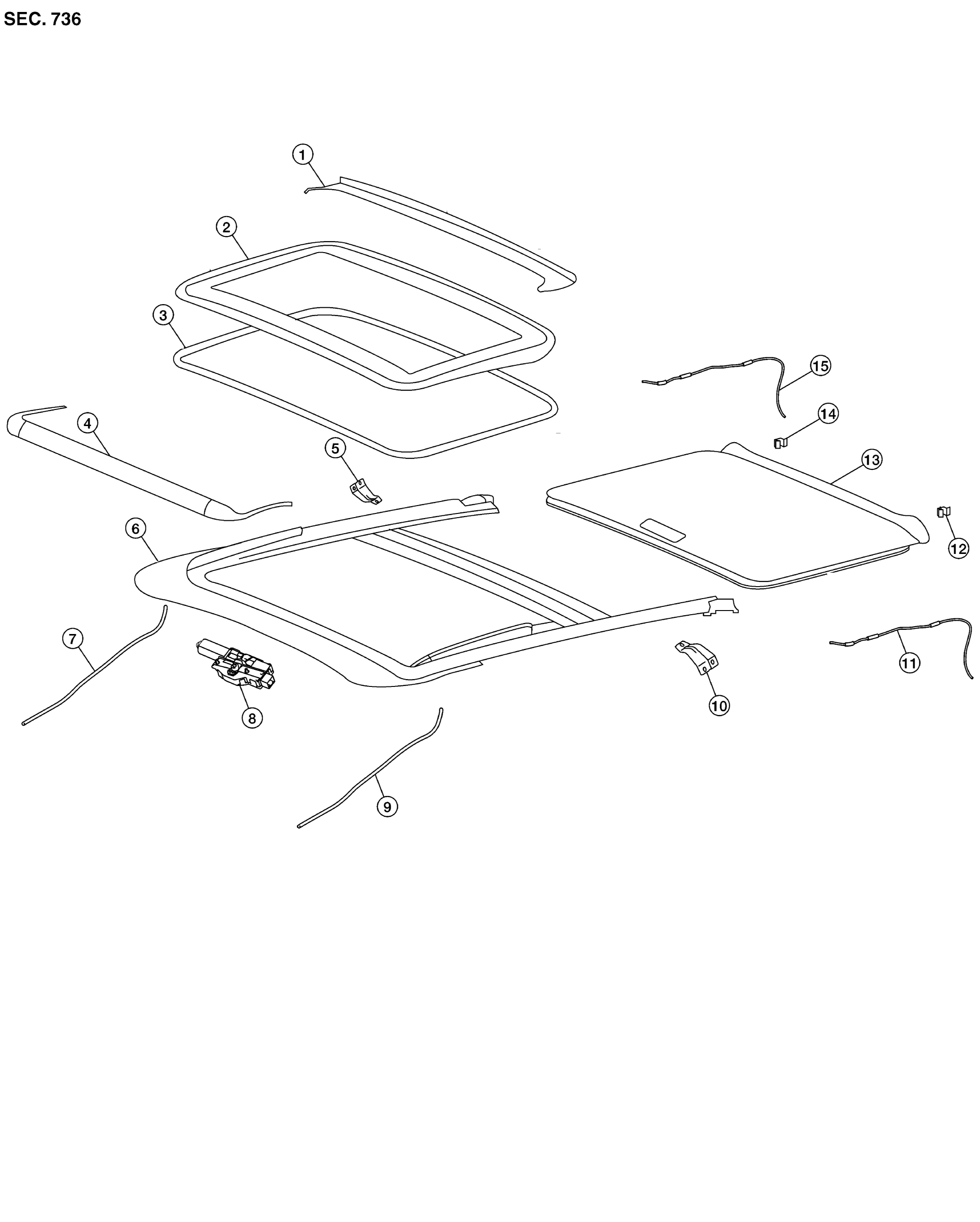

Fig 1: Exploded View Of Moonroof Unit Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Drain assembly	2.	Glass lid	3.	Weatherstrip
4.	Wind deflector	5.	Side bracket (RH)	6.	Moonroof rail assembly
7.	Drain hose front (RH)	8.	Moonroof motor assembly	9.	Drain hose front (LH)
10.	Side bracket (LH)	11.	Drain hose rear (LH)	12.	Sunshade stopper (LH)
13.	Sunshade	14.	Sunshade stopper (RH)	15.	Drain hose rear (RH)
