Component Parts Location

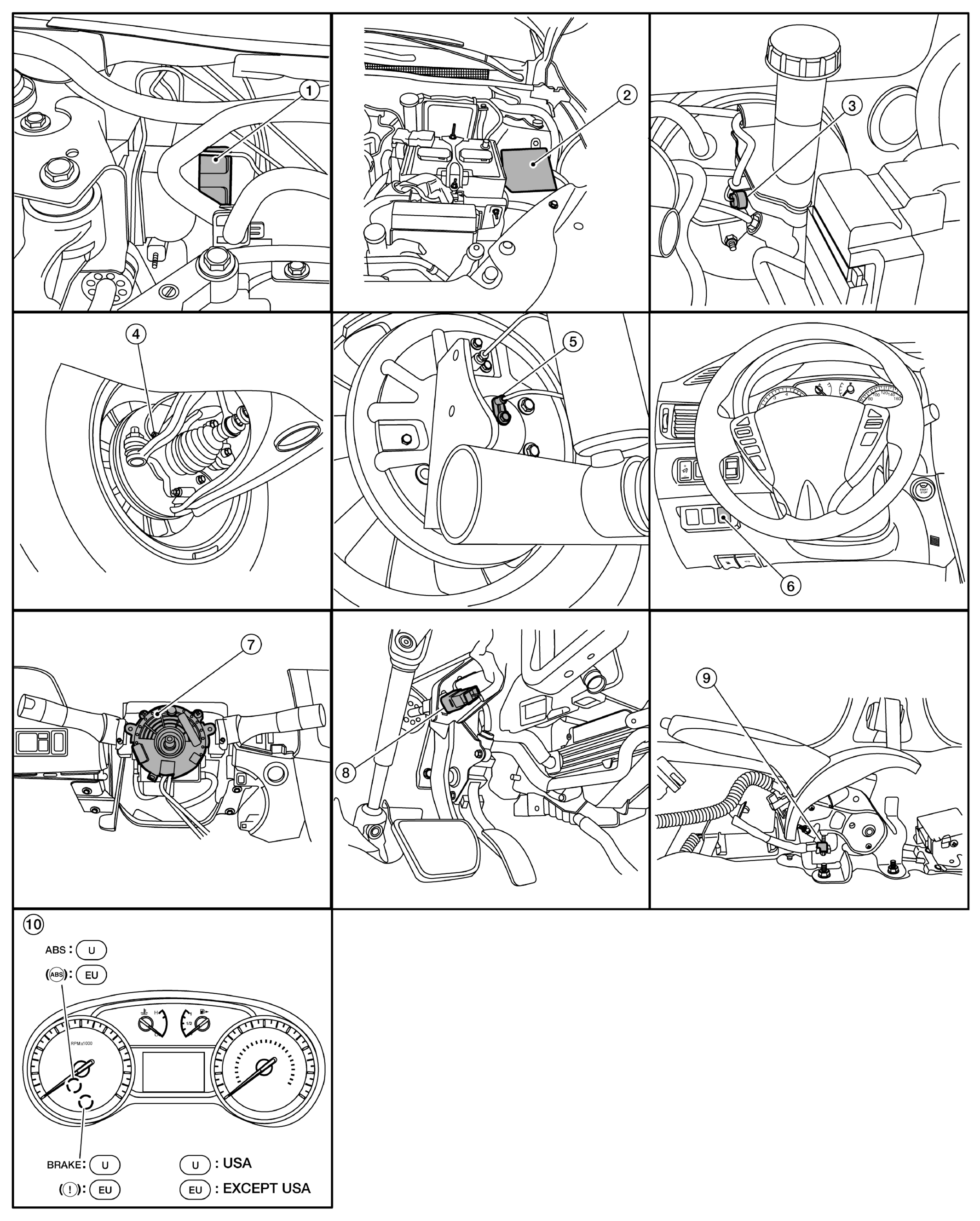

Fig 1: Brake Control System Components Location
GNSALFIA0342ZZ-342Courtesy of NISSAN NORTH AMERICA, INC.
1. ABS actuator and electric unit (control unit) 2. IPDM E/R 3. Brake fluid level switch
4. Front wheel sensor LH (RH similar) 5. Rear wheel sensor LH (RH similar) 6. VDC OFF switch
7. Steering angle sensor
(view with steering wheel removed)		 8. Stop lamp switch 9. Parking brake switch
10. Combination meter
