Exploded View With Torque Specifications

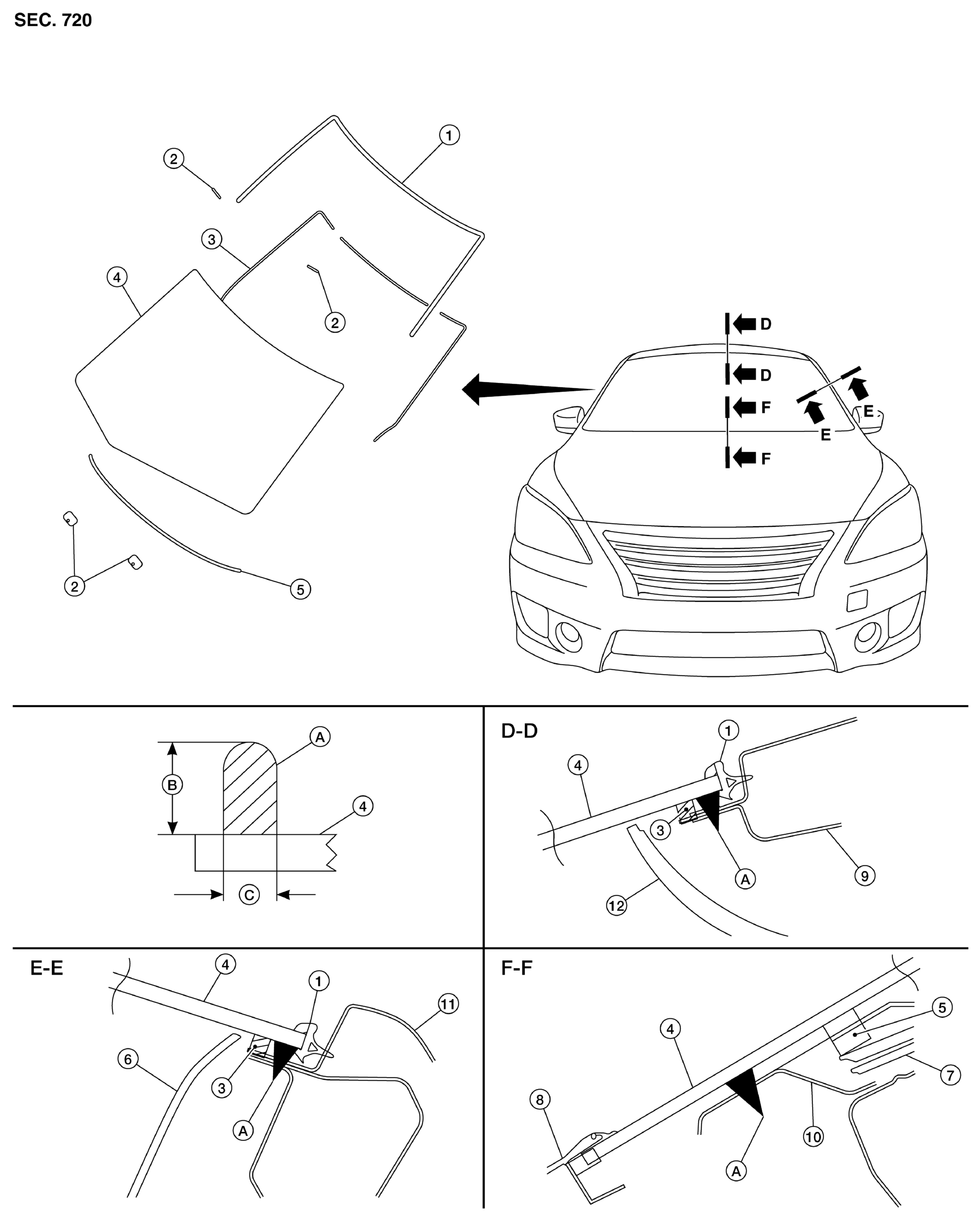

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass molding	2.	Spacer	3.	Rubber dam
4.	Windshield glass	5.	Windshield insulator	6.	Front pillar finisher
7.	Instrument panel	8.	Cowl top cover	9.	Roof panel
10.	Cowl top	11.	Body side outer	12.	Headlining
A.	Adhesive	B.	12 +2.0 mm (0.5 +0.08 in)	C.	7 +2.0 mm (0.3 +0.08 in)
