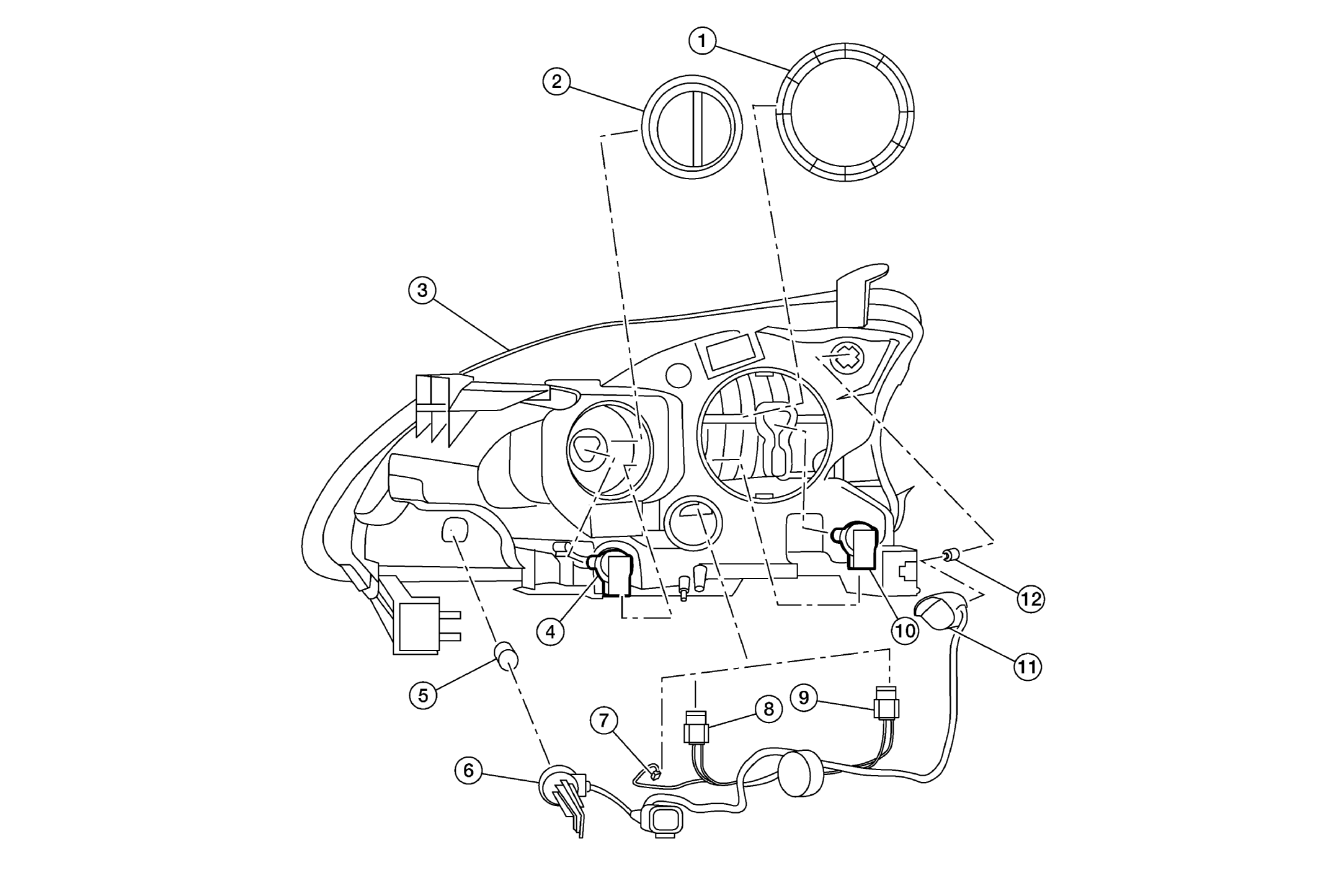

Exploded View With Torque Specifications

Fig 1: NO CONTENT

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Large cover (not serviceable)	2.	Small cover (not serviceable)	3.	Front combination lamp
4.	Halogen lamp bulb (high beam)	5.	Turn signal lamp bulb	6.	Turn signal lamp bulb socket
7.	LED harness connector	8.	Halogen lamp bulb (high beam) harness connector	9.	Halogen lamp bulb (low beam) harness connector
10.	Halogen lamp bulb (low beam)	11.	Side marker lamp bulb socket	12.	Side marker lamp bulb
