Transmission
>>
Transfer Case
>>
System Description
>>
AWD System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

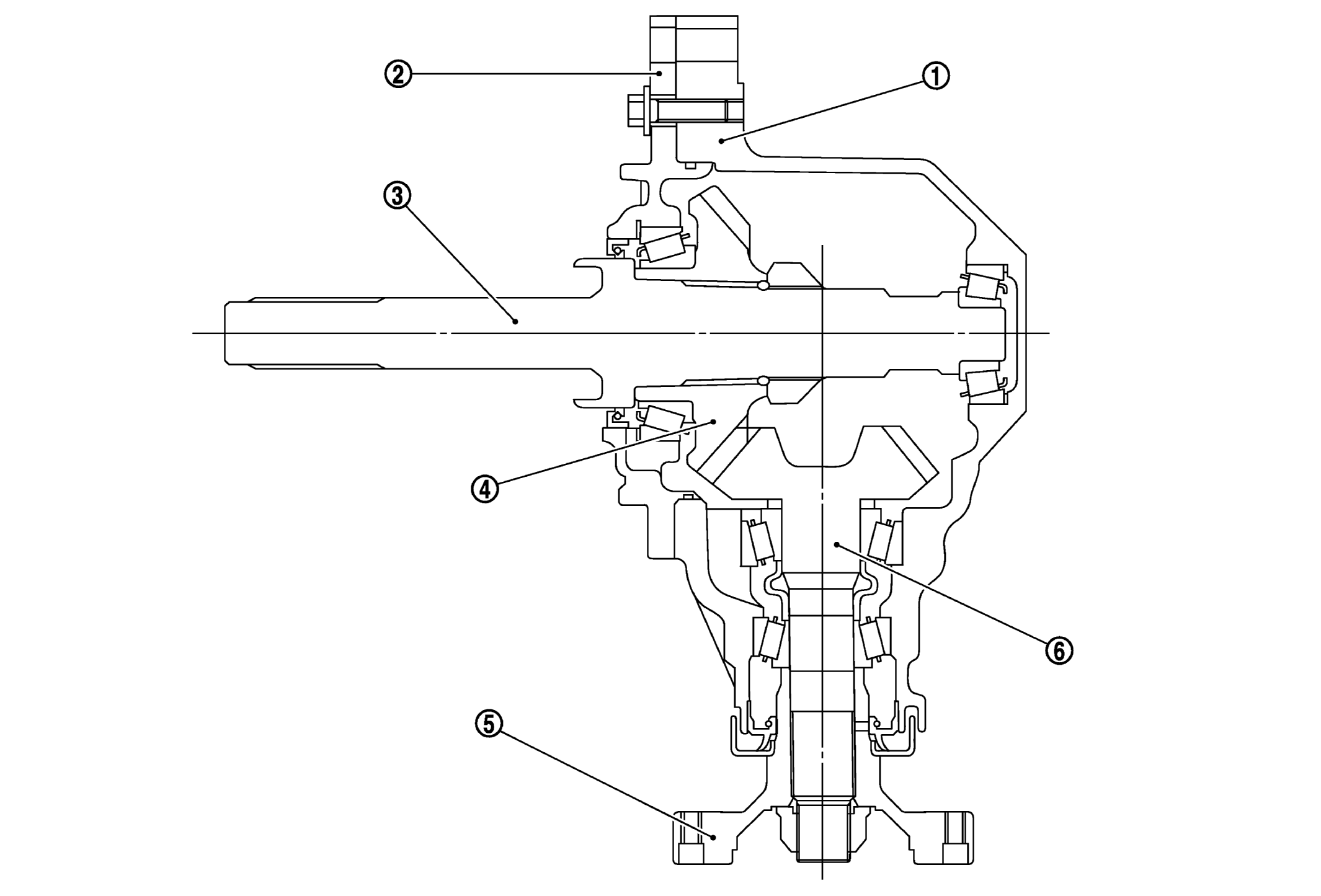

Fig 1: Cross-Sectional View Of AWD System
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transfer case
2.
Adapter case
3.
Ring gear shaft
4.
Ring gear
5.
Companion flange
6.
Drive pinion
