Exploded View With Torque Specifications

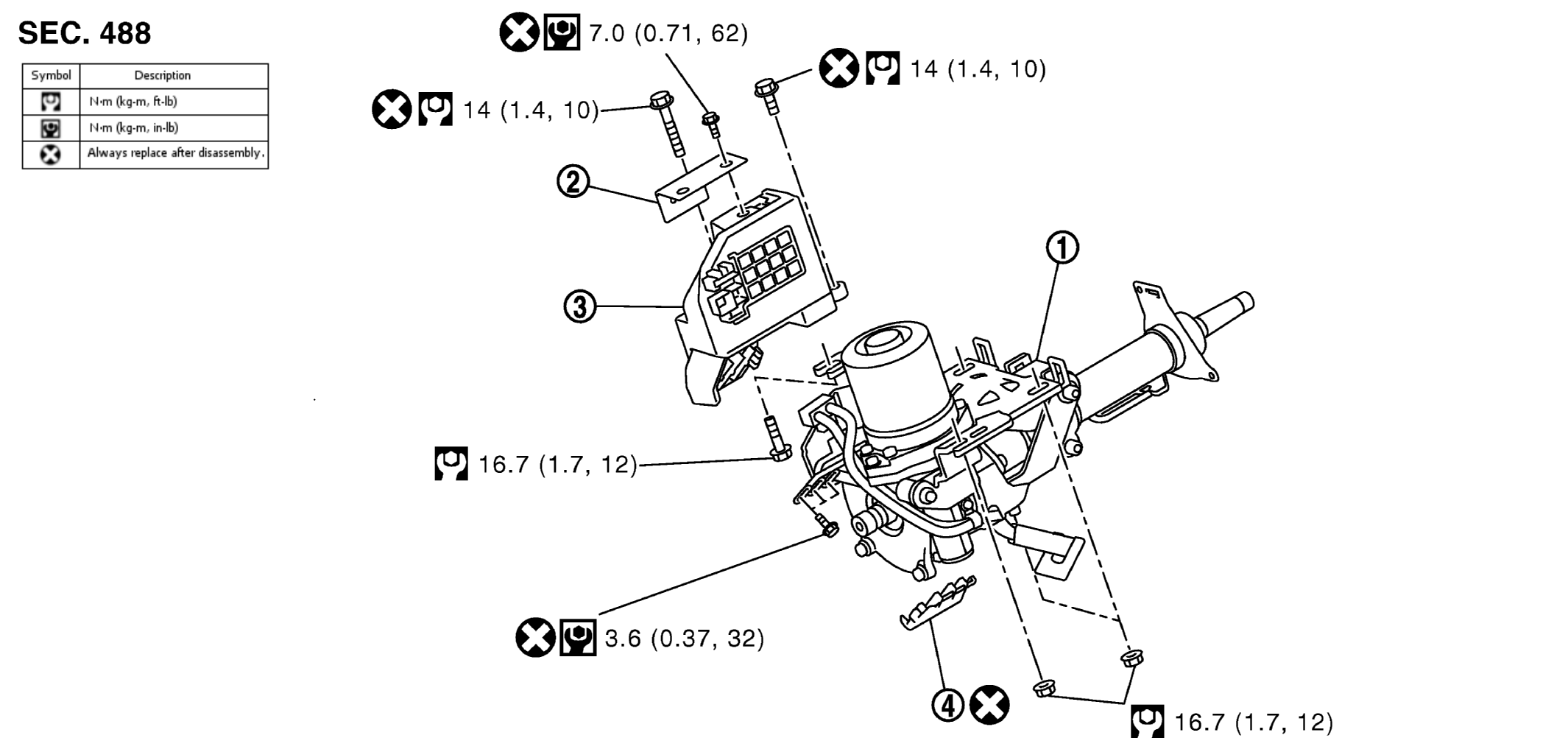

Fig 1: EPS Control Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Harness bracket	3.	EPS control unit
4.	Harness cover
Refer to COMPONENTS for symbols in the figure.
