Exploded View With Torque Specifications

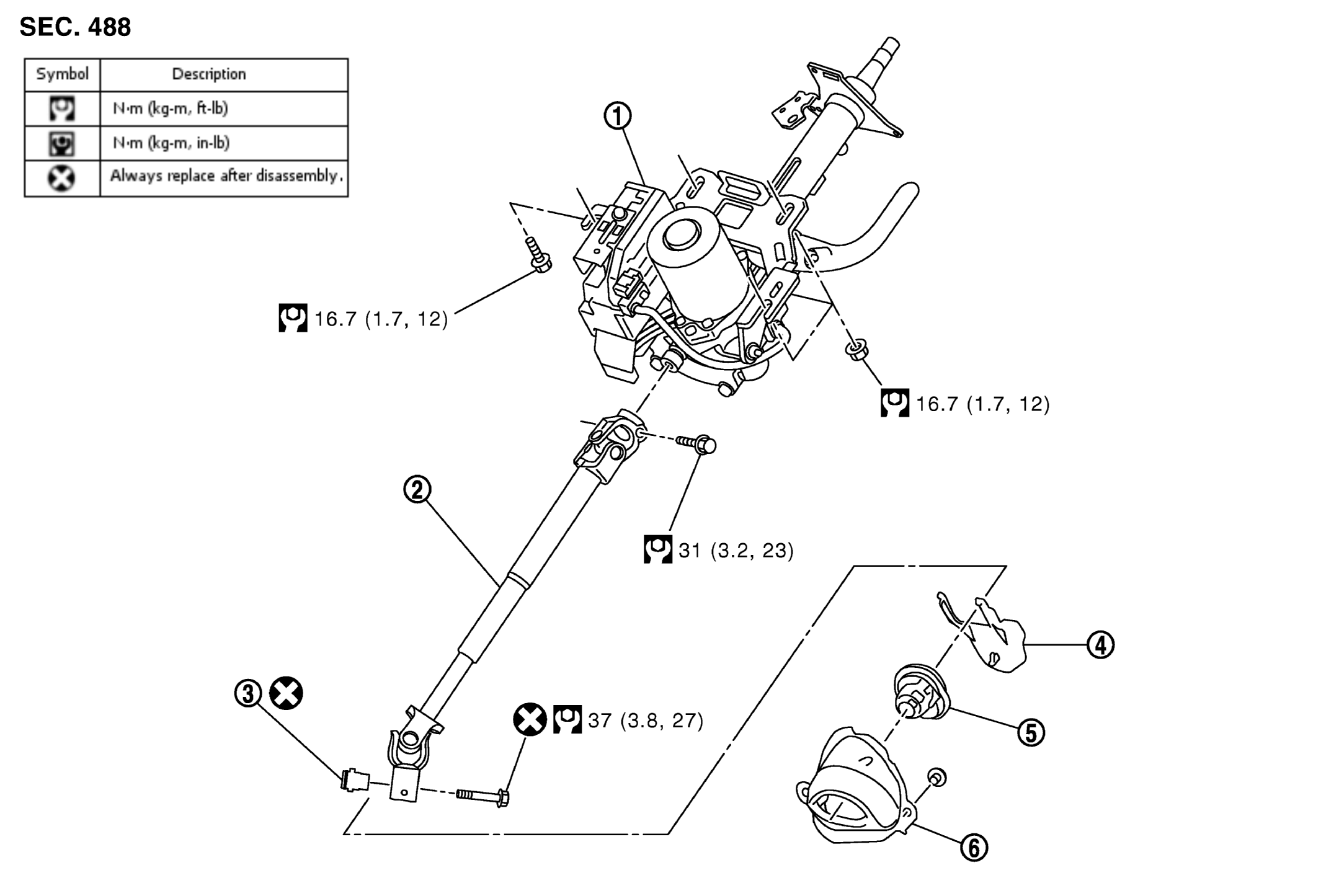

Fig 1: Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Intermediate shaft	3.	Cam nut
4.	Upper cover	5.	Dash seal	6.	Hole cover
Refer to COMPONENTS for symbols in the figure.
