Exploded View With Torque Specifications

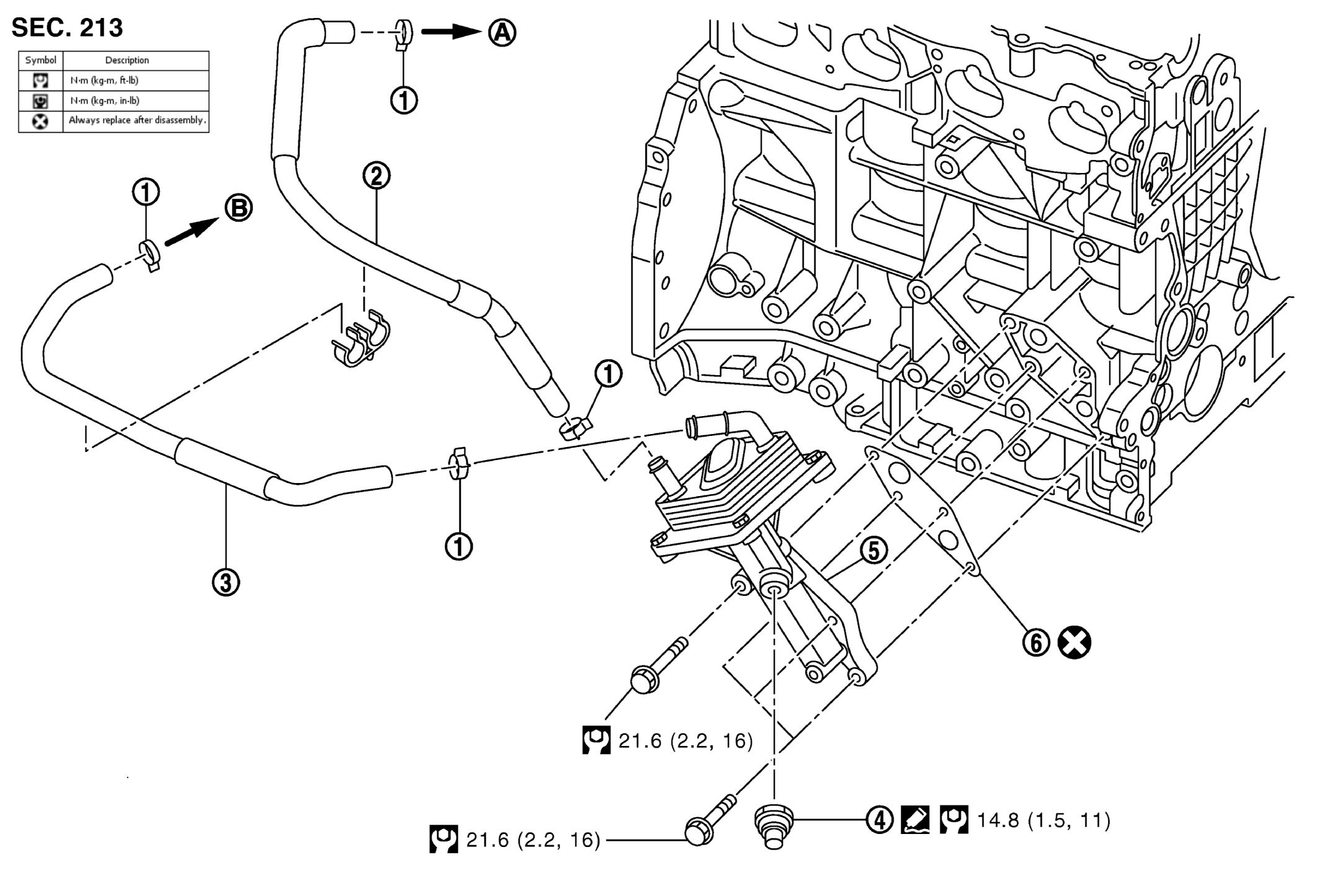

Fig 1: Exploded View Of Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water hose	3.	Water hose
4.	Oil pressure switch	5.	Oil cooler	6.	Gasket
A.	To water outlet	B.	To heater pipe
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
: Sealing point
