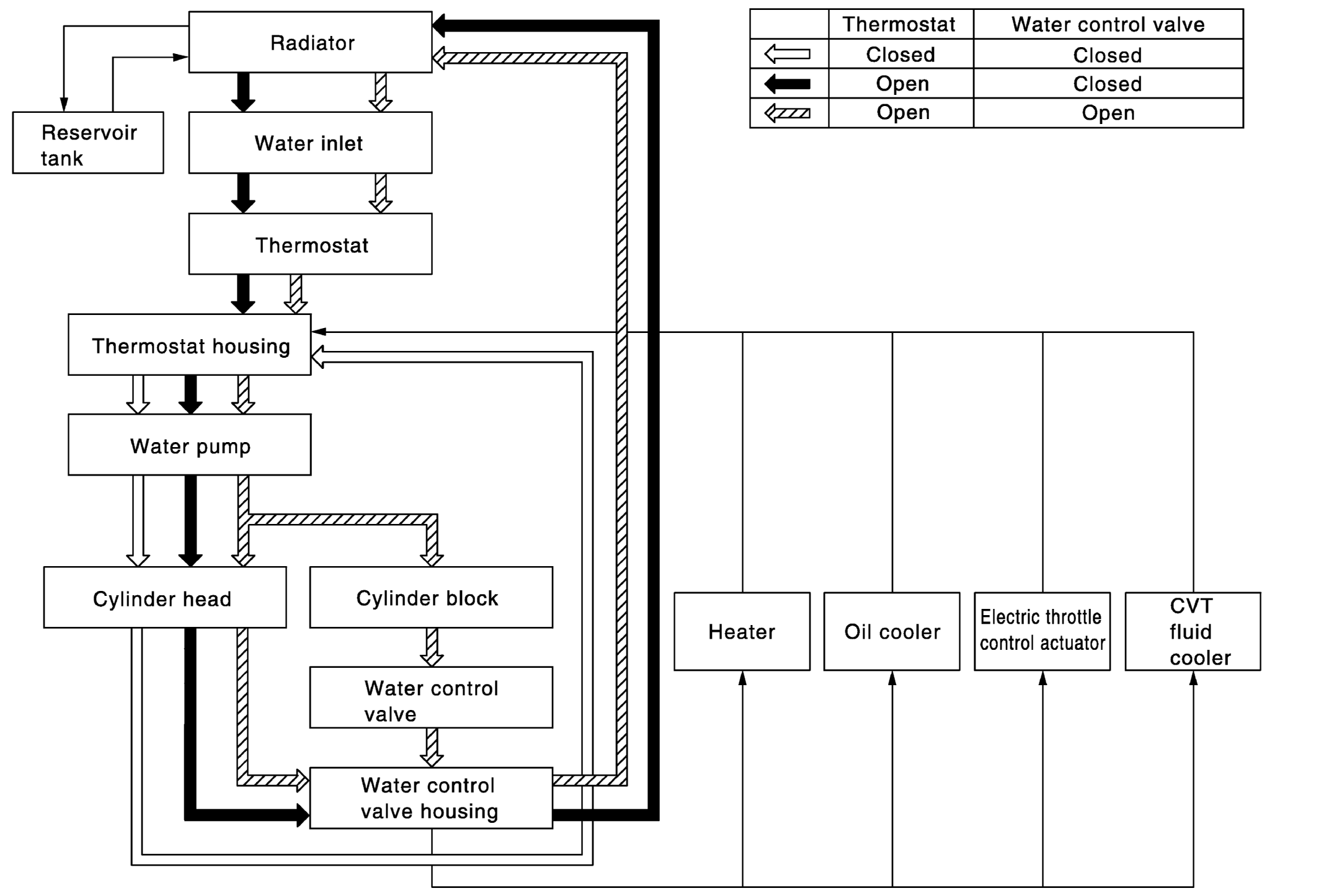

Engine Cooling System Schematic

Fig 1: Engine Cooling System Schematic

G05368853

Courtesy of NISSAN NORTH AMERICA, INC.
