Exploded View With Torque Specifications

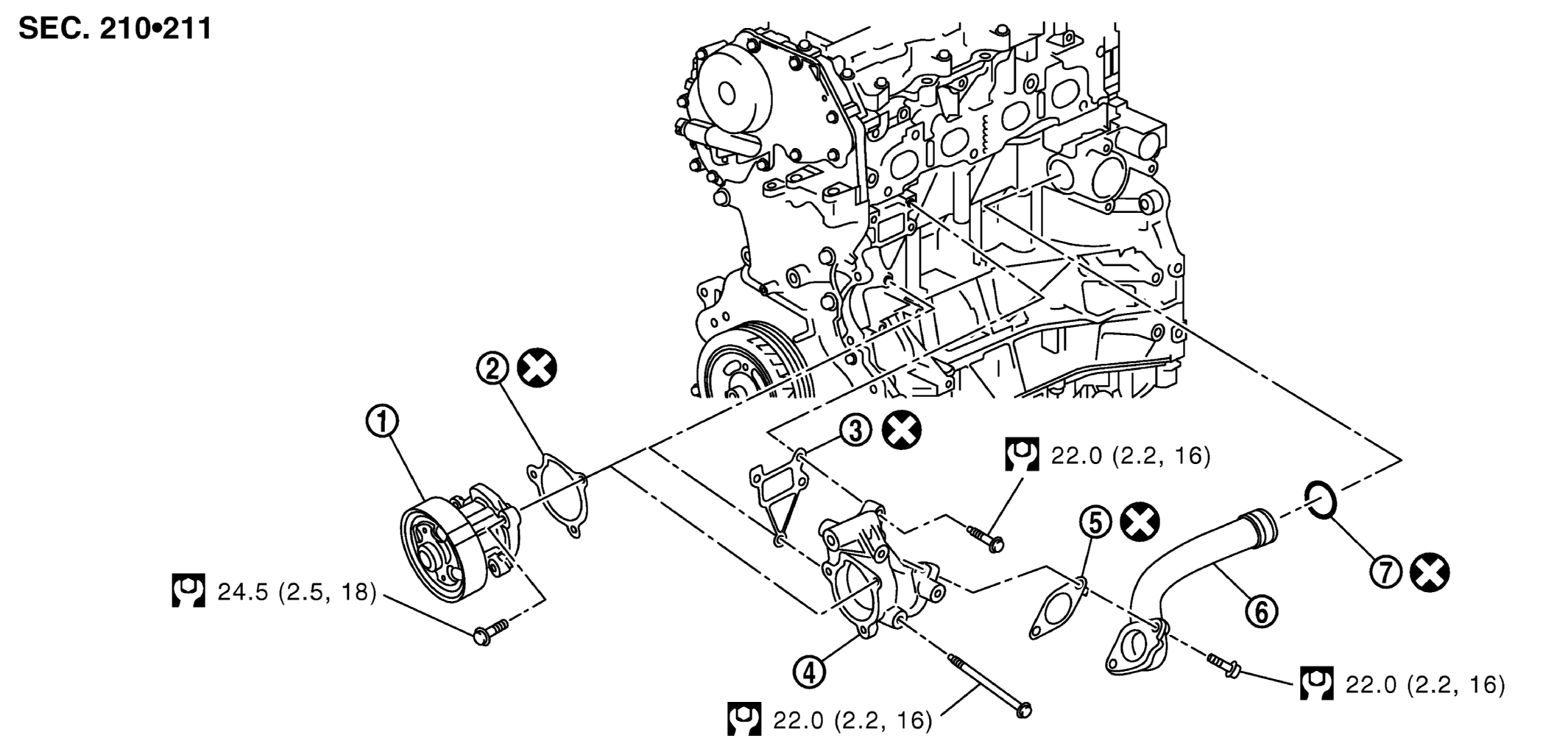

Fig 1: Exploded View Of Water Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Water pump	2.	Gasket	3.	Gasket
4.	Water pump housing	5.	Gasket	6.	Water pipe
7.	O - ring
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
