Exploded View With Torque Specifications

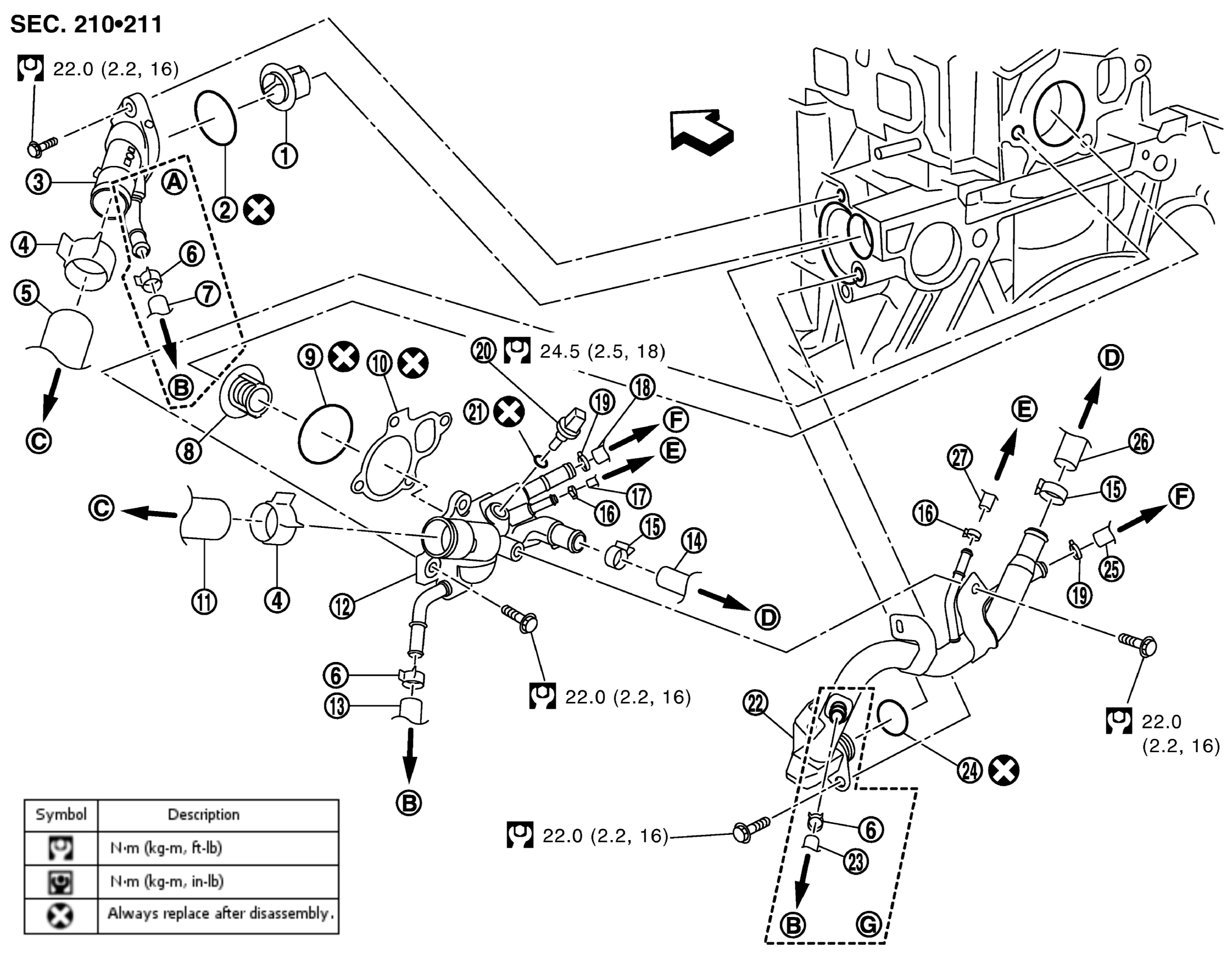

Fig 1: Exploded View Of Thermostat And Water Control Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Thermostat	2.	O - ring	3.	Water inlet
4.	Clamp	5.	Radiator hose (lower)	6.	Clamp
7.	Water hose	8.	Water control valve	9.	O - ring
10.	Gasket	11.	Radiator hose (upper)	12.	Water control valve housing (water outlet)
13.	Water hose	14.	Heater hose	15.	Clamp
16.	Clamp	17.	Water hose	18.	Water hose
19.	Clamp	20.	Engine coolant temperature sensor	21.	Washer
22.	Heater pipe	23.	Water hose	24.	O - ring
25.	Water hose	26.	Heater hose	27.	Water hose
A.	Type 1	B.	To CVT fluid cooler	C.	To radiator
D.	To heater	E.	To electric throttle control actuator	F.	To oil cooler
G.	Type 2
	: Engine front
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
