Exploded View With Torque Specifications

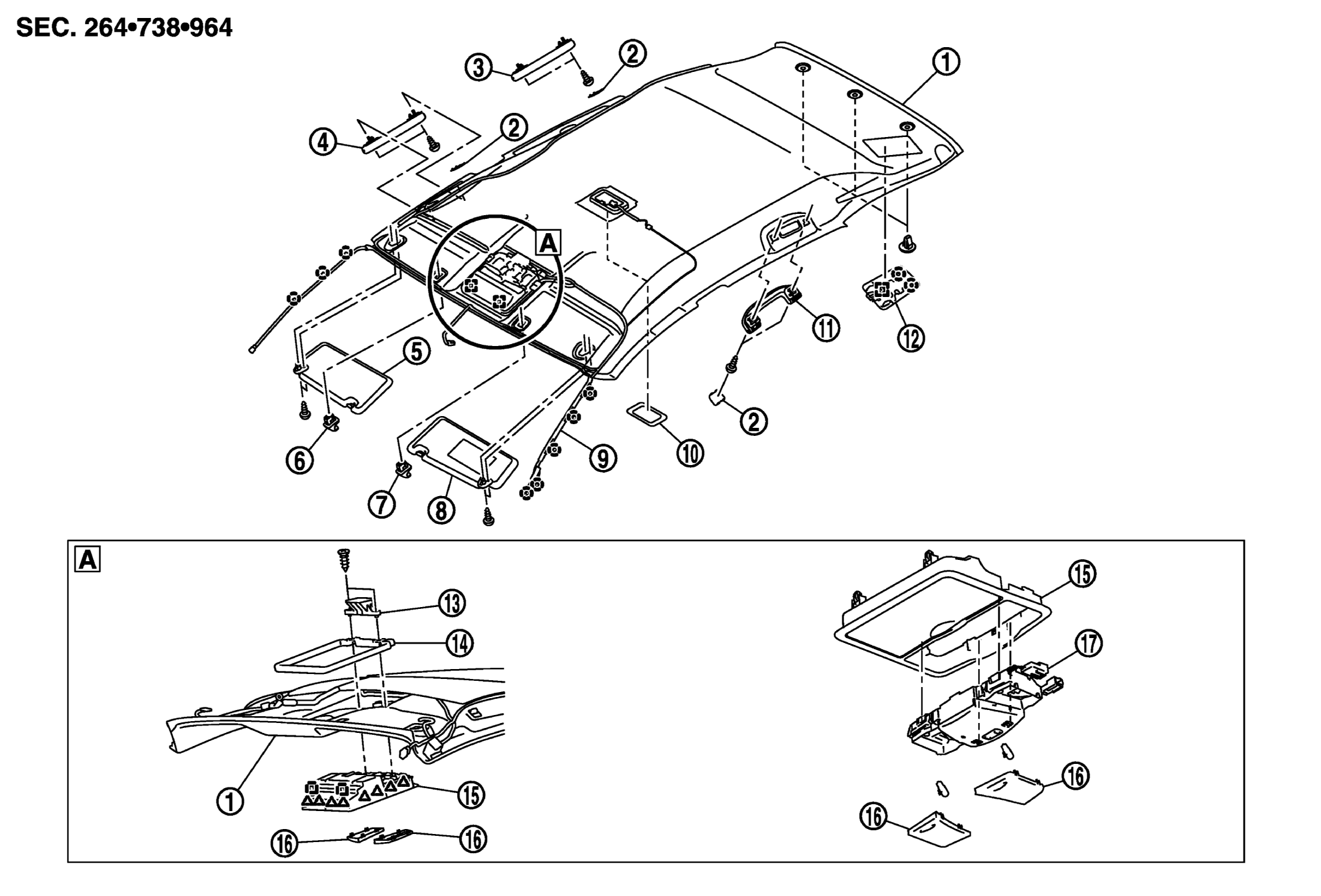

Fig 1: Exploded View Of Headlining (Normal Roof)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining assembly	2.	Assist grip cap	3.	Rear assist grip RH
4.	Front assist grip RH	5.	Sun-visor RH	6.	Sun-visor holder RH
7.	Sun-visor holder LH	8.	Sun-visor LH	9.	Roof harness
10.	Room lamp	11.	Rear assist grip LH	12.	Rear center seat belt cover
13.	Map lamp bracket	14.	Roof plate assembly	15.	Roof console assembly
16.	Map lamp lens	17.	Map lamp assembly
	: Clip
	: Pawl
	: Metal clip
