Exploded View With Torque Specifications

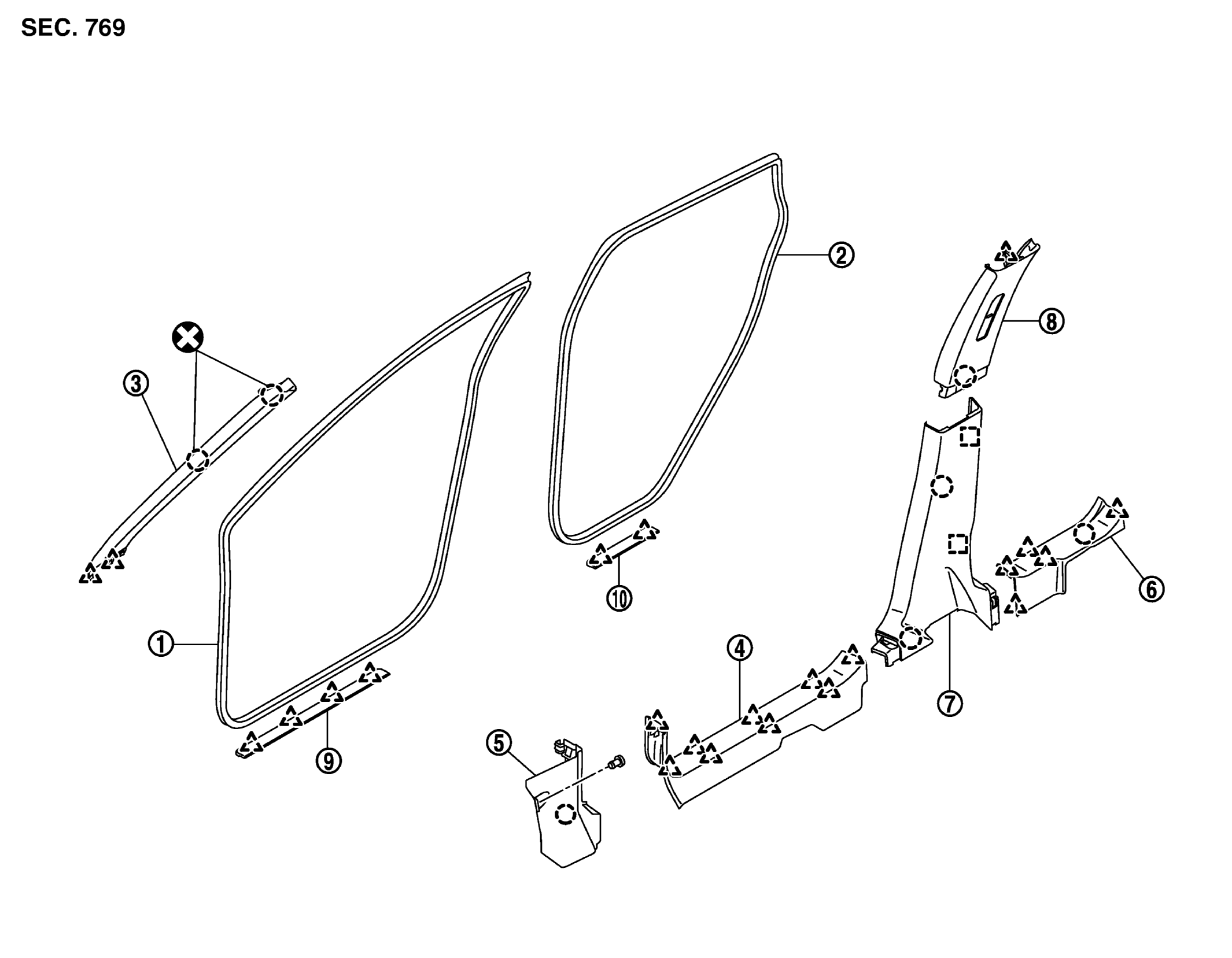

Fig 1: Exploded View Of Body Side Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front body side welt	2.	Rear body side welt	3.	Front pillar garnish
4.	Front kicking plate (inner)	5.	Dash side finisher	6.	Rear kicking plate (inner)
7.	Center pillar lower garnish	8.	Center pillar upper garnish	9.	Front kicking plate (outer)
10.	Rear kicking plate (outer)
	: Clip
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
