Exploded View With Torque Specifications

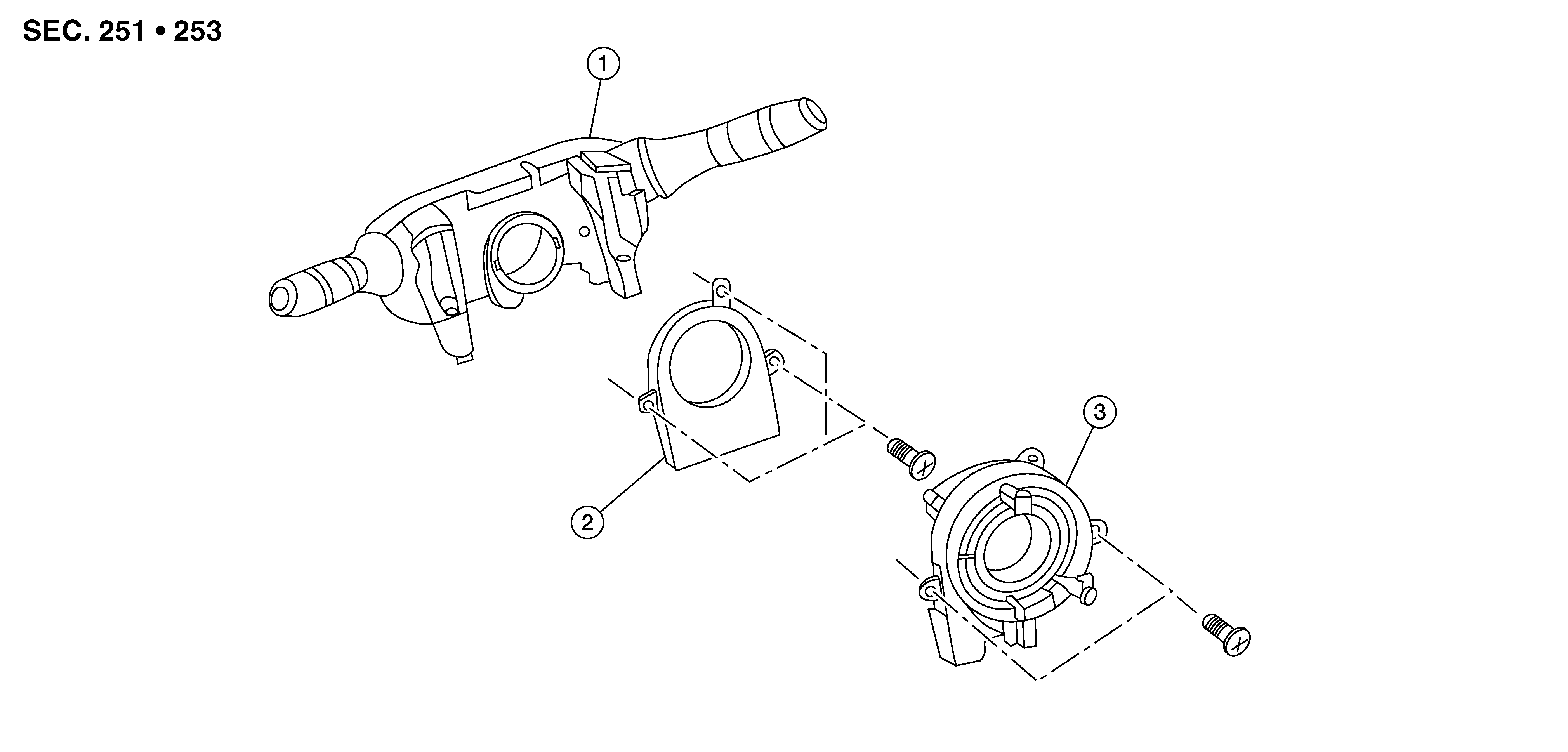

Fig 1: Exploded View Of Steering Angle Sensor

GNSALHIA0359ZZ-359

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

2.

Steering angle sensor

3.

Spiral cable
