Exploded View With Torque Specifications

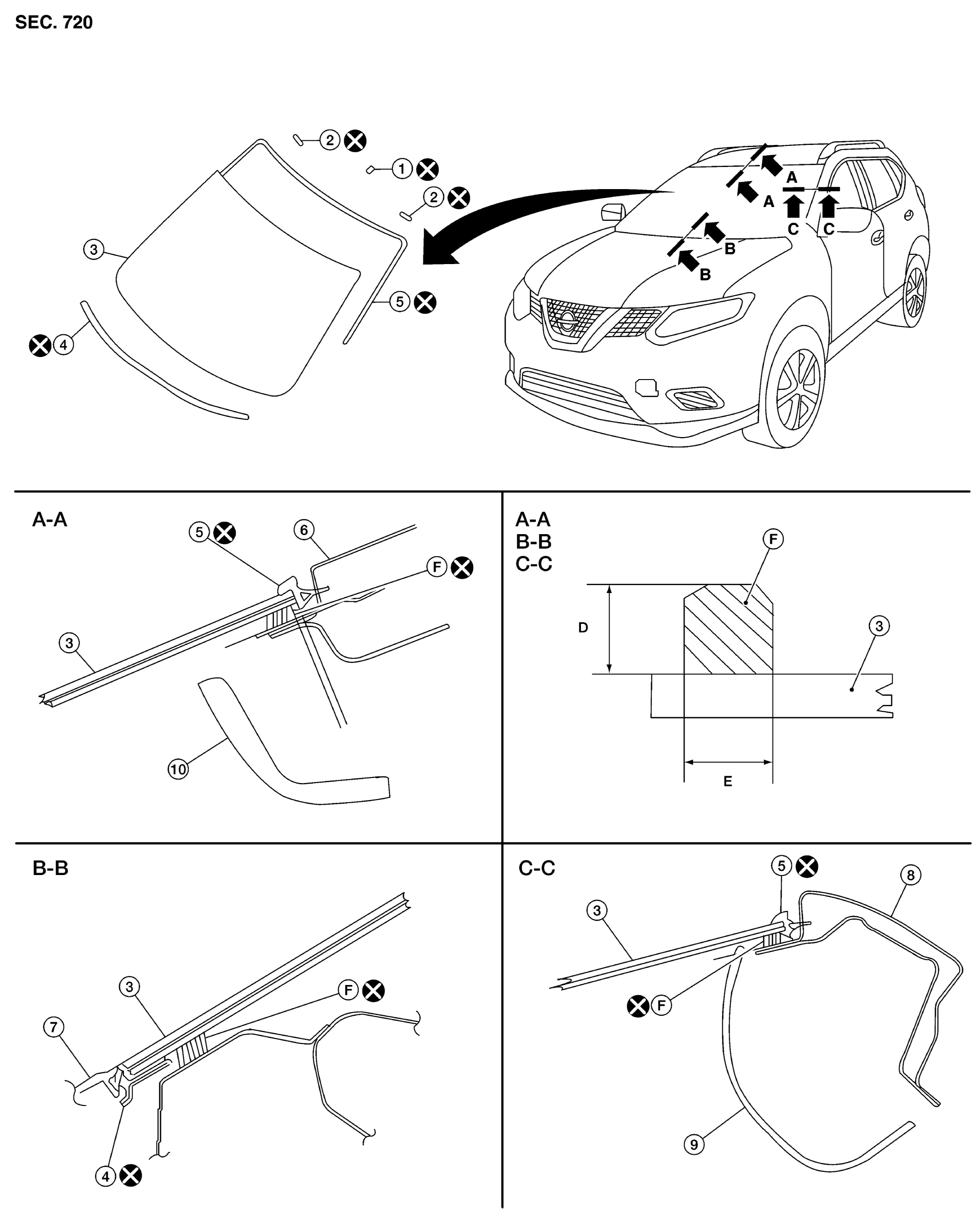

Fig 1: View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mirror base	2.	Spacer	3.	Windshield glass
4.	Windshield glass lower molding	5.	Windshield glass molding	6.	Roof
7.	Cowl top cover	8.	Body side outer	9.	Front pillar finisher
10.	Headlining	D.	12 mm (0.47 in)	E.	7.0 mm (0.28 in)
F.	Adhesive
