Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

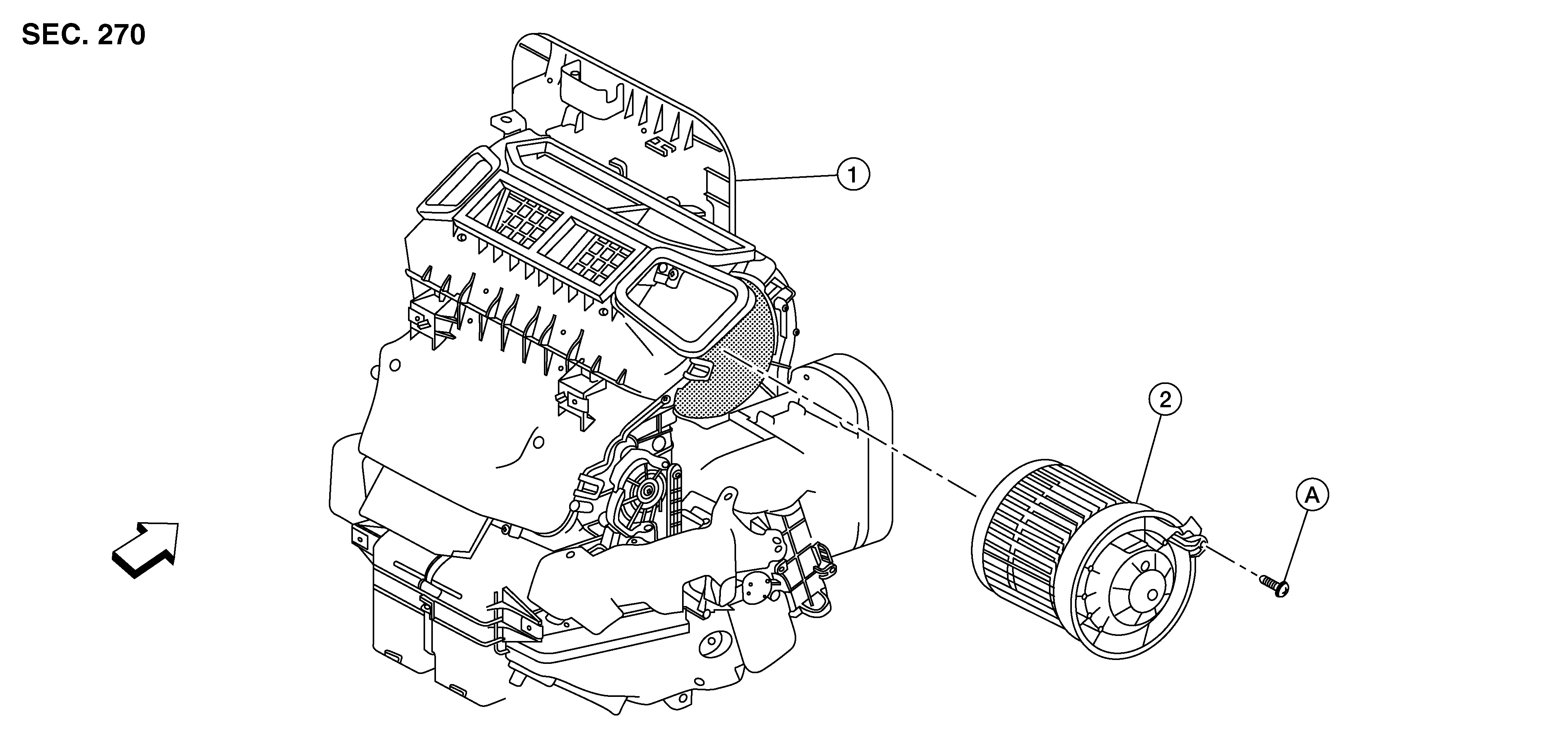

Fig 1: Exploded View Of Blower Motor

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heating and cooling unit assembly	2.	Blower motor	A.	Screw
	Front
