Engine Cooling System
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

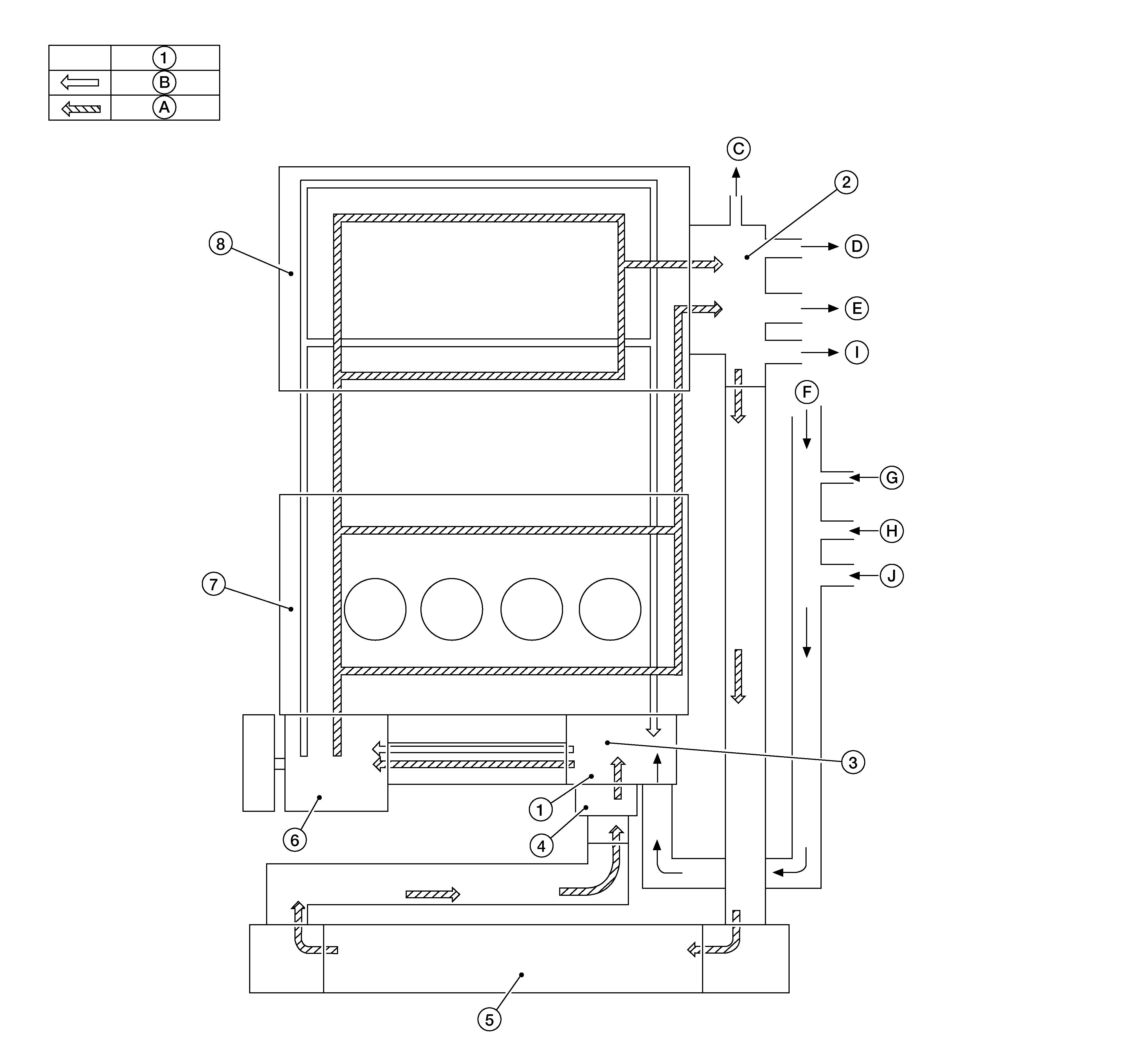

| 1. | Thermostat | 2. | Water outlet | 3. | Cylinder block (Thermostat housing) |
| 4. | Water inlet | 5. | Radiator | 6. | Water pump |
| 7. | Cylinder block | 8. | Cylinder head | A. | Open |
| B. | Closed | C. | To electric throttle control actuator | D. | To oil cooler |
| E. | To heater | F. | From heater | G. | From electric throttle control actuator |
| H. | From oil cooler | I. | To CVT oil warmer | J. | From CVT oil warmer |
