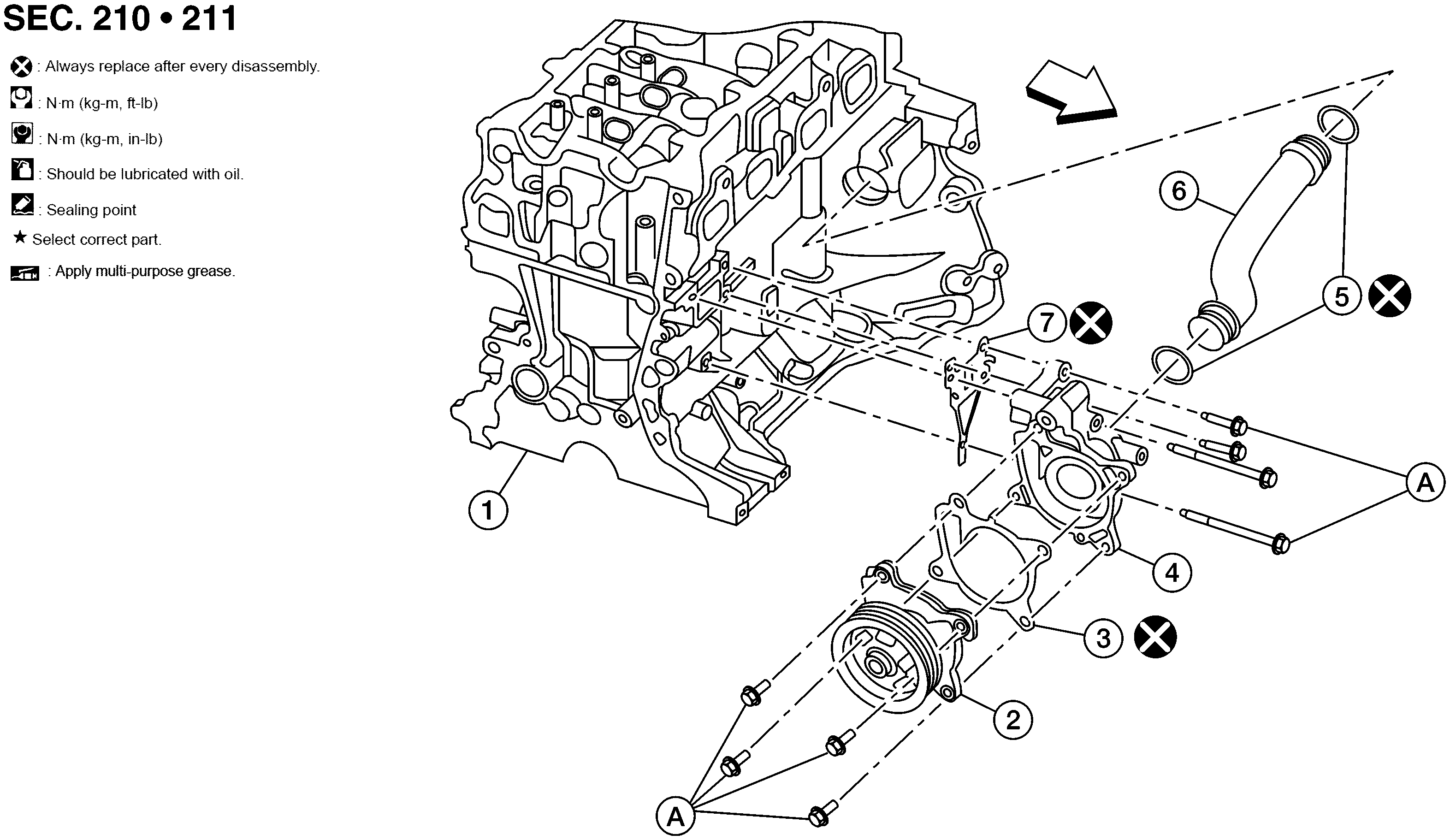

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Cylinder block |
2. |
Water pump |
3. |
Water pump gasket |
| 4. |
Water pump housing |
5. |
O-ring |
6. |
Water pipe |
| 7. |
Water pump housing gasket |
A. |
Refer to INSTALLATION |
 |
Front |
