Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

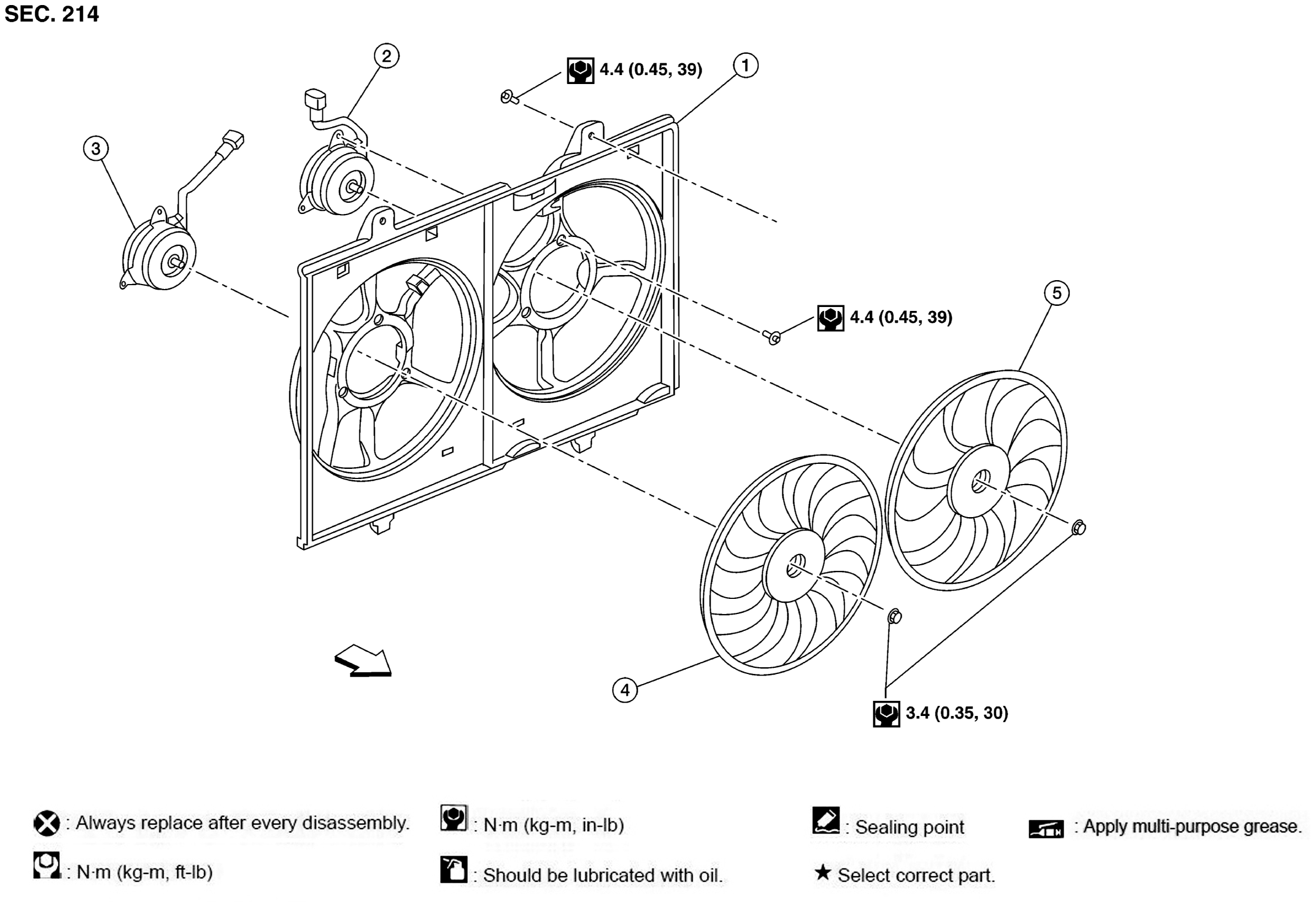

Fig 1: Exploded View Of Cooling Fan With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fan shroud	2.	Fan motor (LH)	3.	Fan motor (RH)
4.	Cooling fan (RH)	5.	Cooling fan (LH)		Front
