Engine Lubrication System

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

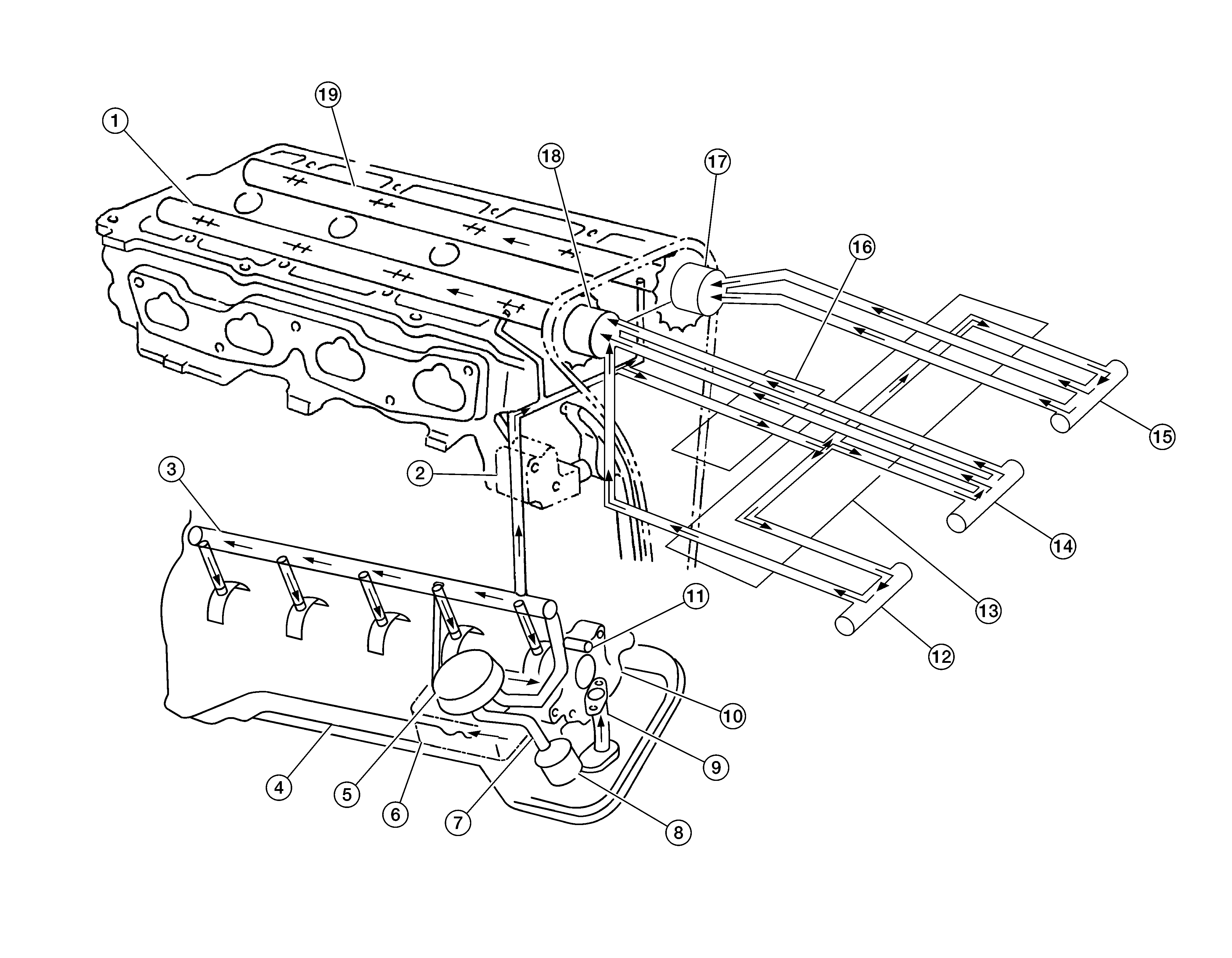

Fig 1: Lubrication System Flow Circuit Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Camshaft (INT)	2.	Chain tensioner	3.	Main gallery
4.	Oil pan	5.	Oil cooler	6.	Balancer unit
7.	Oil pan oil gallery	8.	Oil filter (with relief valve)	9.	Oil Strainer
10.	Oil pump	11.	Timing chain and balancer unit timing chain oil jet	12.	Intake valve timing intermediate lock control solenoid valve
13.	Intake valve timing control cover	14.	Intake valve timing control solenoid valve	15.	Exhaust valve timing control solenoid valve
16.	Front cover	17.	Exhaust valve timing controller	18.	Intake valve timing controller
19.	Camshaft (EXH)
