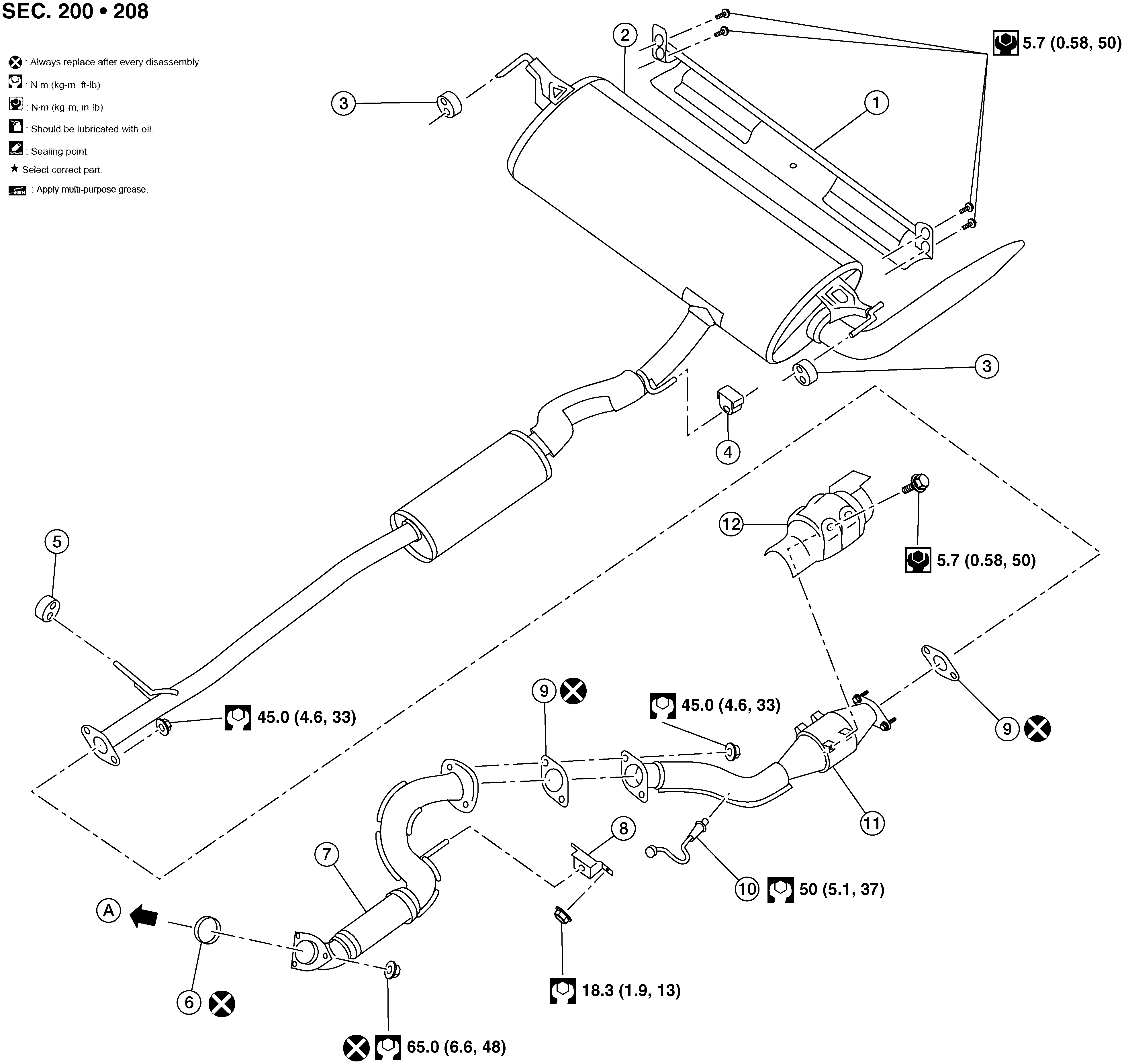

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Exhaust diffuser | 2. | Muffler assembly | 3. | Mounting rubber |
| 4. | Mounting rubber | 5. | Mounting rubber | 6. | Ring gasket |
| 7. | Front exhaust tube | 8. | Mounting rubber | 9. | Exhaust gasket |
| 10. | Heated oxygen sensor rear | 11. | Center exhaust tube | 12. | Catalyst shroud |
| A. | To exhaust manifold and three way catalyst |
