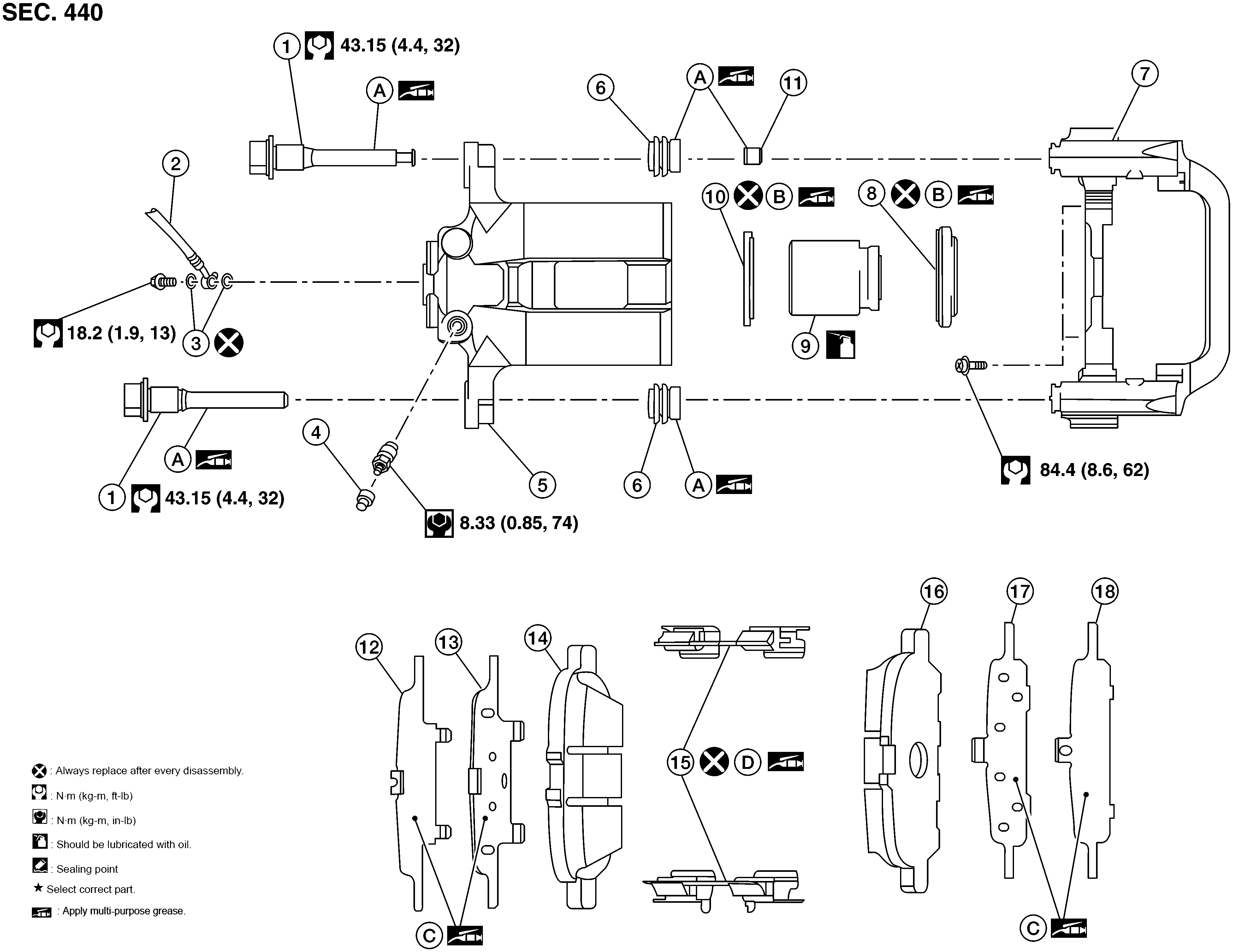

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Slide pin bolt |
2. |
Slide pin bolt bushing |
3. |
Cap |
| 4. |
Bleeder valve |
5. |
Brake caliper body |
6. |
Piston seal |
| 7. |
Piston |
8. |
Piston boot |
9. |
Slide pin boot |
| 10. |
Torque member |
A. |
Niglube Rx-2 |
B. |
Rubber grease |
 |
Apply brake fluid |
|
|
|
|
