Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

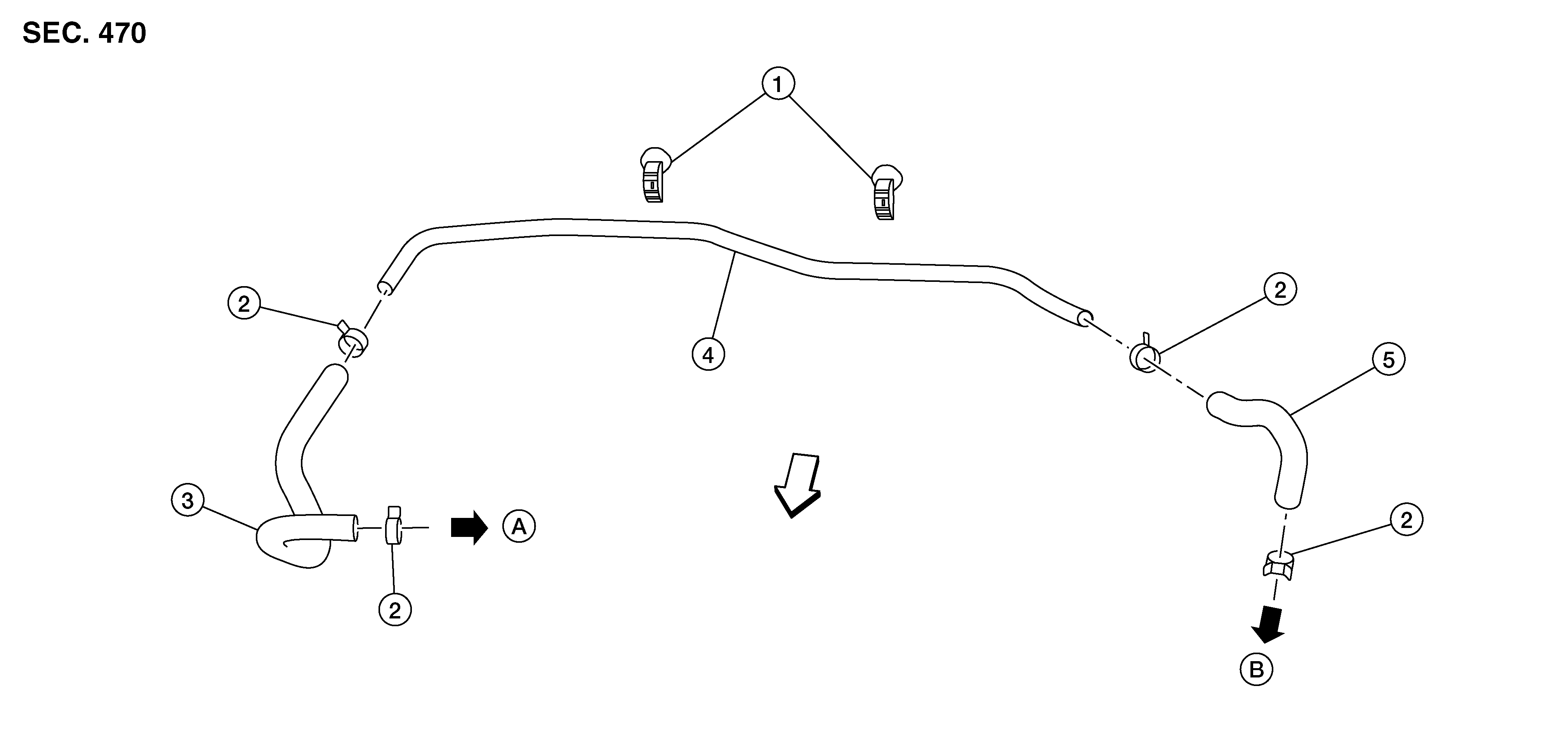

Fig 1: Exploded View Of Vacuum Lines

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clip	2.	Clamp	3.	Vacuum hose
4.	Vacuum tube	5.	Vacuum hose
A.	To intake manifold	B.	To brake booster		Front
