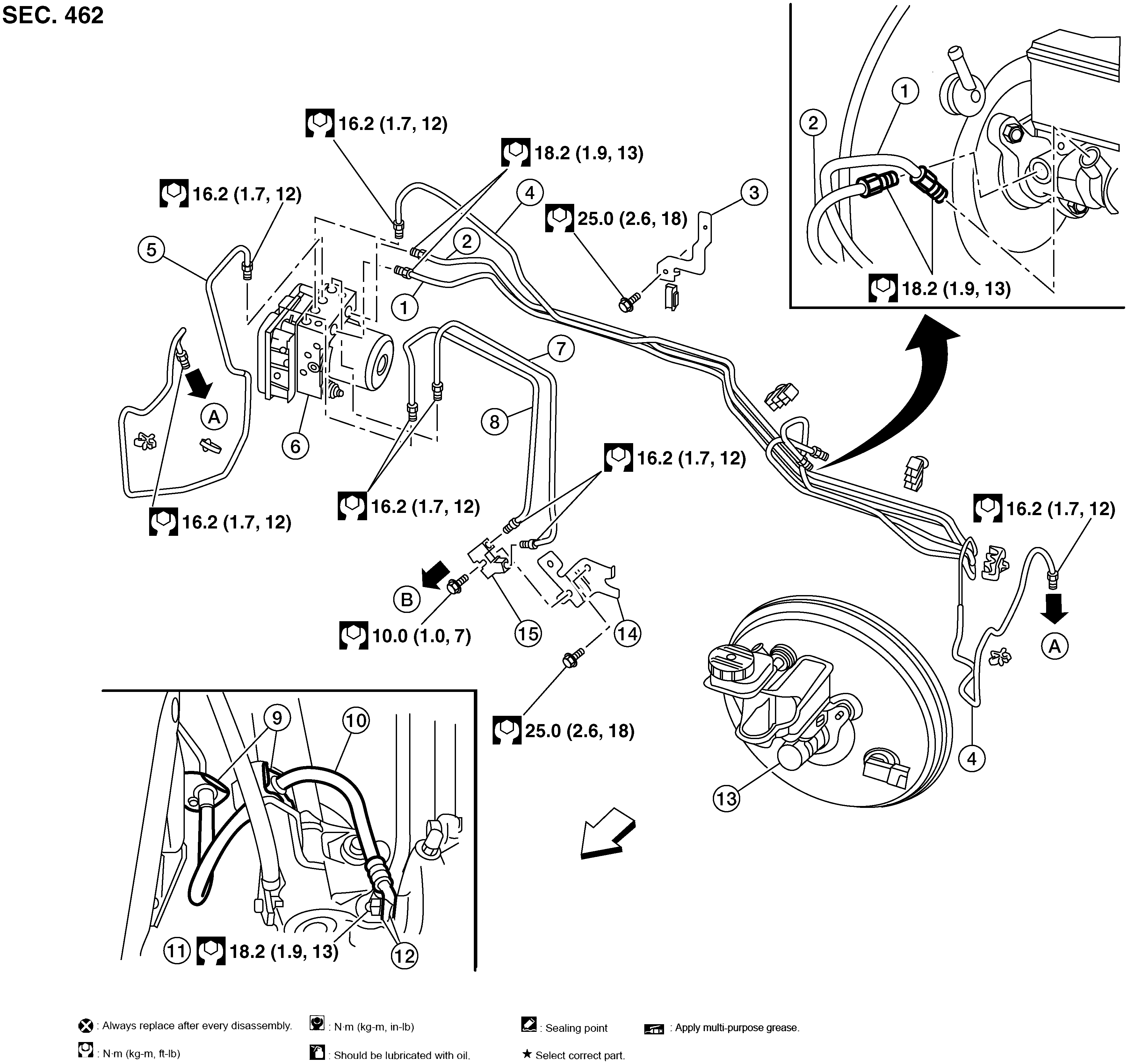

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Master cylinder secondary to ABS actuator brake tube | 2. | Master cylinder primary to ABS actuator brake tube | 3. | Brake tube bracket |
| 4. | Brake tube (LH) | 5. | Brake tube (RH) | 6. | ABS actuator and electric unit (control unit) |
| 7. | ABS actuator to connector brake tube (LH) | 8. | ABS actuator to connector brake tube (RH) | 9. | Lock plate |
| 10. | Front brake hose | 11. | Union bolt | 12. | Copper sealing washers |
| 13. | Master cylinder | 14. | Connector bracket | 15. | Connector |
| A. | To front brake hose | B. | To rear brake tube | Front |
