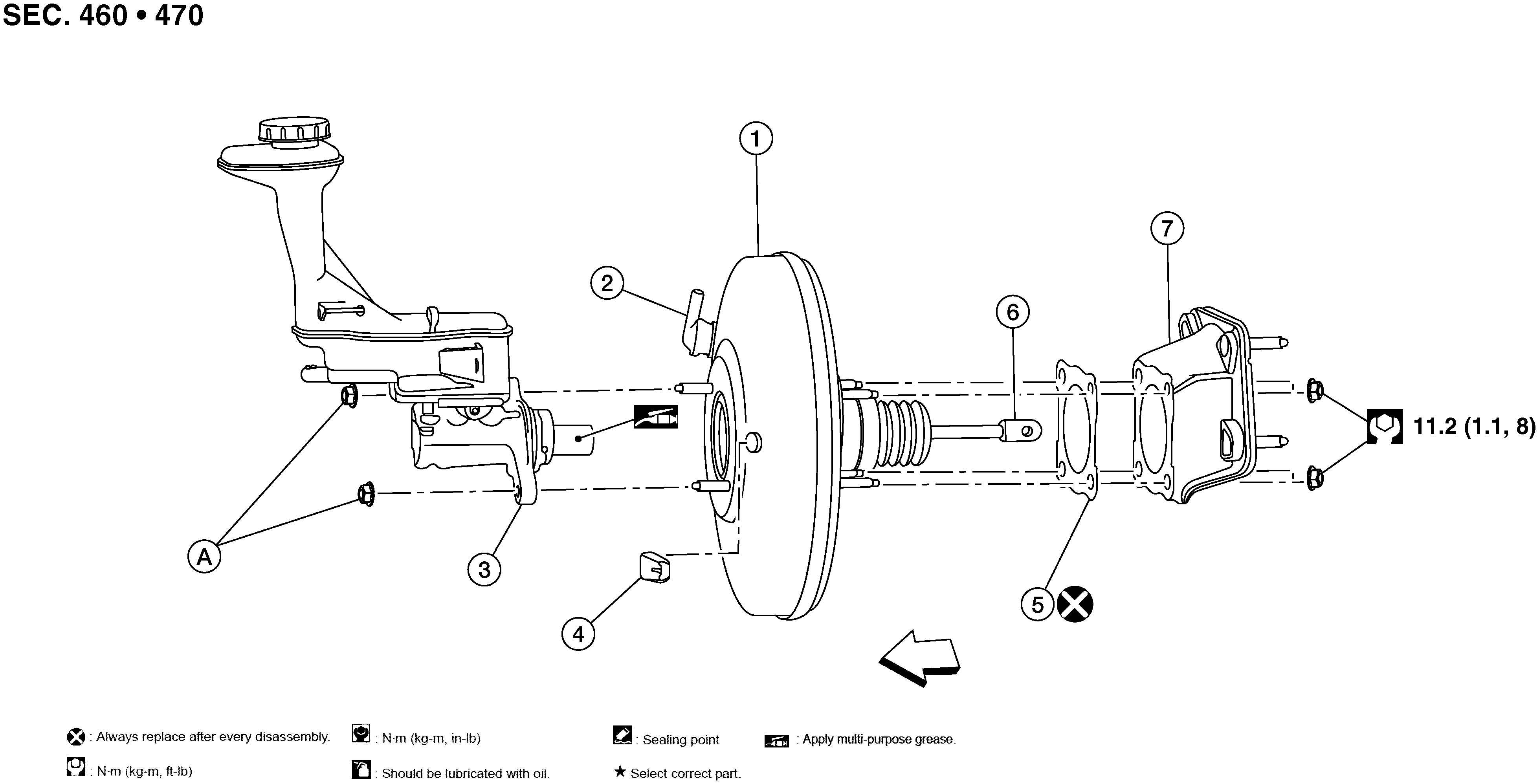

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
USA Production
| 1. | Brake booster | 2. | Check valve | 3. | Master cylinder |
| 4. | Brake booster pressure sensor | 5. | Gasket | 6. | Clevis pin |
| 7. | Spacer | A. | Refer to EXPLODED VIEW | Front |
