Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

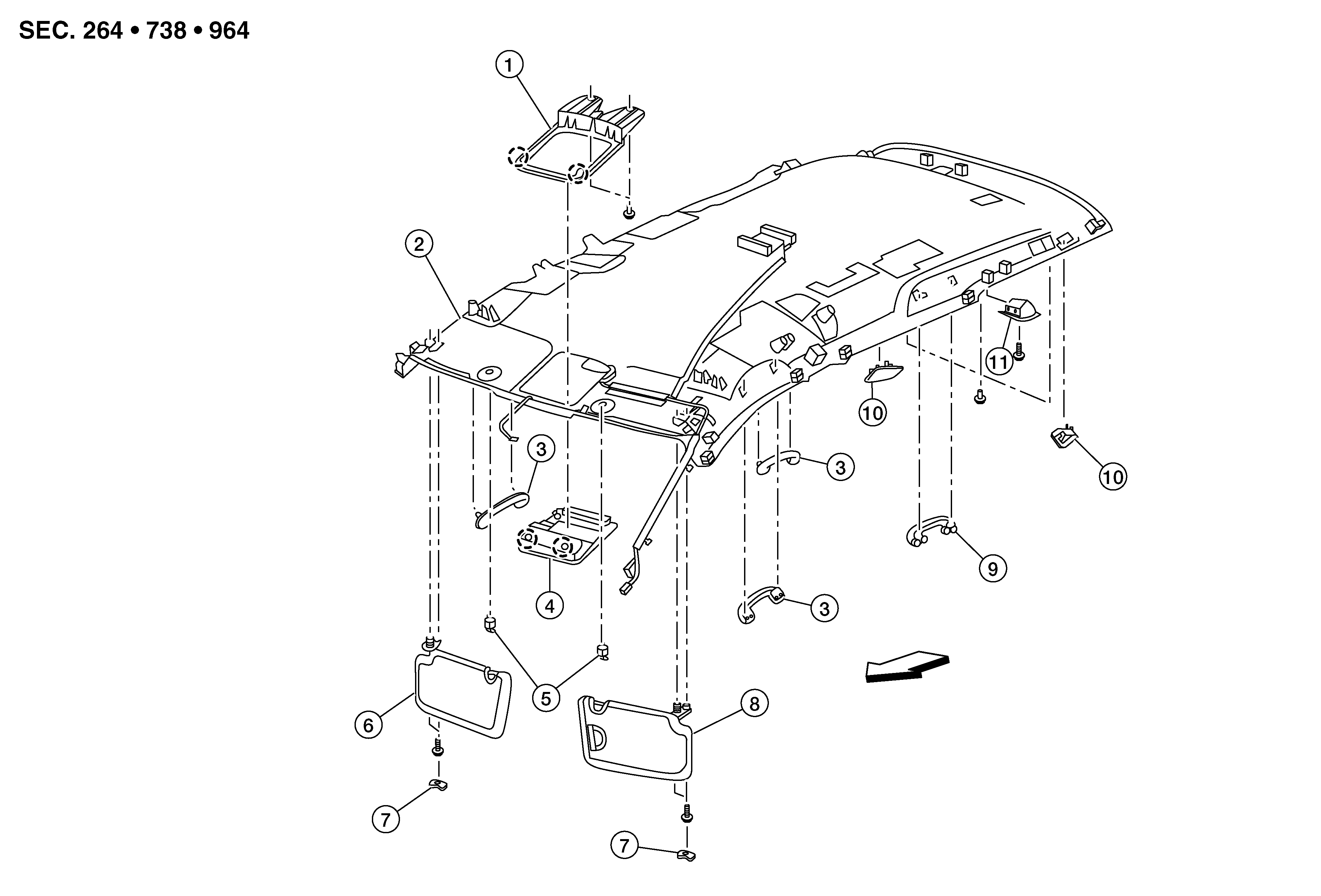

WITHOUT MOONROOF
| 1. | Map lamp assembly bracket | 2. | Headlining | 3. | Assist grip (without coat hanger) |
| 4. | Map lamp assembly | 5. | Sun visor holder (LH/RH) | 6. | Sun visor (RH) |
| 7. | Sun visor cover | 8. | Sun visor (LH) | 9. | Assist grip (with coat hanger) |
| 10. | Headlining cover | 11. | Top tether strap child restraint finisher | Front | |
| Pawl |

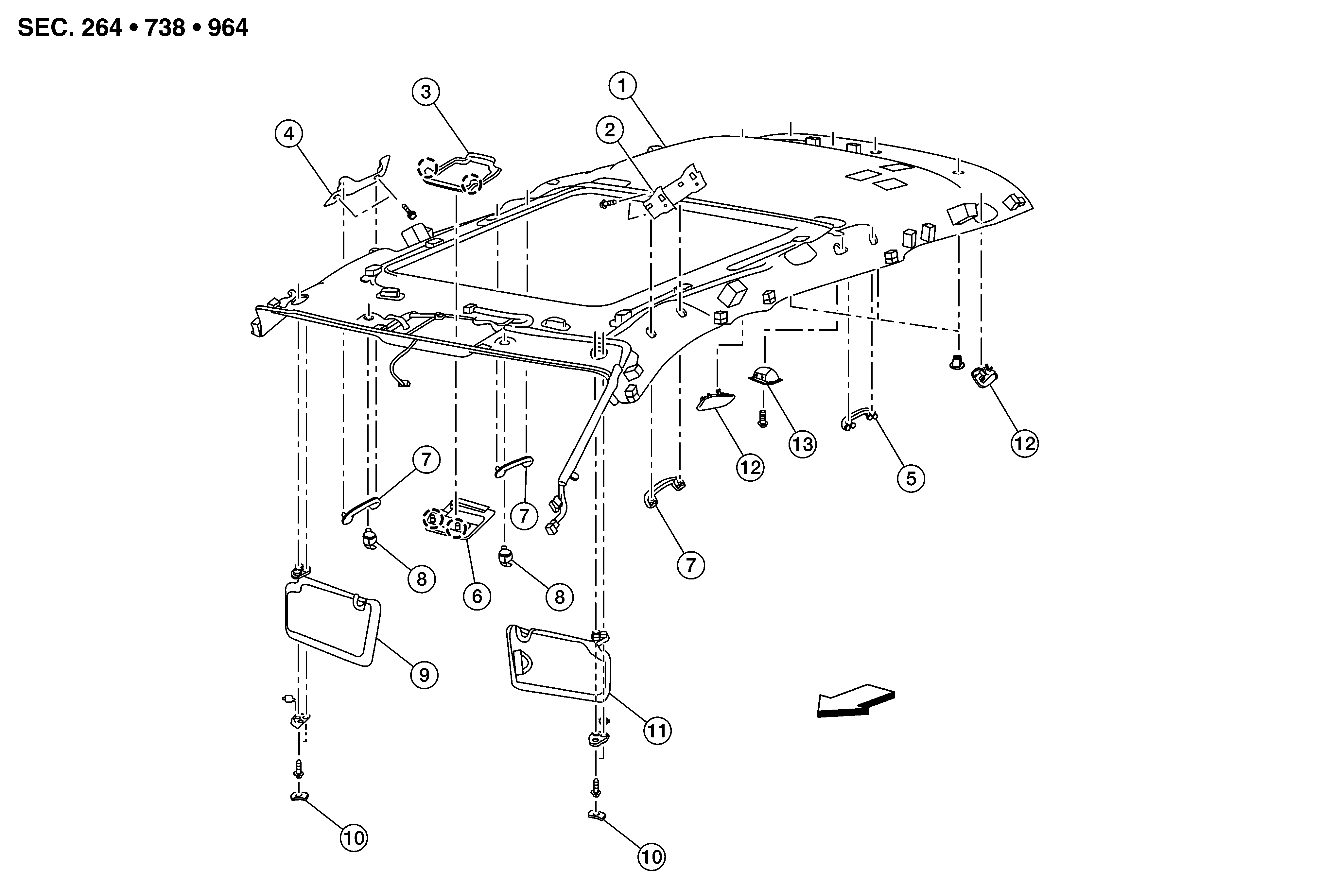

WITH MOONROOF
| 1. | Headlining | 2. | Front assist grip bracket (LH) | 3. | Map lamp assembly bracket |
| 4. | Front assist grip bracket (RH) | 5. | Assist grip (with coat hanger) | 6. | Map lamp assembly |
| 7. | Assist grip (without coat hanger) | 8. | Sun visor holder (LH/RH) | 9. | Sun visor (RH) |
| 10. | Sun visor cover (LH/RH) | 11. | Sun visor (LH) | 12. | Headlining cover |
| 13. | Top tether strap child restraint finisher | Front | Pawl |
