Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

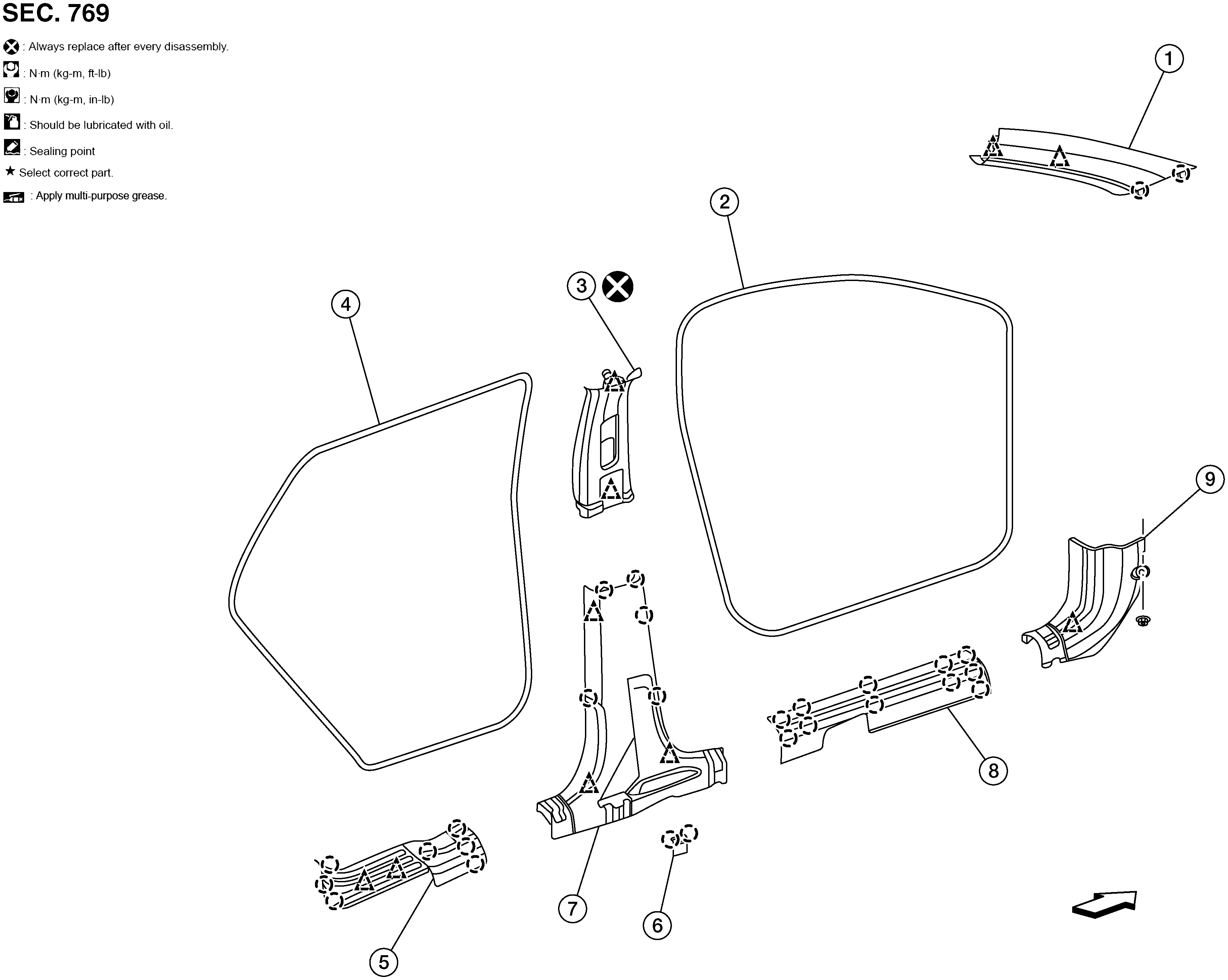

Fig 1: Exploded View Of Body Side Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front pillar finisher	2.	Front body side welt	3.	Center pillar upper finisher
4.	Rear body side welt	5.	Rear kicking plate	6.	Seat belt cover
7.	Center pillar lower finisher	8.	Front kicking plate	9.	Dash side finisher
	Pawl		Clip		Front
