Exploded View With Torque Specifications

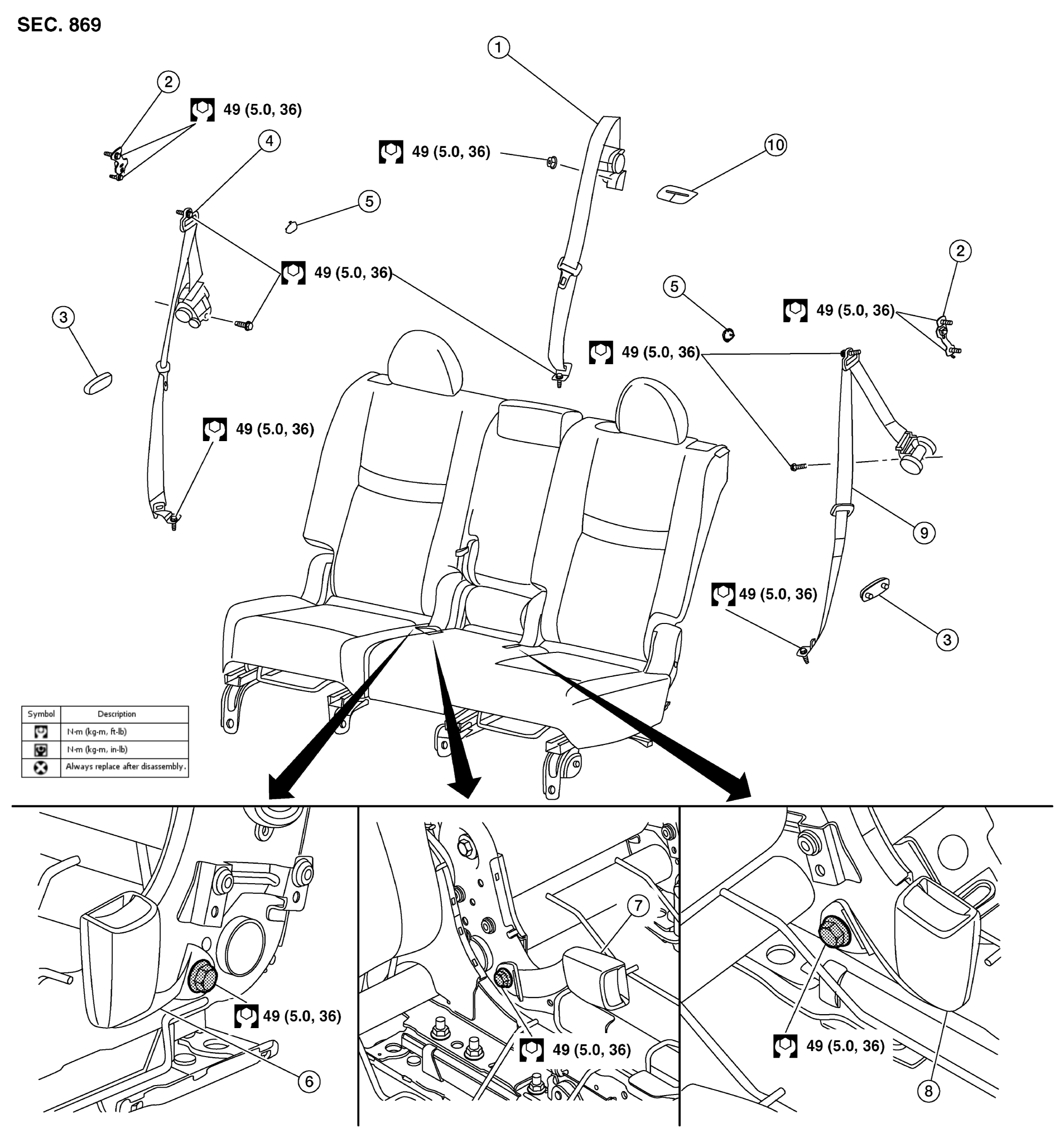

Fig 1: Exploded View Of Second Row Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor (center)	2.	Seat belt D-ring bracket (LH/RH)	3.	Seat belt hook (LH/RH)
4.	Seat belt retractor (RH)	5.	Seat belt D-ring bolt cover (LH/RH)	6.	Seat belt buckle (RH)
7.	Seat belt buckle (center)	8.	Seat belt buckle (LH)	9.	Seat belt retractor (LH)
10.	Seat belt center retractor outer finisher
