Transfer Cover: Disassembly

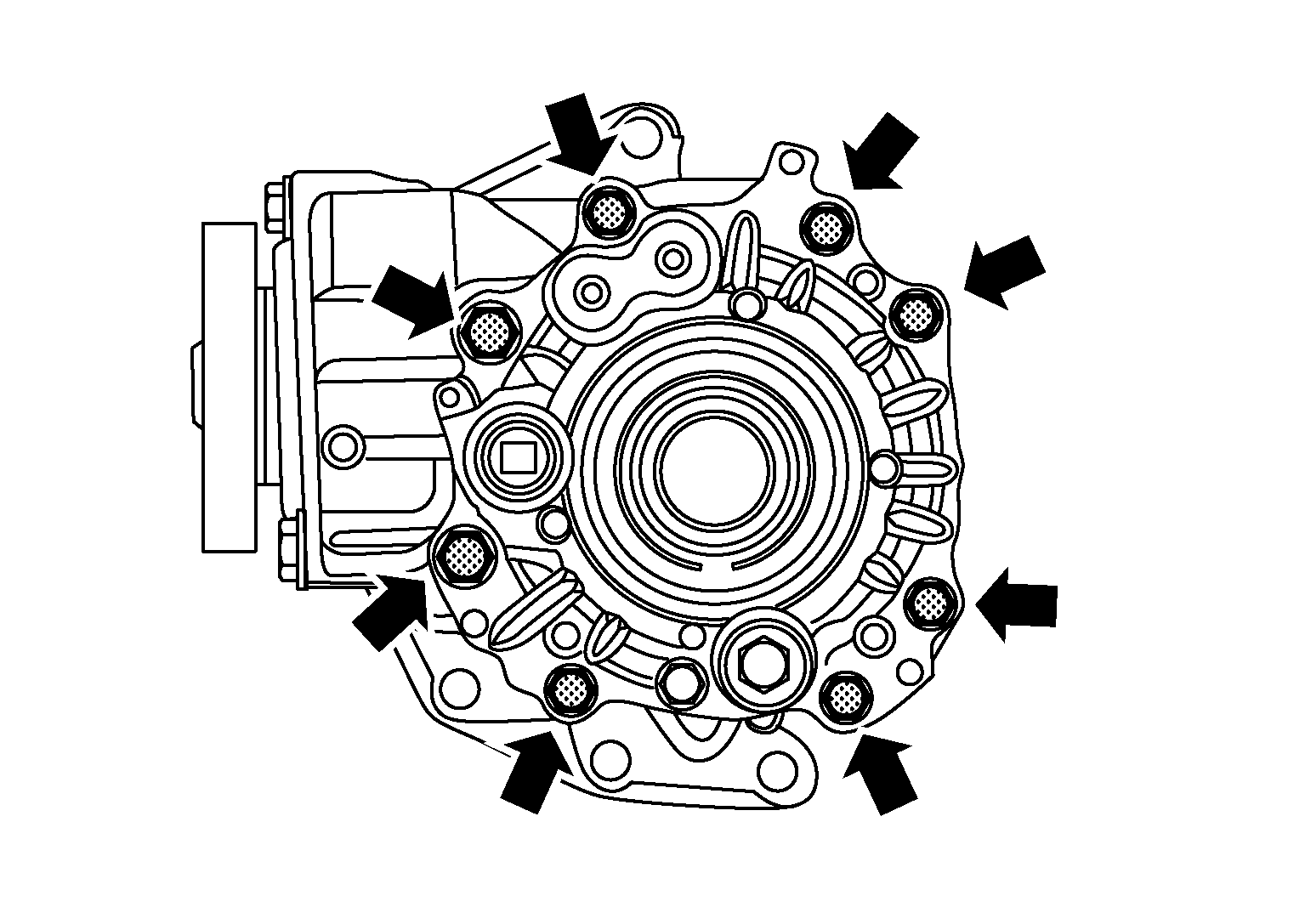

Remove transfer cover mounting bolts ( ).

Fig 1: Locating Transfer Cover Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

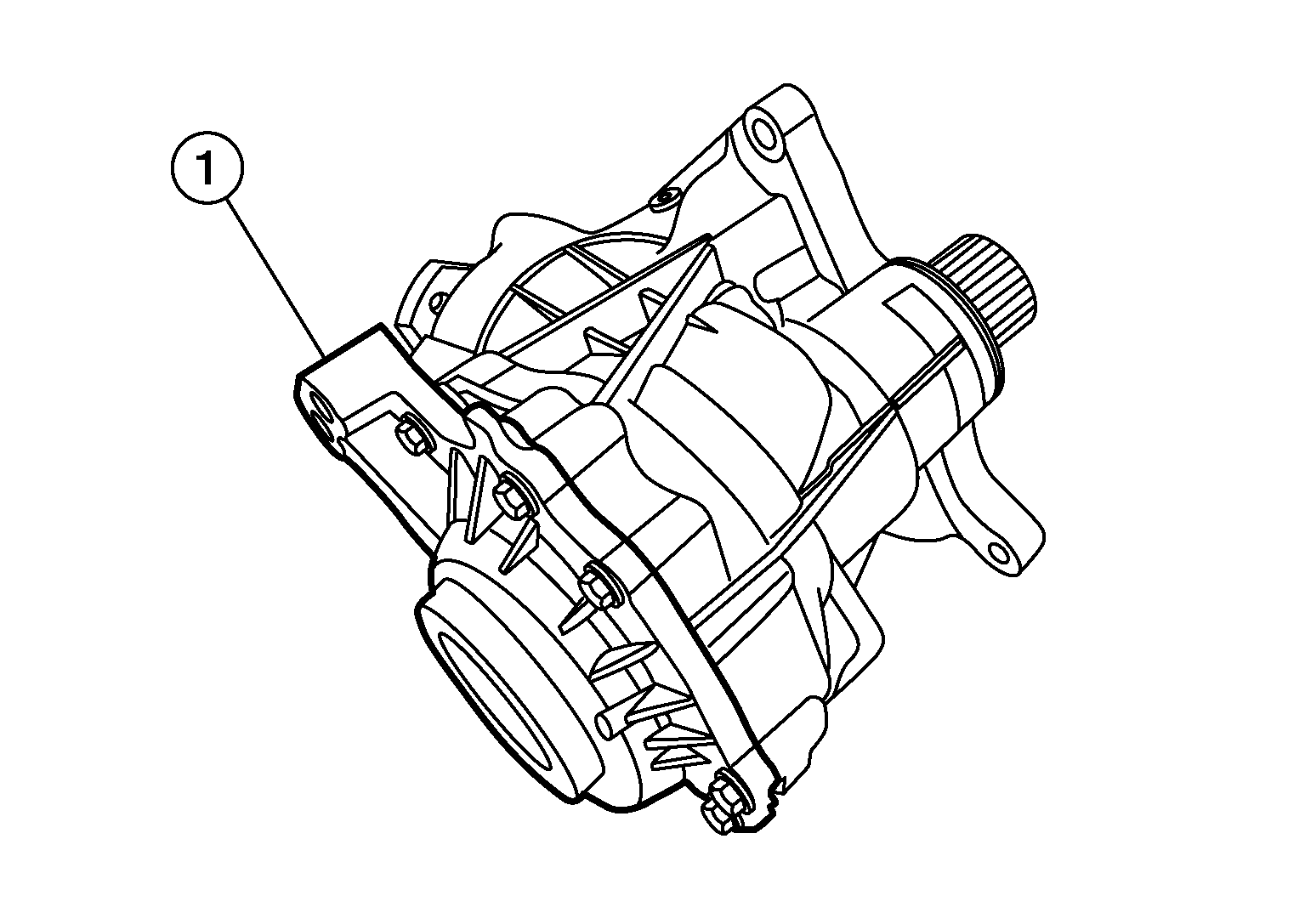

Lightly tap transfer cover (1) with a plastic hammer to remove transfer cover.

Fig 2: Identifying Transfer Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring from transfer cover.
CAUTION:
- Do not use a suitable tool.
- Do not damage transfer cover.
Lightly tap the metal part of oil seals (1) with punch from back side of transfer cover to remove oil seals.

Fig 3: Identifying Oil Seals
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
When removing, Do not damage the transfer cover by scooping it out with a suitable tool.
Remove the ring gear bearing adjusting shim (transfer cover side) (1) and ring gear bearing outer race (transfer cover side) (2) using suitable tool.

Fig 4: Identifying Ring Gear Bearing Adjusting Shim And Outer Race
Courtesy of NISSAN NORTH AMERICA, INC.
Remove drain plug and gasket.
Remove filler plug and gasket.
Perform inspection after disassembly. Refer to INSPECTION .
