Exploded View With Torque Specifications

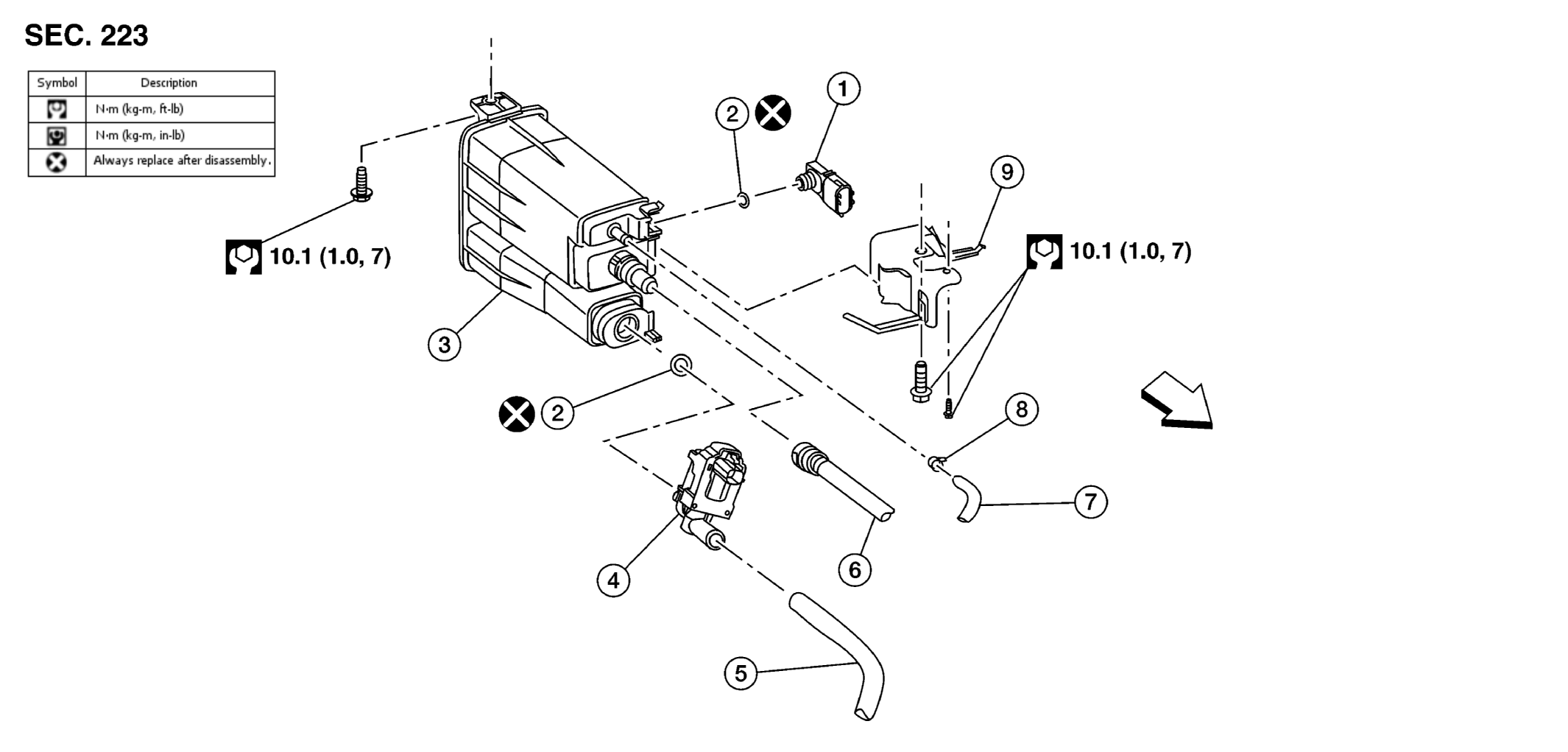

Fig 1: Exploded View Of EVAP Control System Pressure Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	O-ring	3.	EVAP canister
4.	EVAP canister vent control valve	5.	EVAP canister vent control valve hose	6.	EVAP vent line
7.	EVAP canister purge hose	8.	Clamp	9.	EVAP canister protector
	Front
