Engine Control System: Wiring Diagram

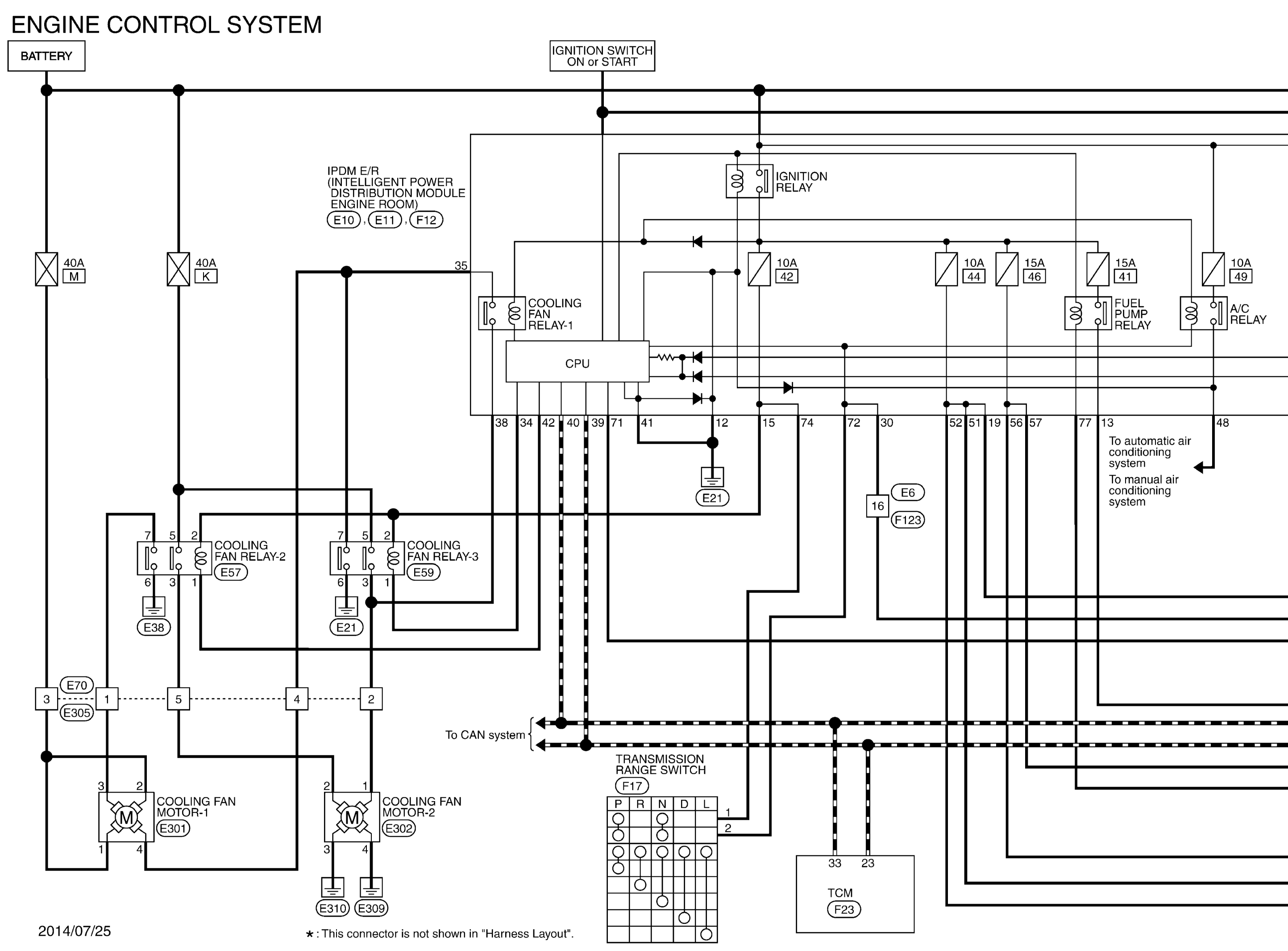

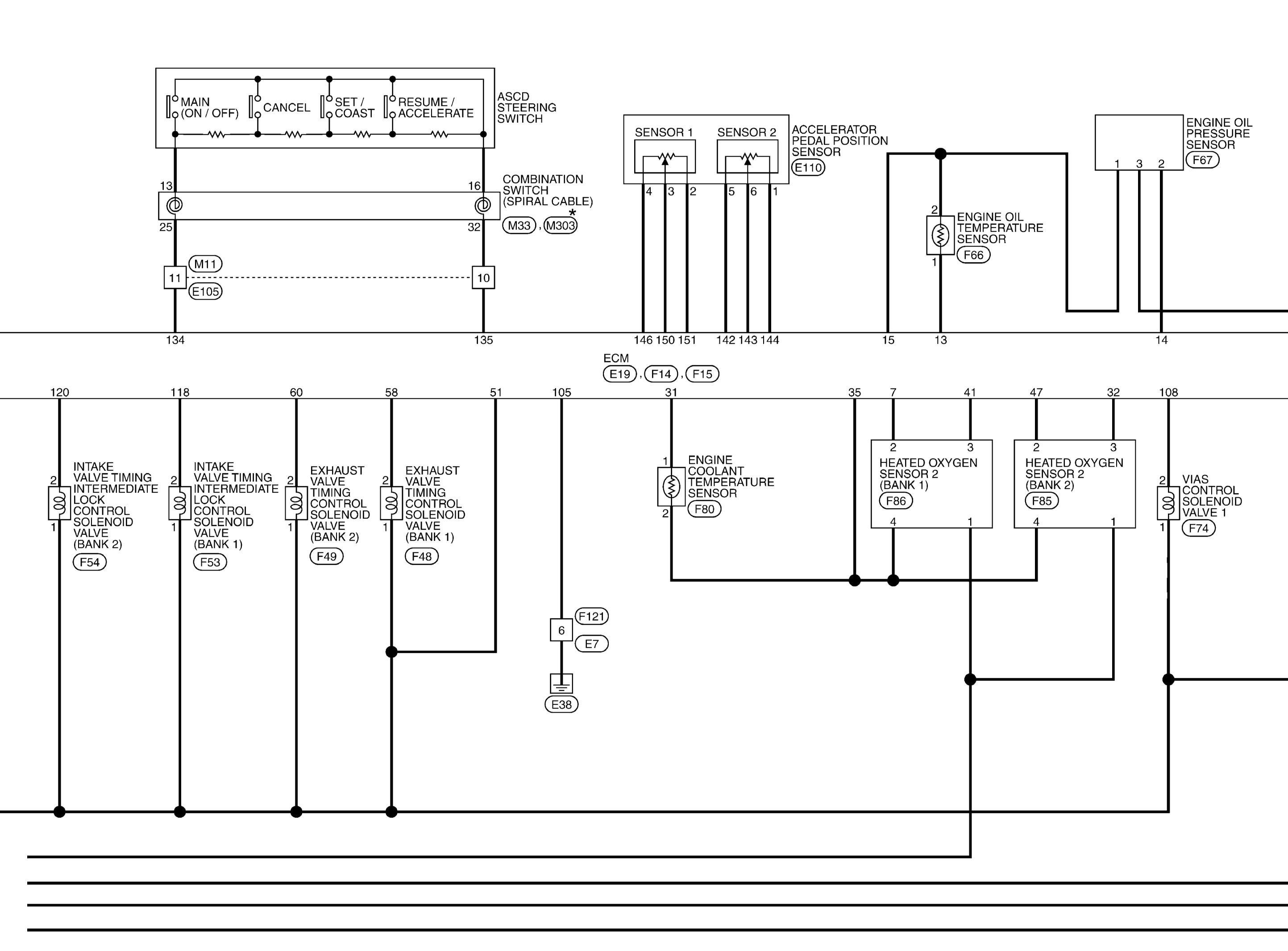

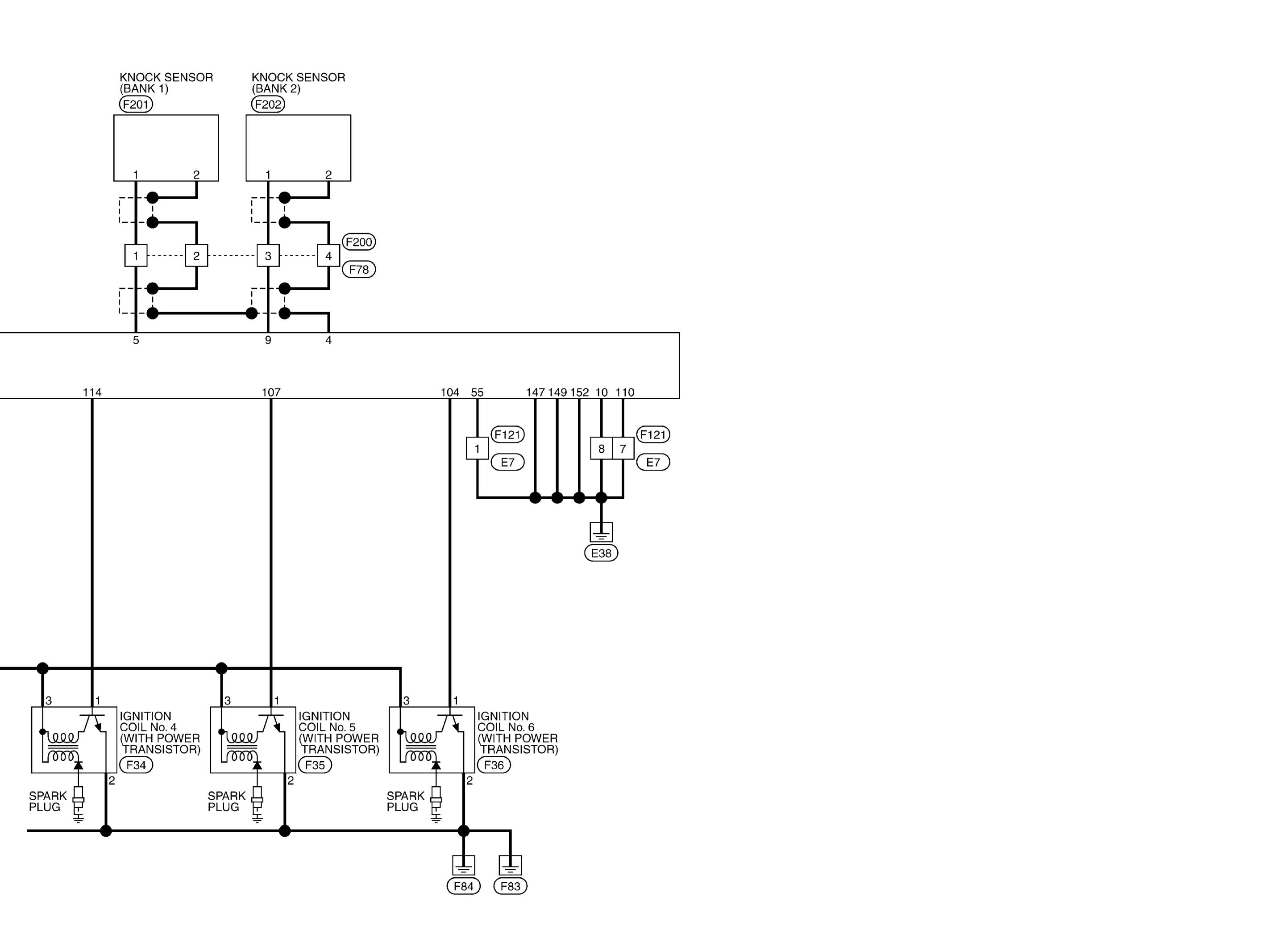

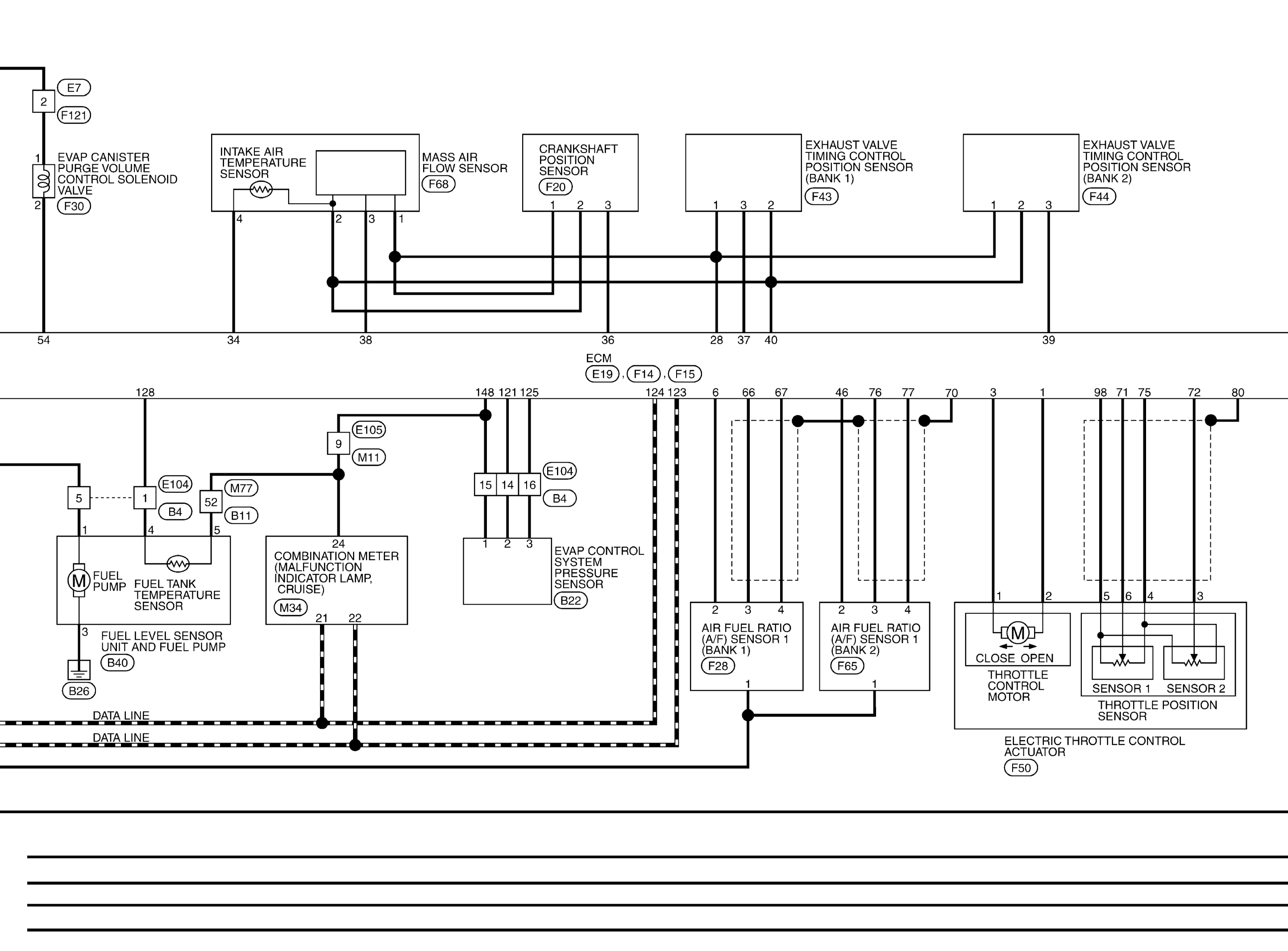

Fig 1: Engine Control System Wiring Diagram (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

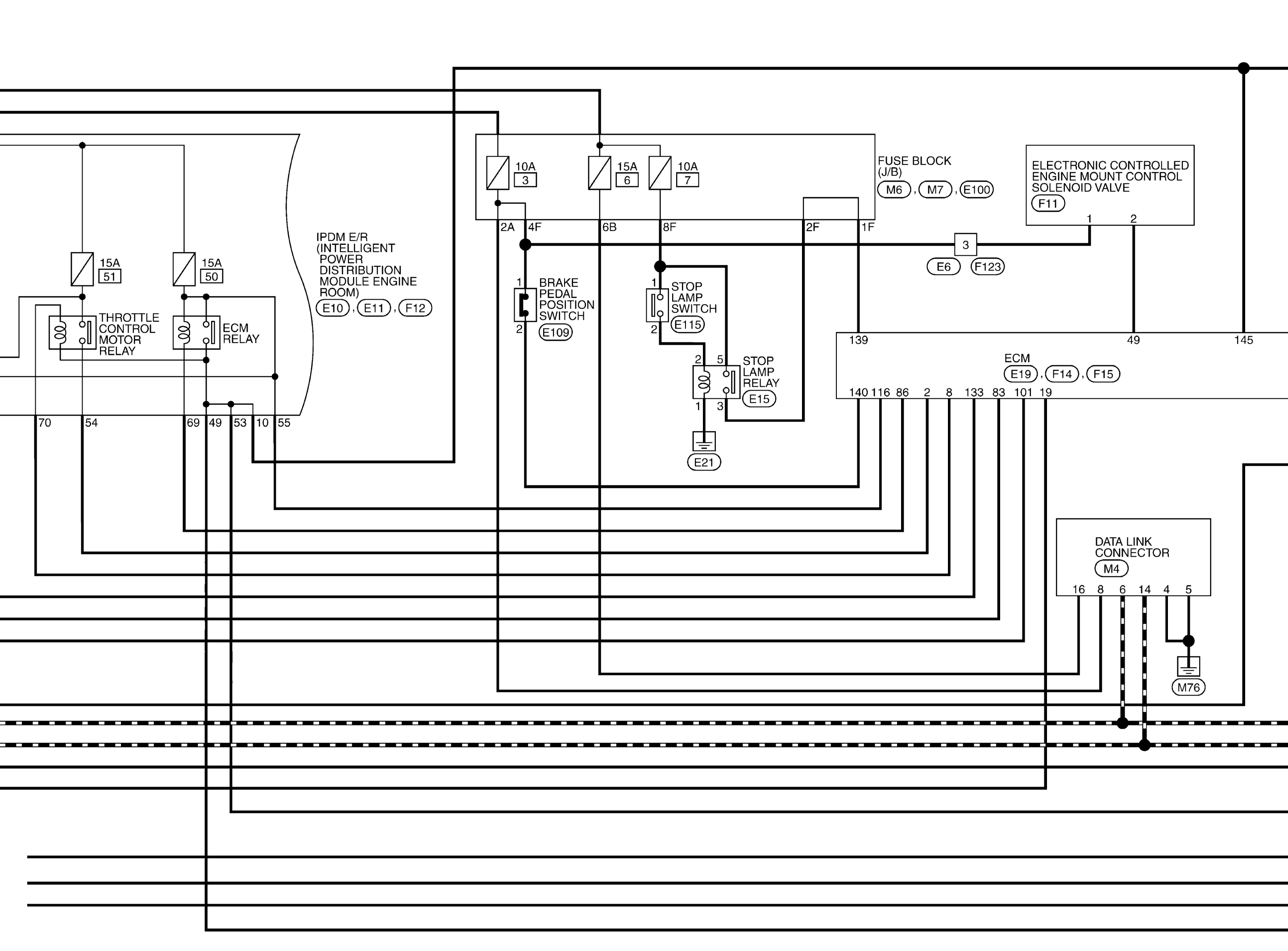

Fig 2: Engine Control System Wiring Diagram (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Wiring Diagram (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Engine Control System Wiring Diagram (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

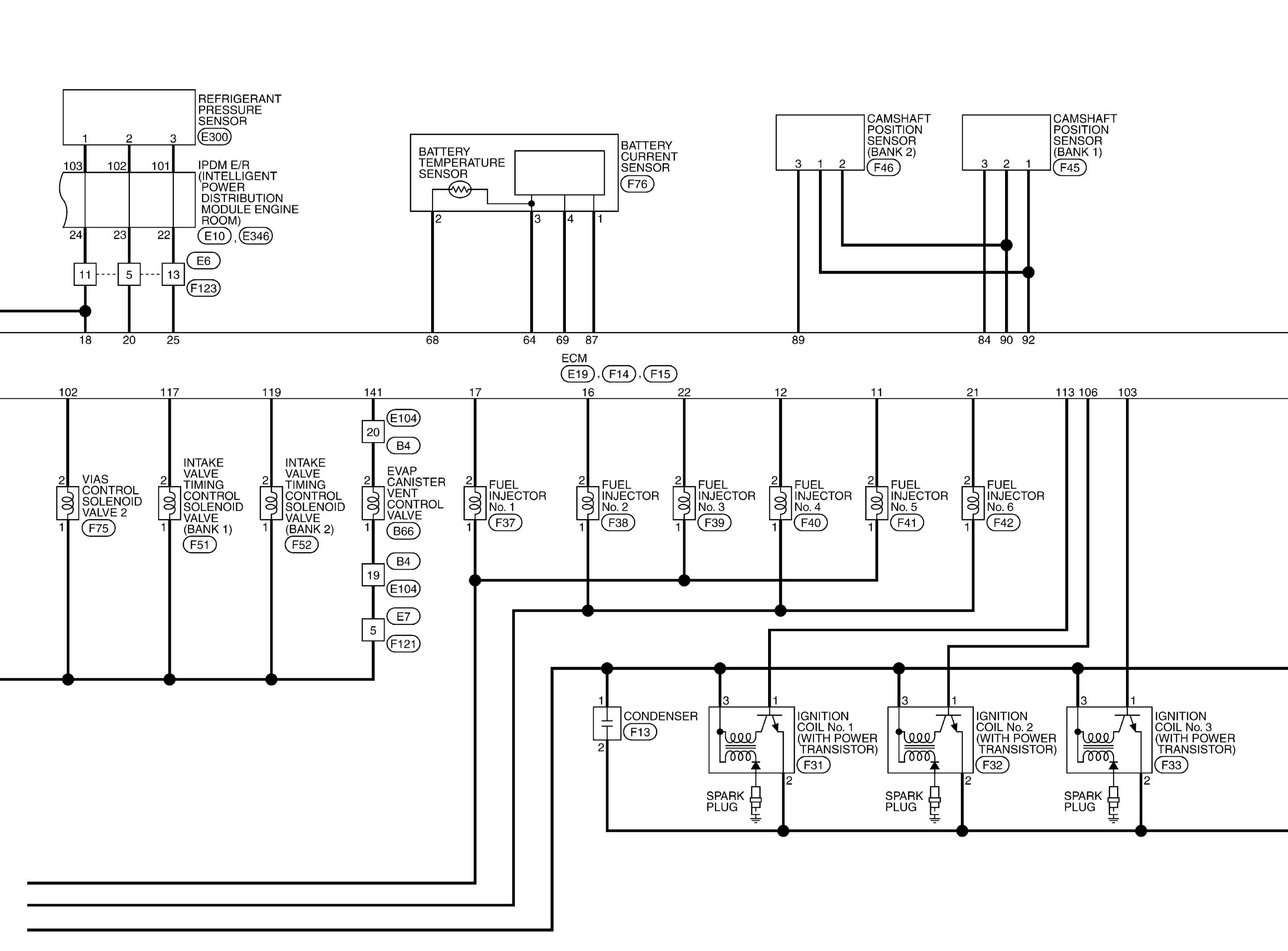

Fig 5: Engine Control System Wiring Diagram (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Engine Control System Wiring Diagram (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

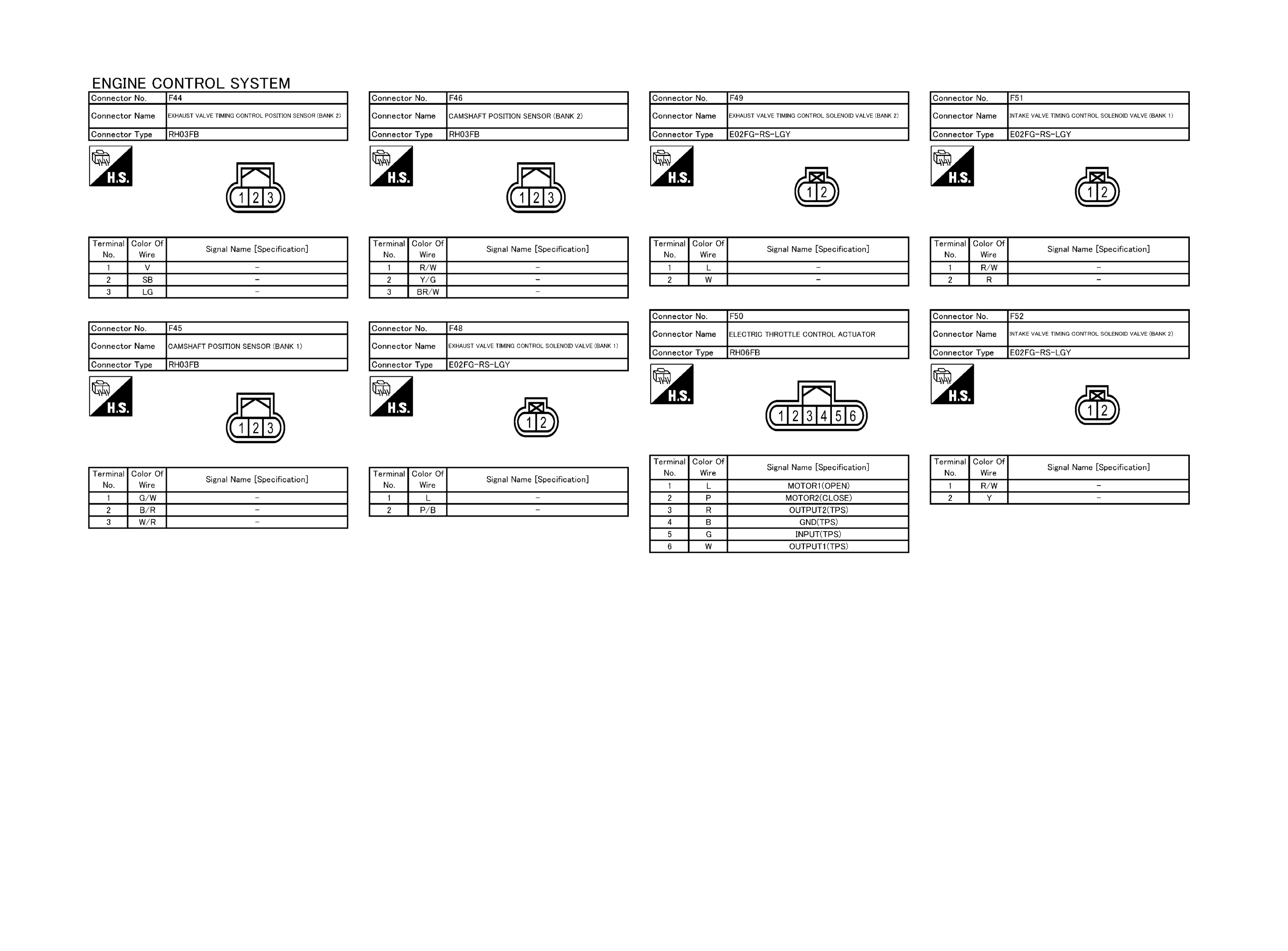

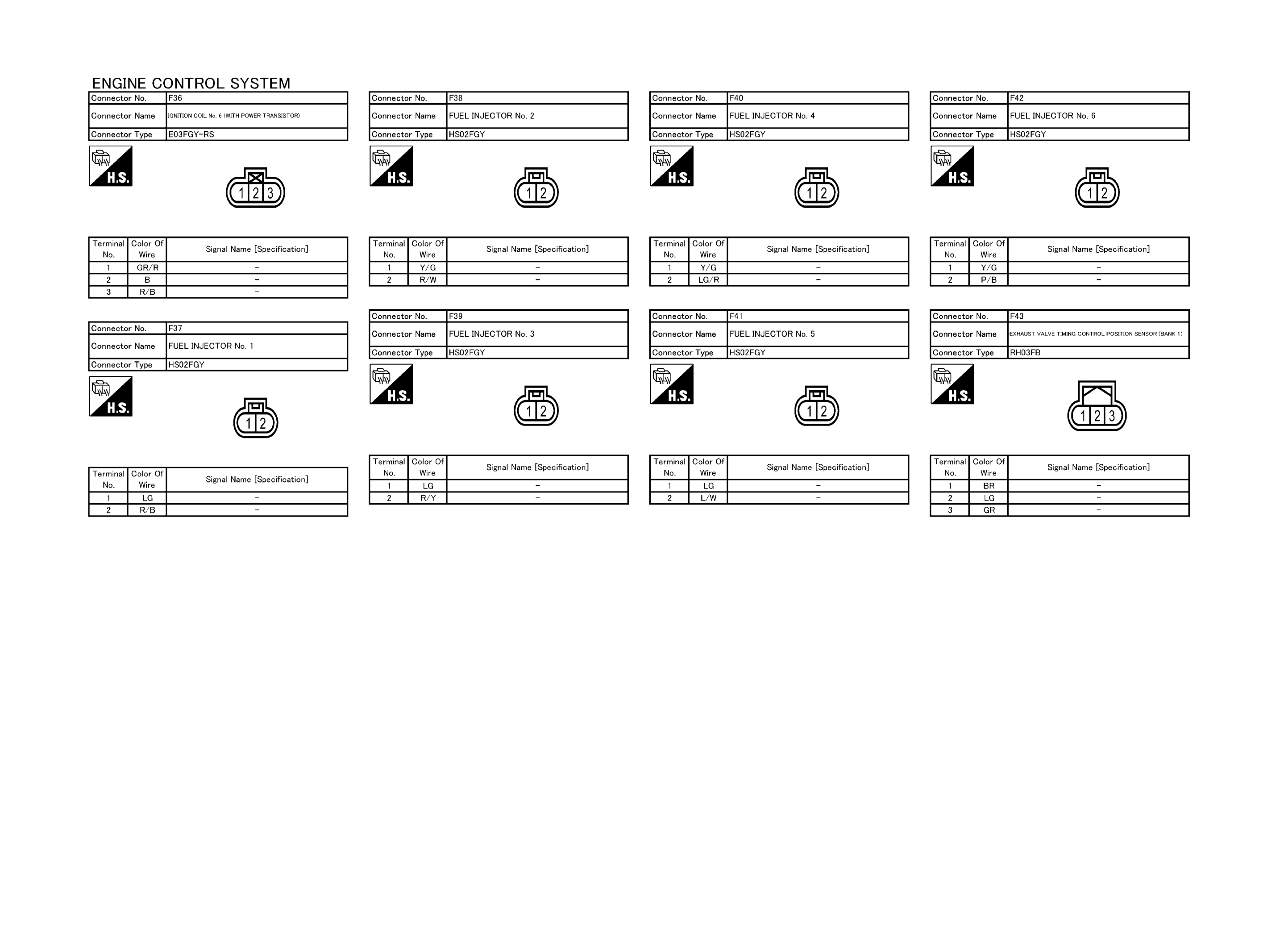

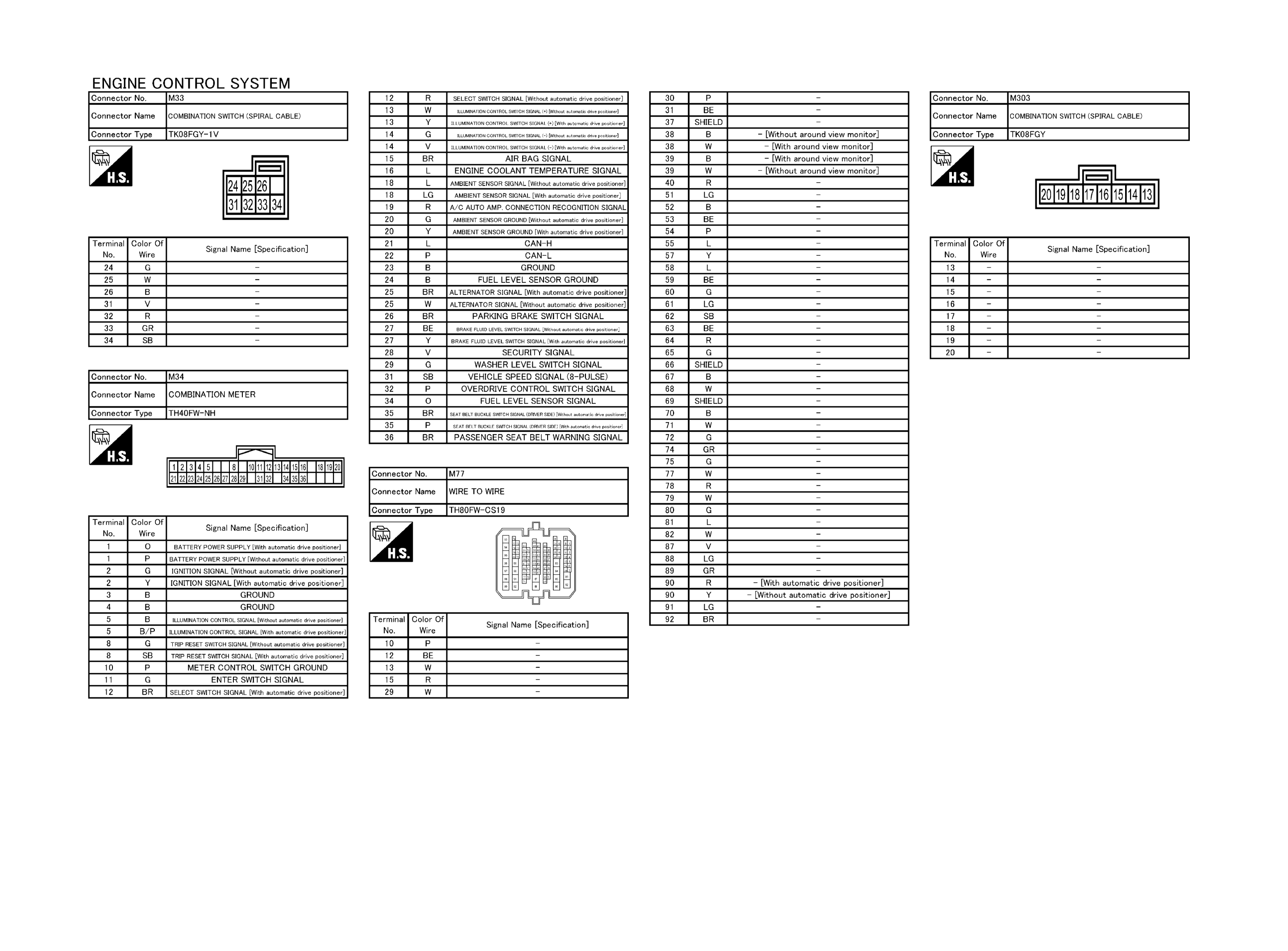

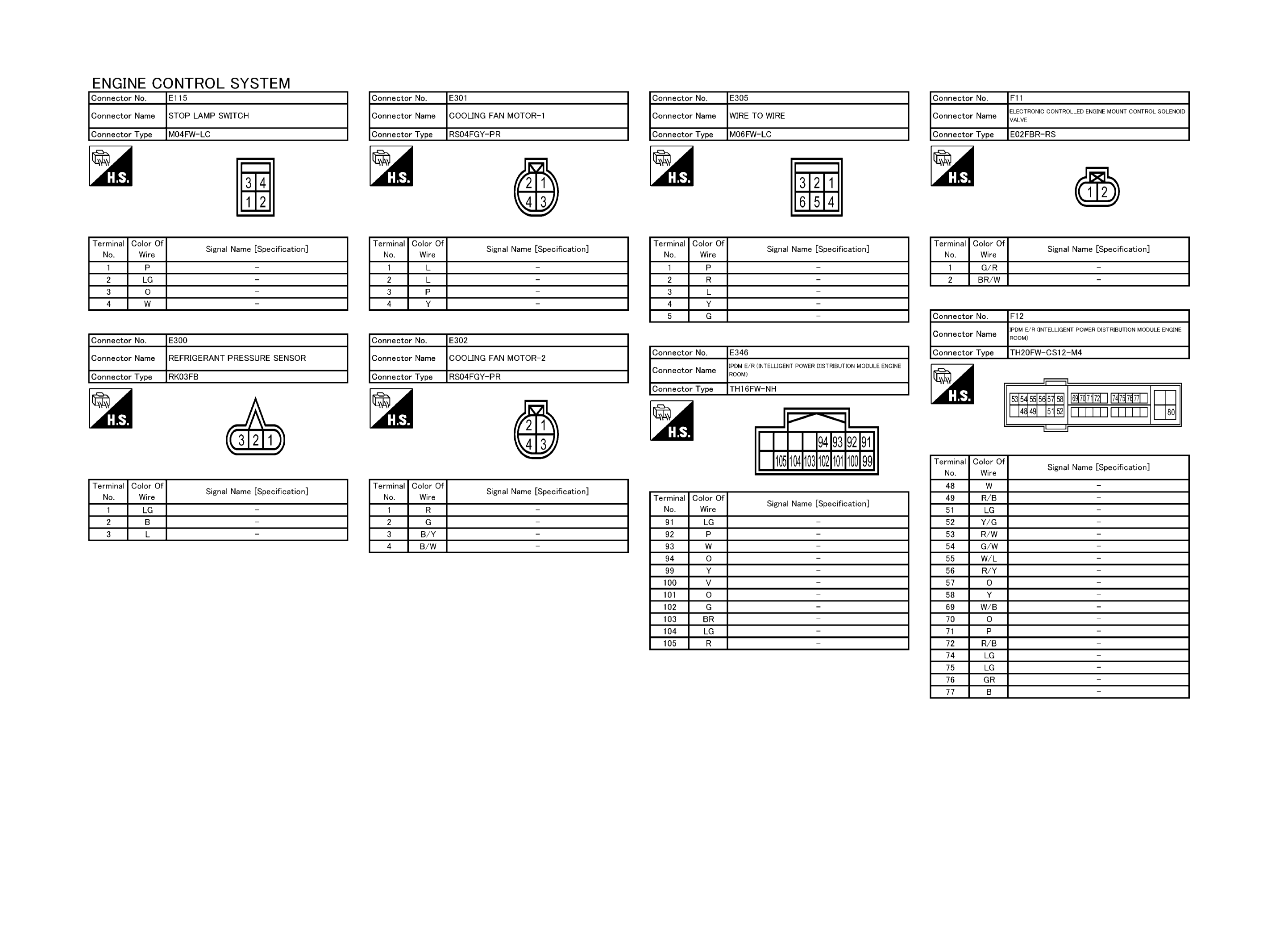

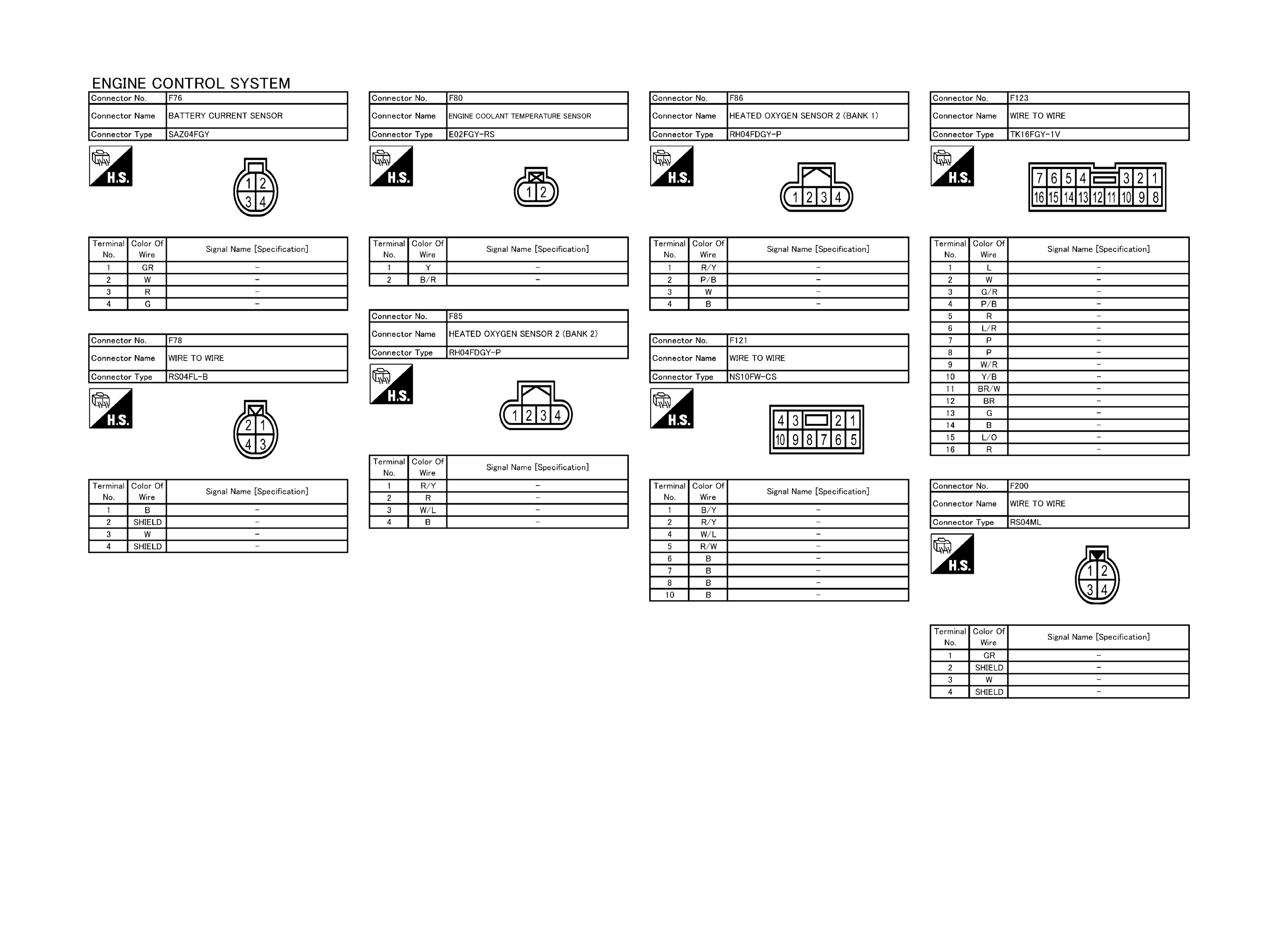

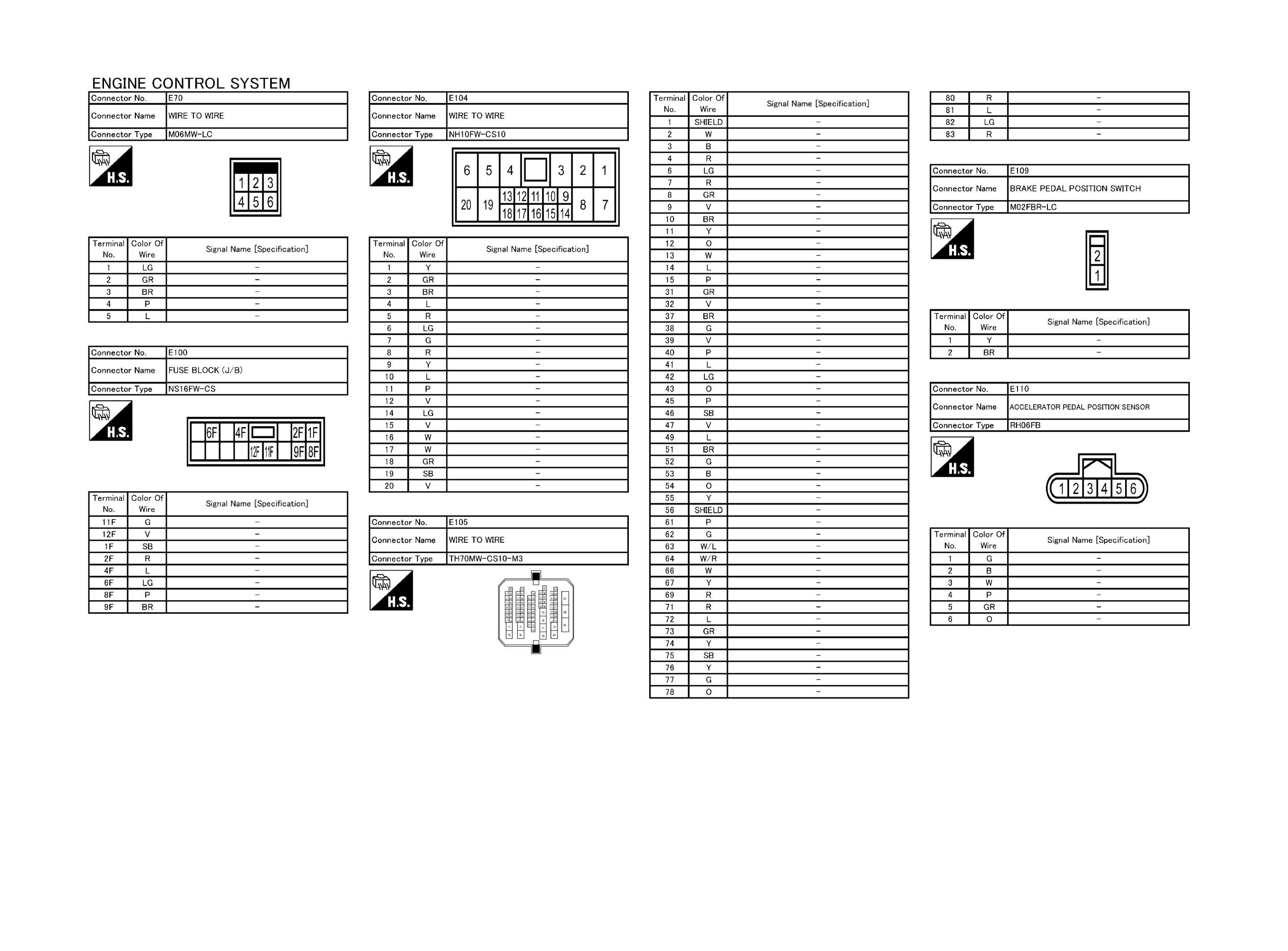

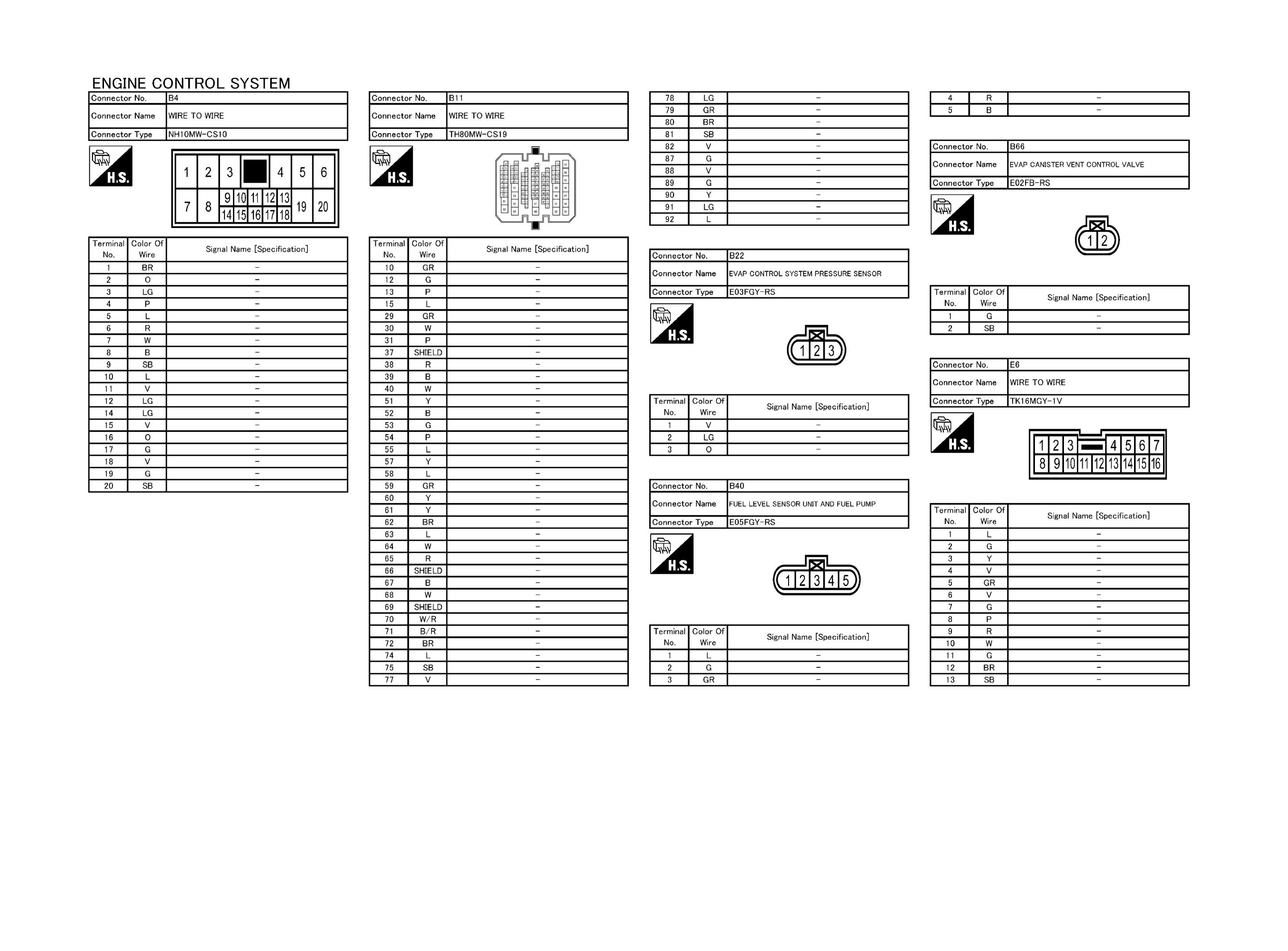

Fig 7: Engine Control System Connector End Views (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

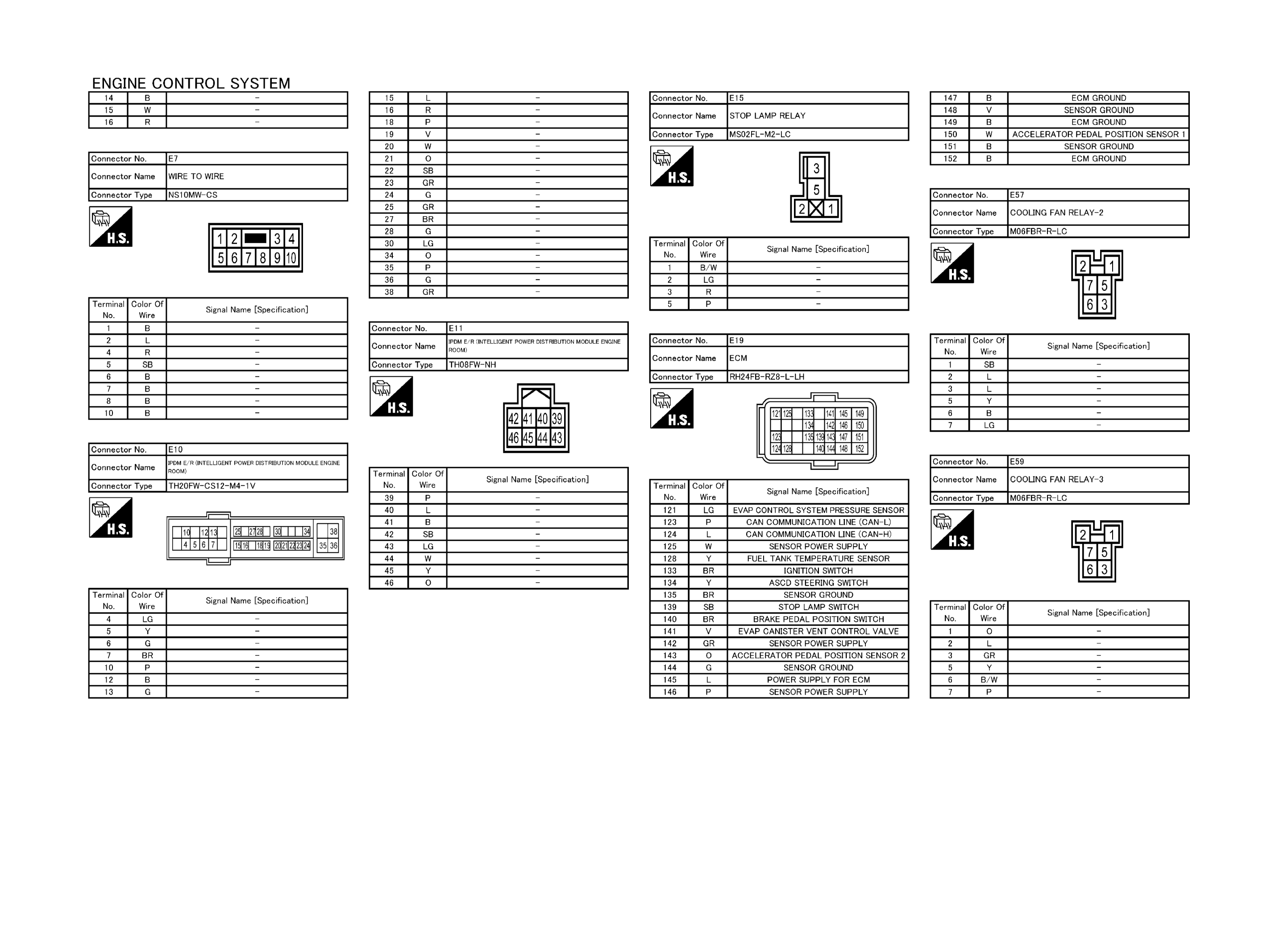

Fig 8: Engine Control System Connector End Views (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Connector End Views (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Connector End Views (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

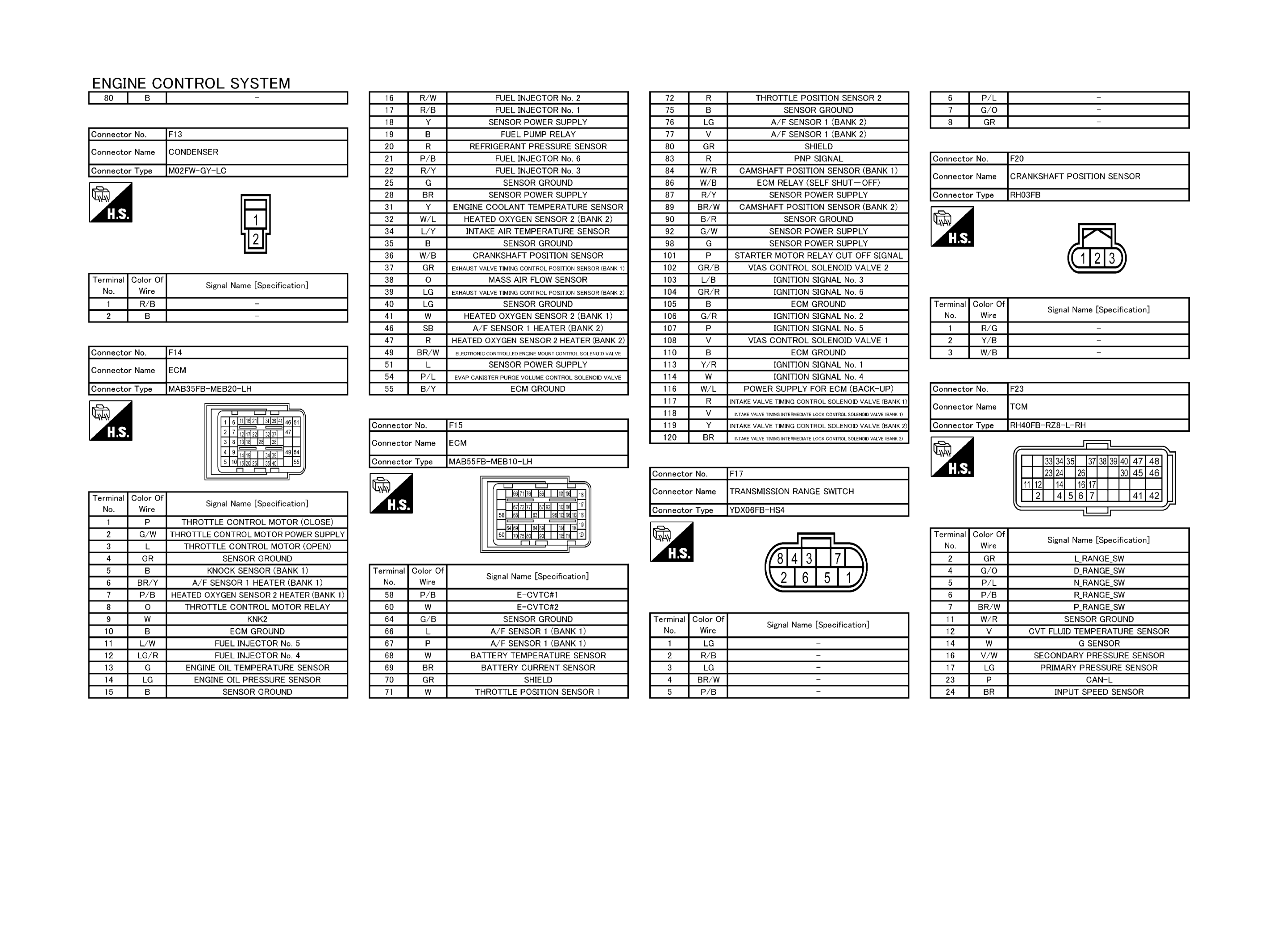

Fig 11: Engine Control System Connector End Views (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

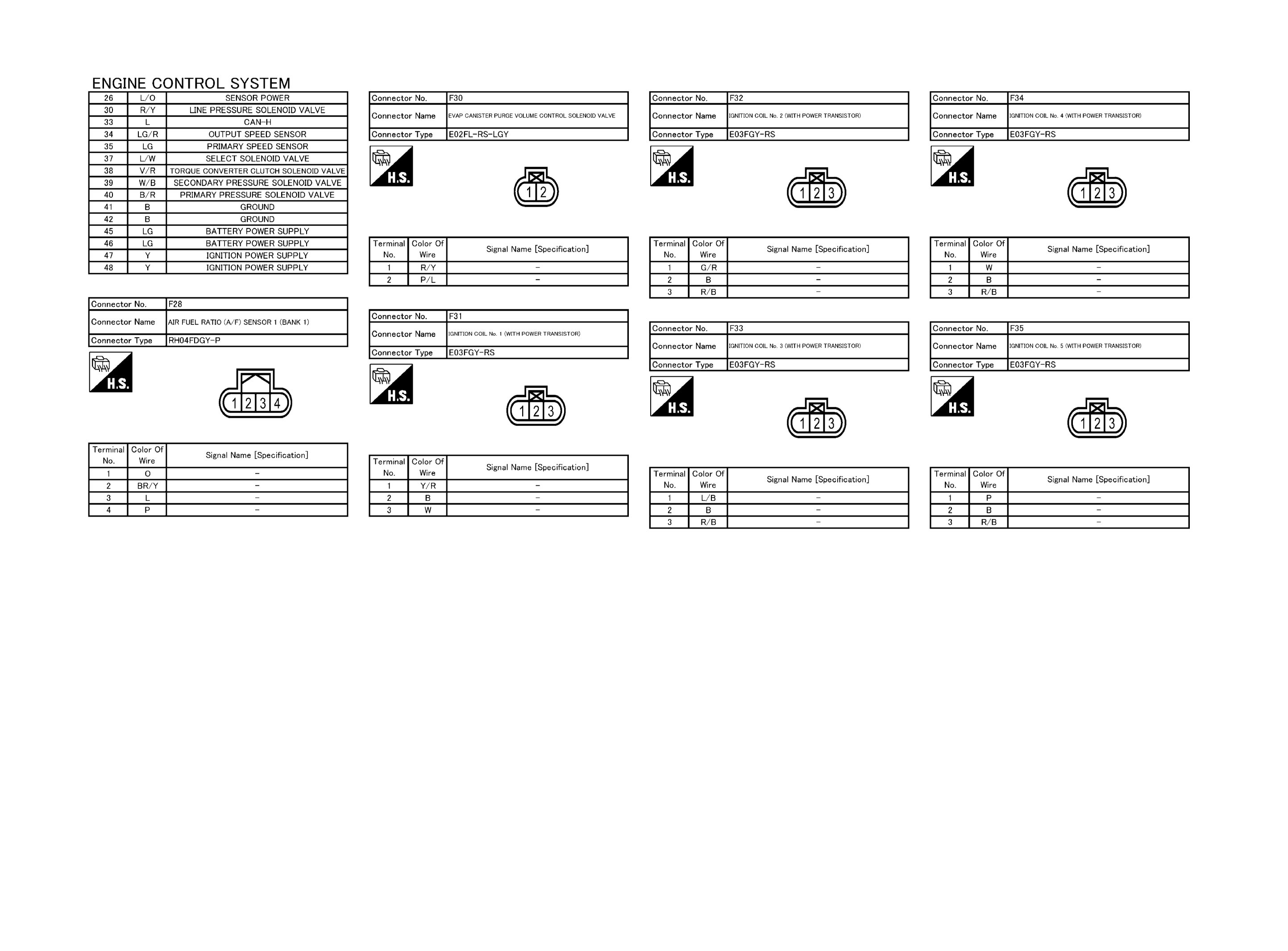

Fig 12: Engine Control System Connector End Views (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Connector End Views (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Connector End Views (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

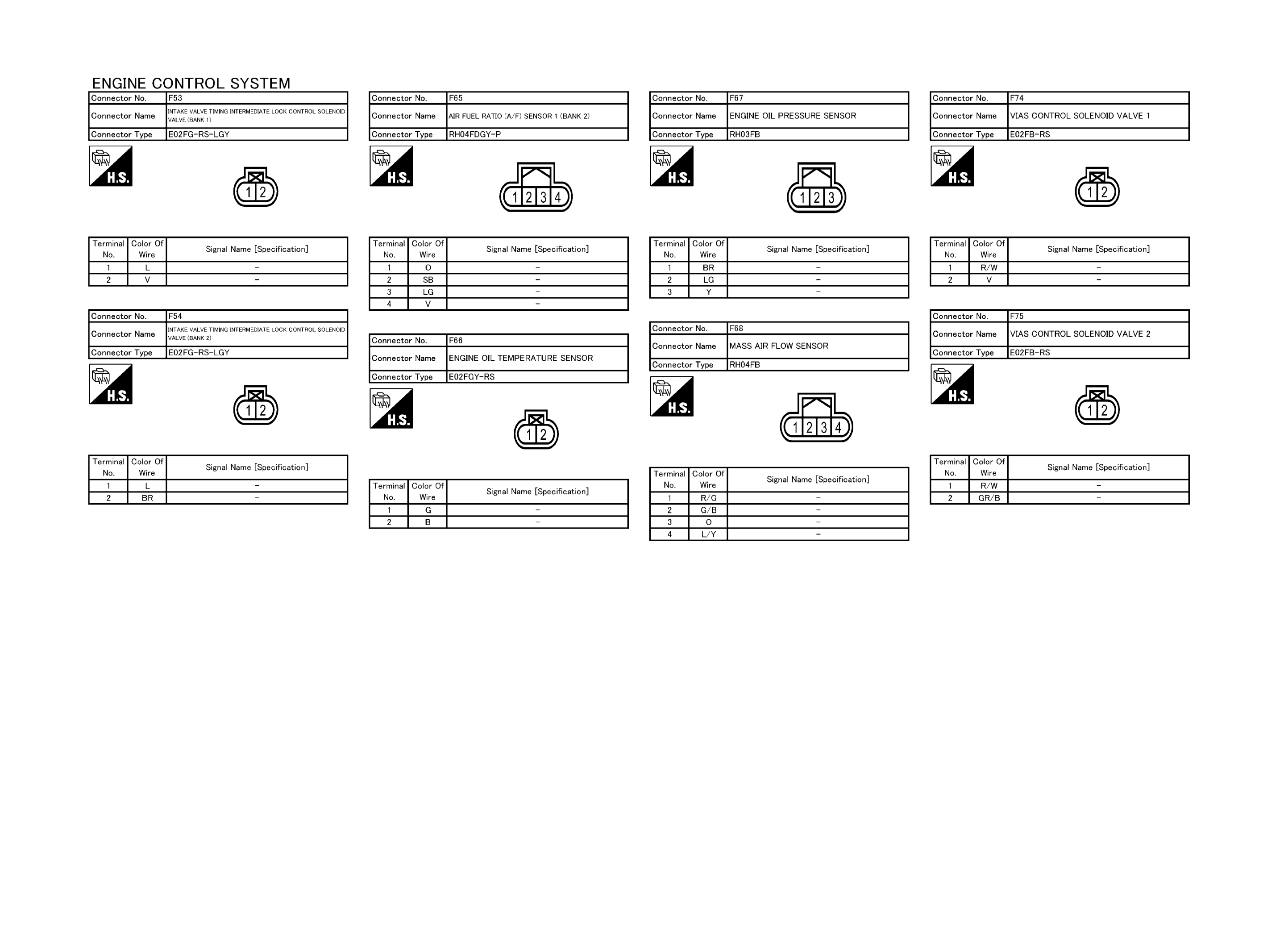

Fig 15: Engine Control System Connector End Views (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Connector End Views (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

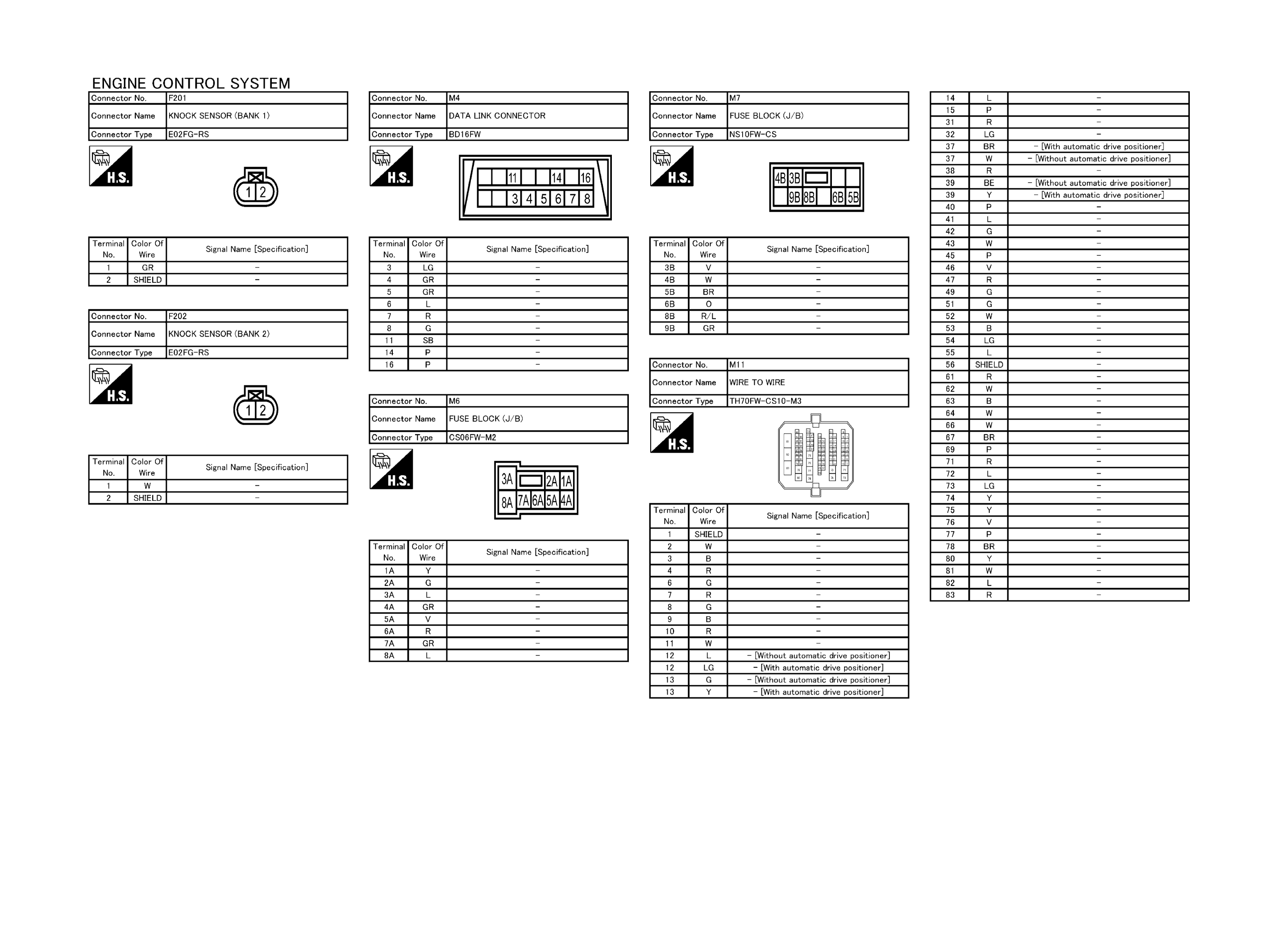

Fig 17: Engine Control System Connector End Views (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Engine Control System Connector End Views (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
