Circuit Diagram

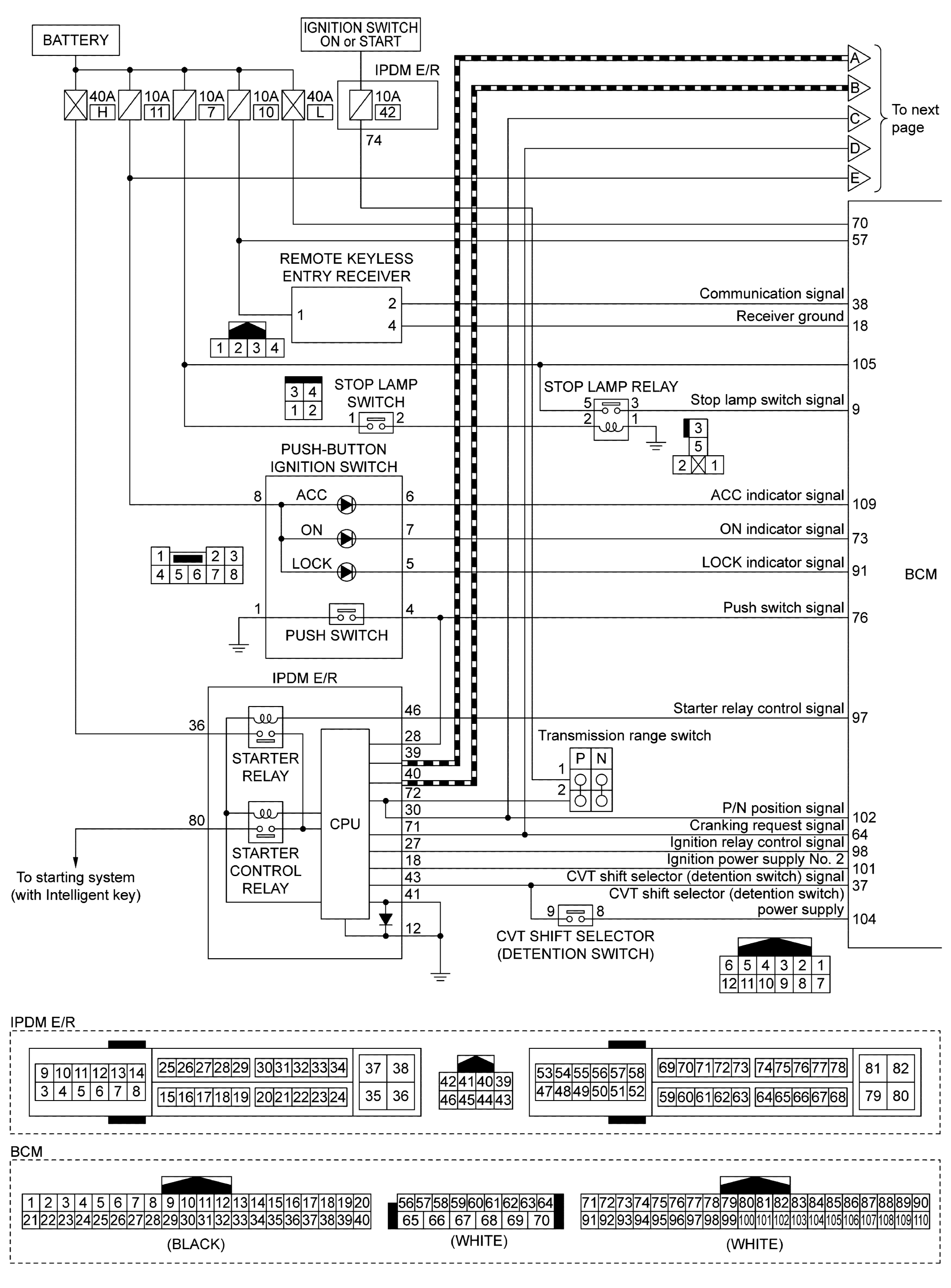

Fig 1: Intelligent Key System/Engine Start Function Circuit Diagram (1 Of 2)
GNSJMKIB4516GB-516Courtesy of NISSAN NORTH AMERICA, INC.

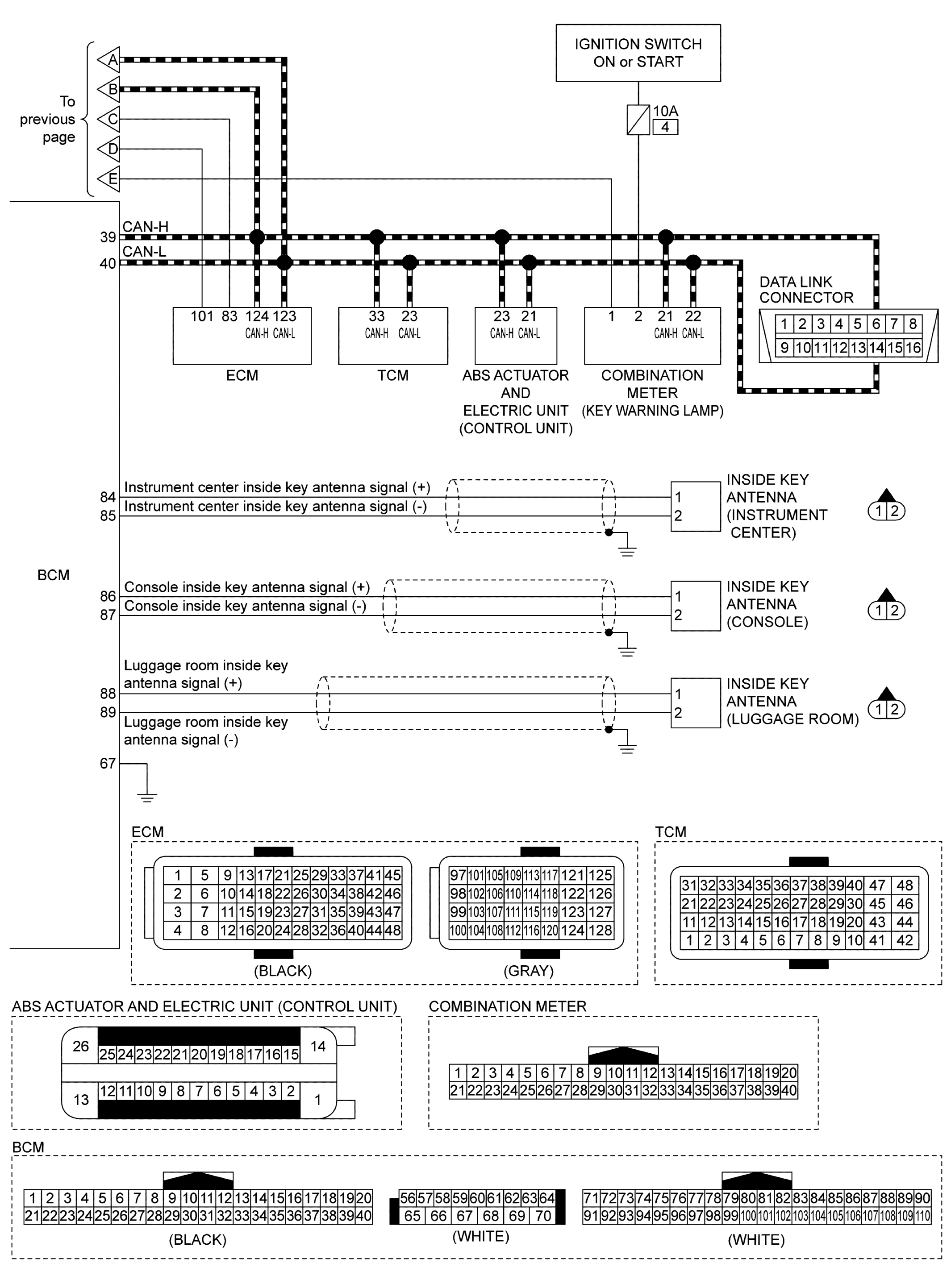

Fig 2: Intelligent Key System/Engine Start Function Circuit Diagram (2 Of 2)
GNSJMKIB4517GB-517Courtesy of NISSAN NORTH AMERICA, INC.
