Exploded View With Torque Specifications

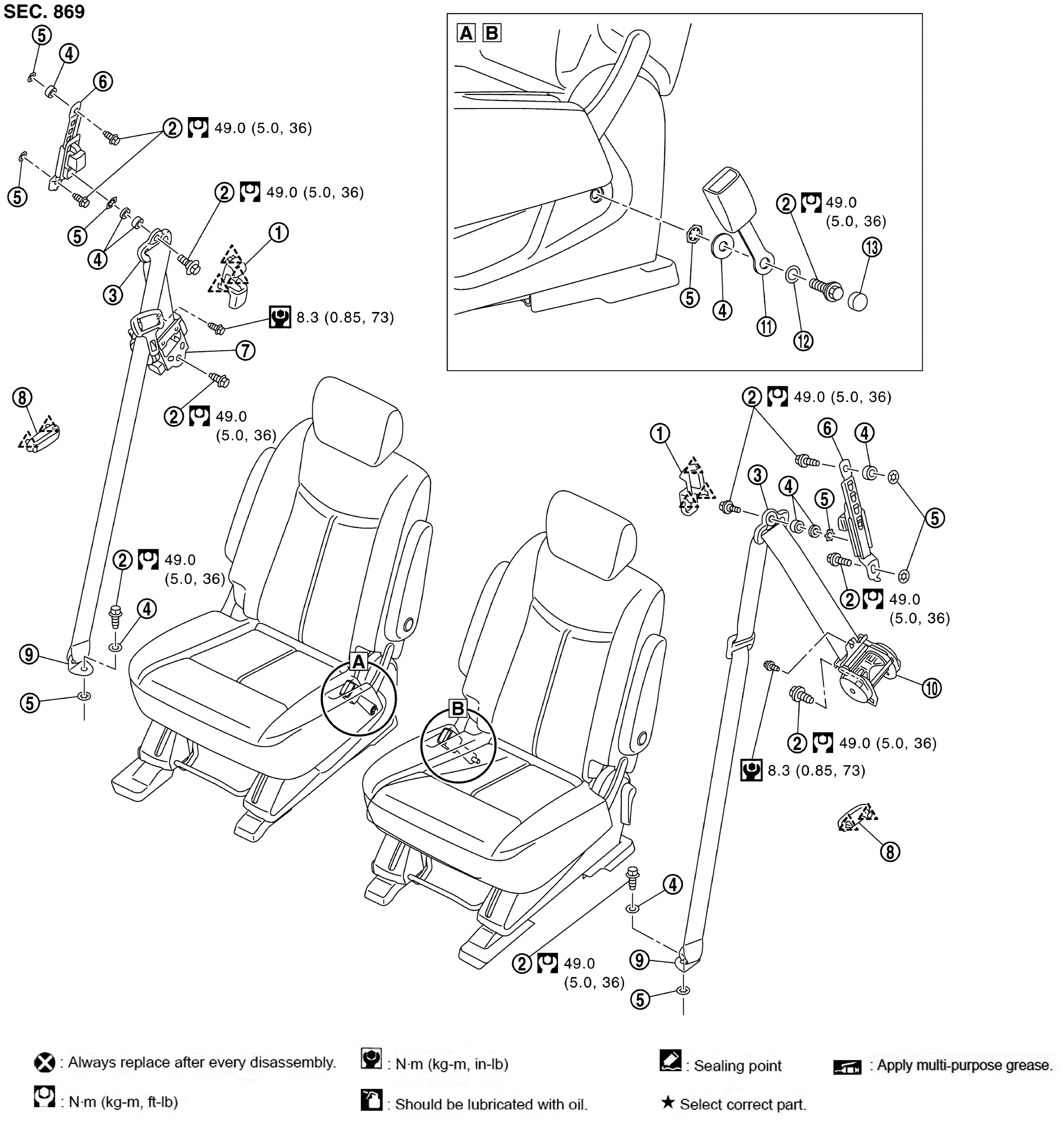

Fig 1: Exploded View Of Second Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Adjuster Cover	2.	Anchor Bolt	3.	Shoulder Anchor
4.	Spacer	5.	Retaining Washer	6.	Seat Belt Adjuster
7.	Second Seat Belt Retractor RH	8.	Seat Belt Hook	9.	Outer Anchor
10.	Second Seat Belt Retractor LH	11.	Second Seat Belt Buckle	12.	Wave Washer
13.	Anchor Bolt Cap
	: Pawl
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
